Preparing the Cabinet for Installation
1. Swing open the timing mechanism to access the internal components and
wiring access holes.

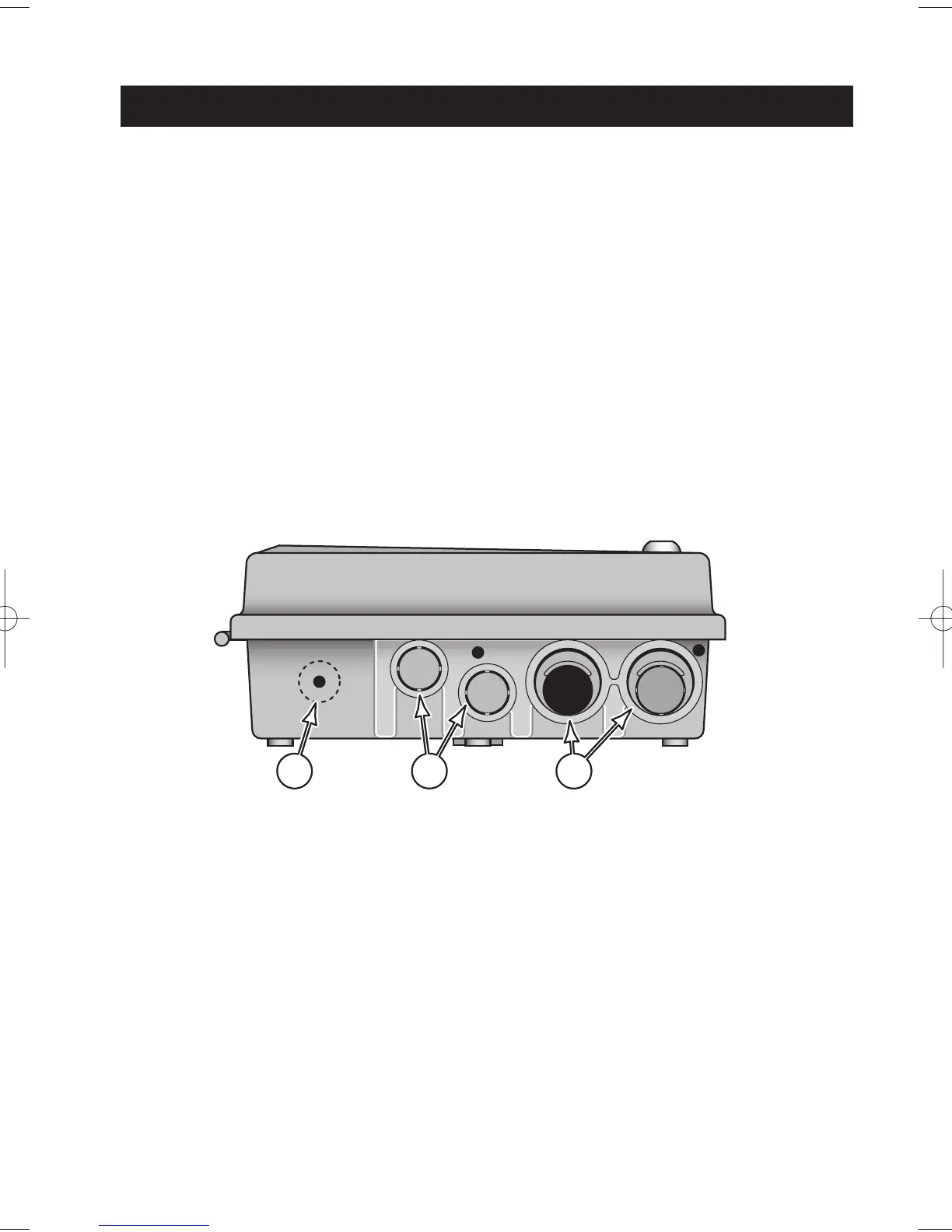

2. Five wiring access holes are provided in the bottom of the cabinet as follows:
A- 1/2" (13mm) for power and equipment ground wires (Outdoor models) or
1/4" (6mm) for transformer cable (Indoor models).
B- Two 1/2" (13mm) (plugged) for the optional wiring connections.
C- Two 3/4" or 1" (19mm or 26mm) for valve and pump relay wiring.
4. If planning to install the optional Toro components, remove the access plugs
as necessary.
Note: Conduit and adapters are not provided. Always install conduit as
required by all building and electrical codes that apply.
Installation Procedure
19
AB C
