Maintenance
34
Greasing
and Lubrication
Service Interval/Specification
Grease the machine after every 50 operating hours or
yearly, whichever occurs first. Grease more frequently
when operating conditions are extremely dusty or
sandy.
Gr
ease T
ype: General-purpose grease.
How to Grease
1. Disengage the power take off (PTO), set the
parking brake, lower the attachment lift, and turn
the ignition key to “STOP” to stop the engine.
Remove the ignition key.
2. Clean the grease fittings with a cloth. Make sure
to scrape off any paint from the front of the
fitting(s).
3. Connect a grease gun to the fitting. Pump grease
into the fittings until grease begins to ooze out of
the bearings.
4. Wipe up any excess grease.
Where to Add Grease

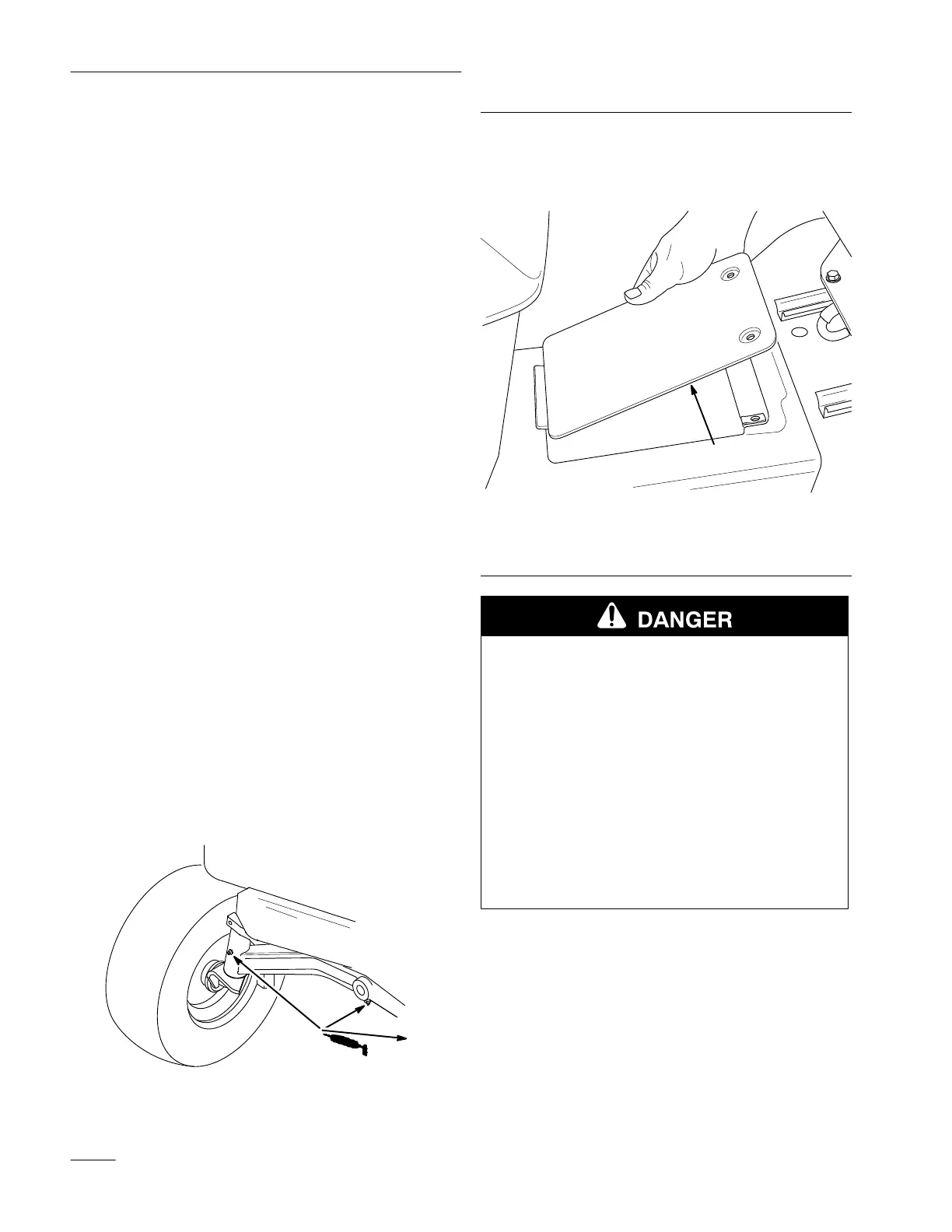

1. Lubricate the left–hand and right–hand spindles
until grease begins to ooze out of the bearings
(Fig. 31).
2. Lubricate the front axle pivot (Fig. 31).
m–3240
Figure 31
3. Open the drive shaft maintenance cover on the
tractor tunnel near the seat by unscrewing the
two screws securing it, then raising it (Fig. 32).
1
m–3422
Figure 32
1. Drive
shaft maintenance
cover
POTENTIAL
HAZARD
• Rotating shaft can cause injury.
WHAT CAN HAPPEN
• Fingers, hands, feet, hair, etc. can get
caught by shaft.
• Loose clothing can get caught by shaft.
HOW TO AV
OID THE HAZARD
• Do not operate the tractor without the drive
shaft cover in place.
• Keep hands and arms clear of rotating
shaft.
