Assembly
15
Fill
Crankcase with Oil
The rider is shipped from the factory without oil in
the crankcase.
1. Place rider on a level surface.
2. Unscrew and remove the dipstick from the oil
fill tube (Fig. 4).
3. Insert a funnel into the tube and slowly add
engine oil into the crankcase, using oil fill chart
below. Use a high quality detergent oil classified
“For Service SF, SG, SH”. Oil viscosity (weight)
must be selected according to anticipated
ambient temperature. See table below.
4.

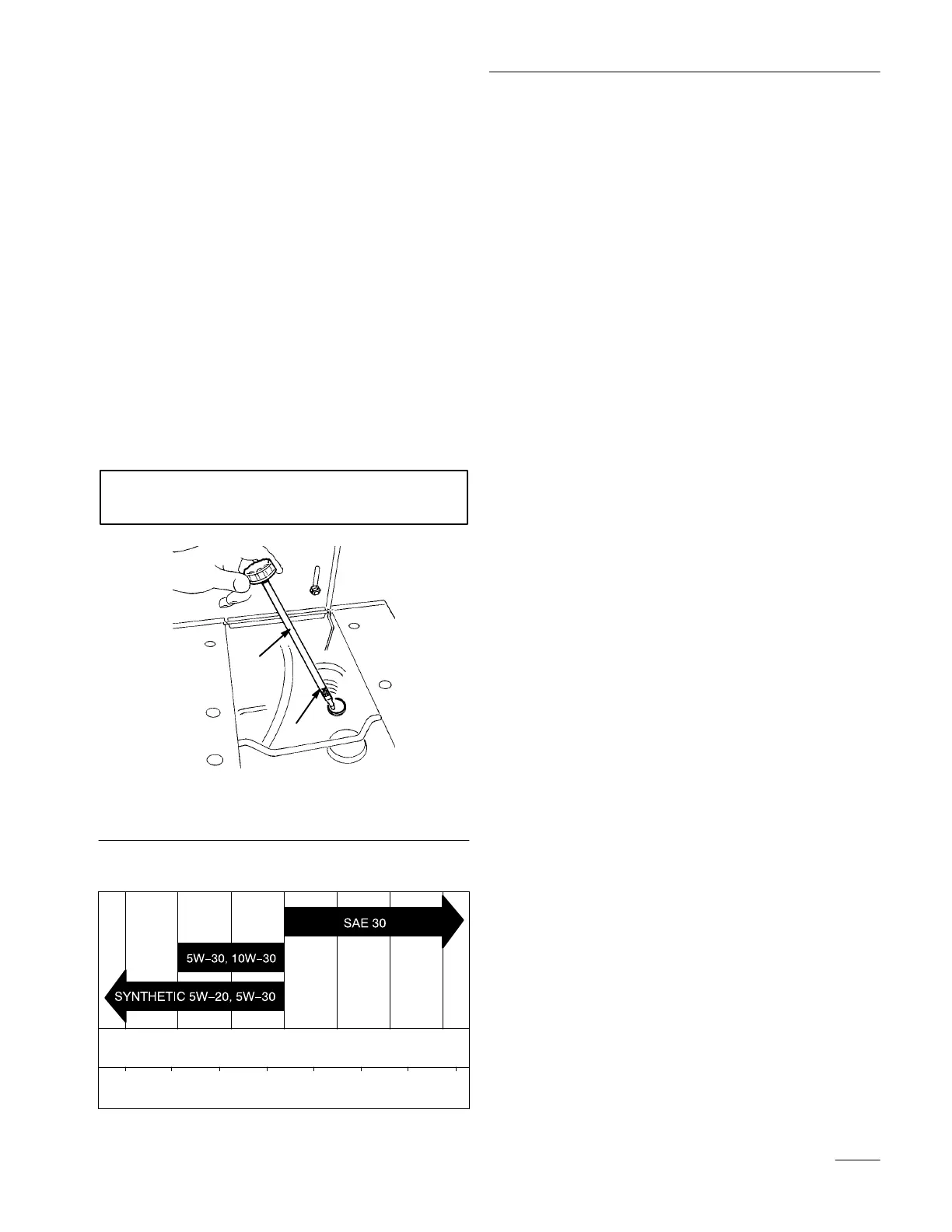

Oil Fill Chart
2
1
Figure
4
1. Dipstick 2. Full
mark
F
–20 0 20 40 60 80 100
°
C
–30
°
–20 –10 0 10 20 30 40
USE
THESE SAE VISCOSITY OILS
5. Ensure the oil level is to the full mark on the
dipstick when it is fully installed. Do not overfill
or engine damage may result.
6. Insert the dipstick and turn it clockwise to secure
it in the fill tube.
Note: Check the oil level every 5 operating
hours or each time rider is used.
Initially, drain the oil and replace it
after the first 5 hours of operation to
remove the contaminants produced by
normal engine break-in; thereafter,
under normal conditions, change oil
after every 25 hours of operation.
Change the oil more frequently when
the engine is operated in dusty or dirty
conditions.
Check
T
ire Pressure
7. Check front and rear tires for proper inflation.
Refer to Operator’
s Manual, maintenance section
under Tire Pressure.
