Toro Workman GTX Electric & Lithium User Manual

Workman GTX Electric Lithium
Page 3B -- 60
Electrical System

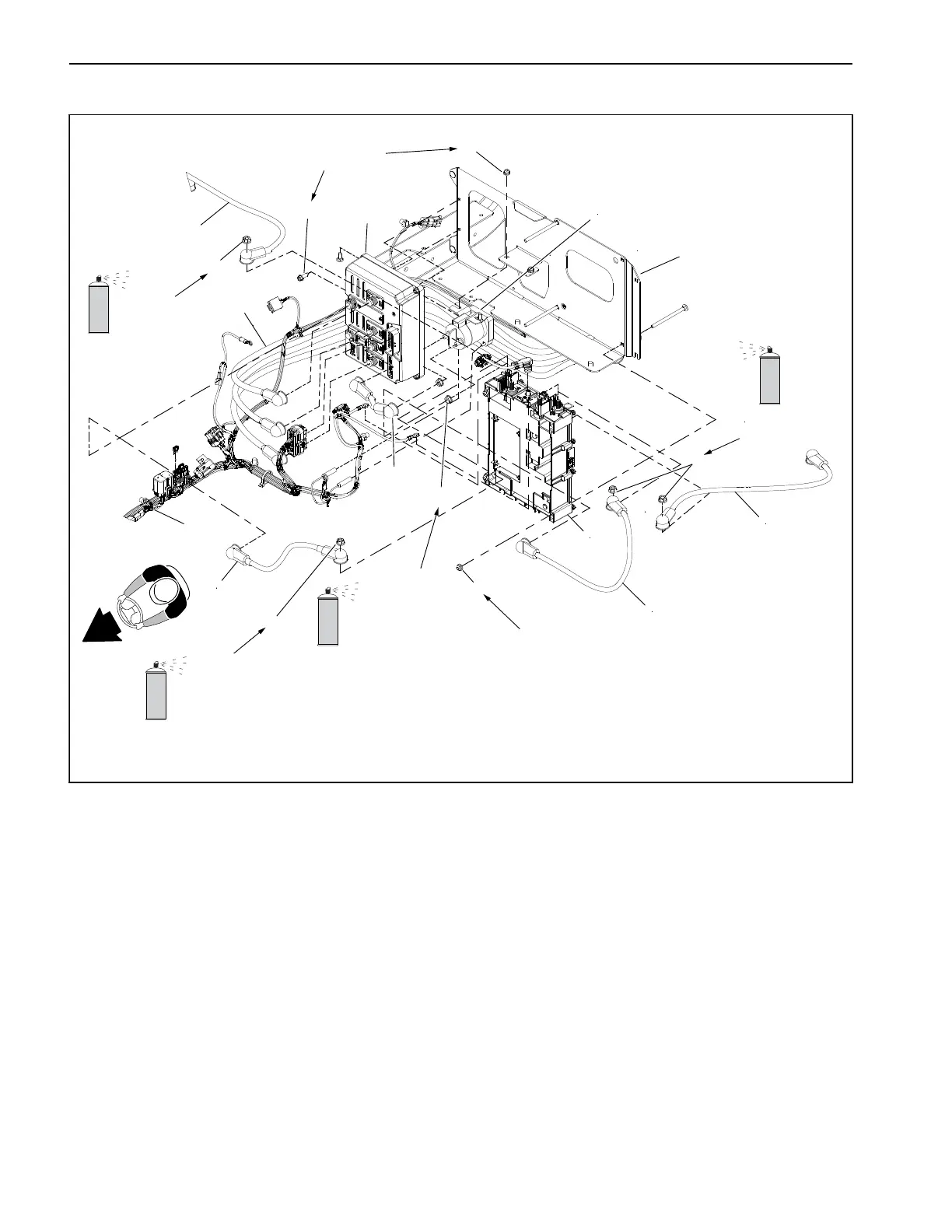

SC2: Traction Controller
1. Contactor
2. Controller bracket
3. Battery (+) positive cable
4. Flange nut (4 used)
5. Battery (+) positive cable
6. SC1: battery controller
7. Flange nut (4 used)
8. Flange nut (2 used)
9. Battery (+) positive cable
10. Battery (+) positive cable
11. Wire harness
12. Battery (+) positive cable
13. Bolt (4 used)
14. Battery (--) negative cable
15. SC2: Traction controller
16. Flange nut (2 used)
Figure 63
1
2
3
4
5
6
7
8
9
4
10
11
12
13
4
14
15
16
72 to 88 in--lb
(8 to 10 N--m)
72 to 88 in--lb
(8 to 10 N--m)
72 to 88 in--lb
(8 to 10 N--m)
45 to 55 in--lb
(5 to 6.2 N--m)
45 to 55 in--lb
(5 to 6.2 N--m)
90 to 110 in--lb
(10to12.4N--m)
Removal (Fig. 63)
1. Park vehicle on a level surface, turn key switch to
OFF, engage the parking brake and remove key from
the key switch.
2. Raise cargo bed and support with prop rod. Remove
seat base assembly.
3. Remove rear frame panel cover to allow access to all
vehicle batteries (see Rear Frame Panel Cover in the
General Information section of this chapter).
4. Make sure that vehicle battery charger IS NOT con-
nected to electrical outlet. Open the battery circuit by
disconnecting the conductors between the battery pack
and vehicle components (see Opening Battery Circuit in
the General Information section of this chapter).
NOTE: Label all traction controller e lectrical leads for
assembly purposes.
