Operation
16
Recycler
Operation
When operating the mower with Recycler
baffles
installed you must disengage the blower drive belt.
1. Stop the engine, remove the key and disconnect
the spark plug wire(s) from the spark plug(s).
2. Remove hairpin cotter and clevis pin from outer
hole in idler arm (Fig. 26).
3. Push up on the spring loaded idler arm, behind
PTO (power take off) gearbox, to relax pressure
on blower belt (Fig. 26).
4. Align inner hole in idler arm with slot in frame
and insert clevis pin. Secure with hairpin cotter
to hold in position.
1
2
3
4
m-3548

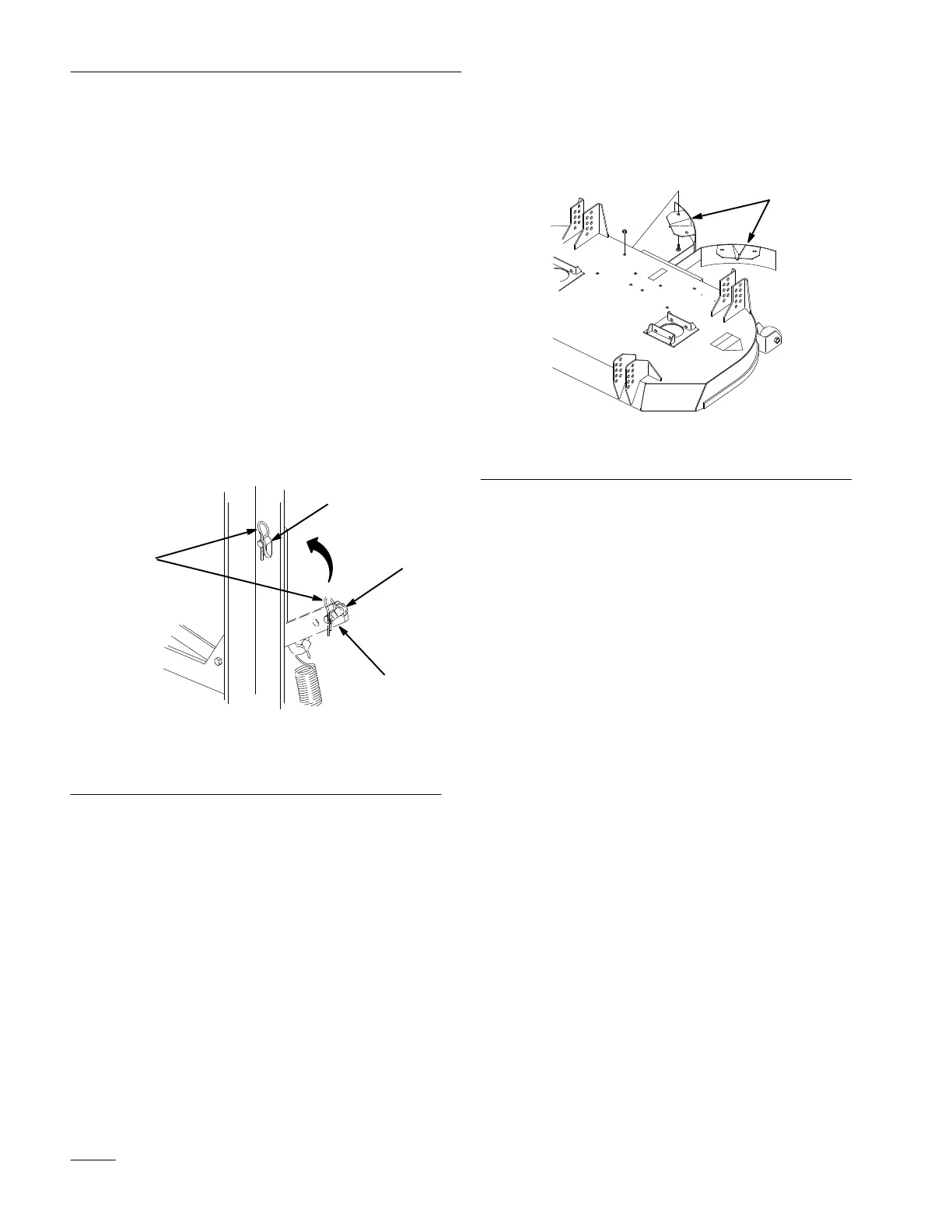

Figure 26
1. Idler
arm
2.
Frame slot
3.
Clevis pin
4.
Hairpin cotter
5. Remove the bagger and discharge baffles from
the mower and install the Recycler
baffles
(Fig. 27).
m-3562
1
Figure 27
1. Recycler
baf
fle
