Chec k belts for crac ks , fra yed edg es , bur n marks
or any other damag e . R e place damag ed belts .
Replacing the Mower Belt
T he signs of a w or n mo w er belt are squealing
while the belt is rotating, blades slipping while y ou
are cutting g rass , fra yed belt edg es , bur n marks ,
and crac ks . R e place the mo w er belt if y ou detect
any of these signs .
1. Diseng ag e the PTO , mo v e the motion control
lev ers to the neutral loc k ed position, and set
the parking brak e .
2. Stop the engine , remo v e the k ey , and w ait for
all mo ving par ts to stop before lea ving the
operating position.
3. R emo v e the belt co v ers o v er the outside
spindles .
4. Loosen the fix ed idler ar m and adjust it to
reliev e the belt tension on the fix ed idler pulley
( Figure 49 ).

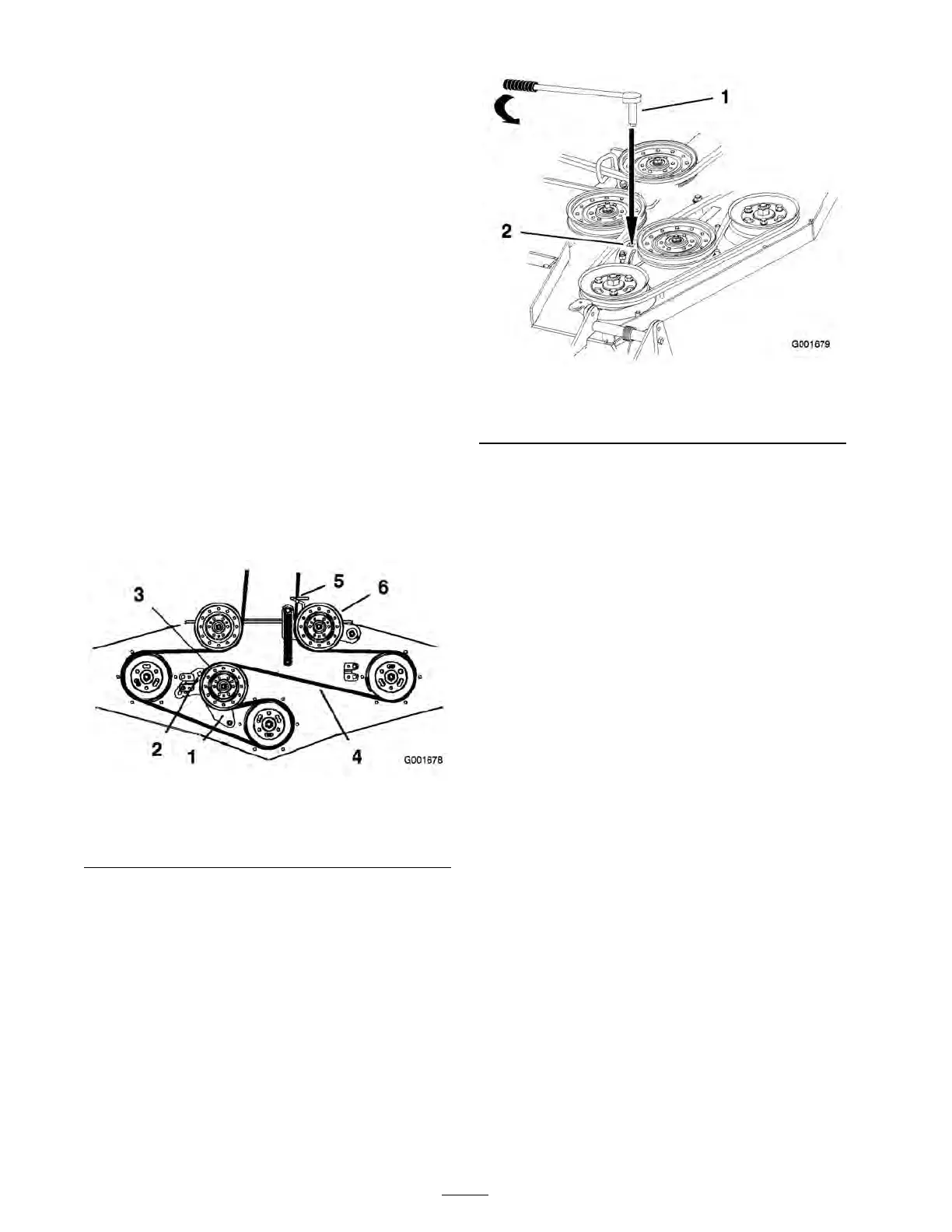

Figure 49
1. Fixed idler arm 4. Mower belt
2. Square hole 5. Belt guide
3. Fixed Idler pulley 6. Spring-loaded idler pulley
5. R emo v e the old belt.
6. Install the new belt through the belt guide and
on the pulleys ( Figure 49 ).
7. Inser t a ratc het with a shor t extension or a
break er bar into the square hole in the fix ed
idler ar m ( Figure 50 ).
Figure 50
1. Ratchet with short
extension or breaker bar
2. Square hole
8. T o increase the belt tension, rotate the ratc het
or break er bar countercloc kwise to mo v e
the fix ed idler ar m until y ou feel increased
resistance and the spring-loaded idler pulley
stops mo ving .
Note: Do not increase the belt tension
bey ond the point where the fix ed idler ar m
stops .
9. W hile holding the belt in tension, tighten the 2
bolts that secure the fix ed idler ar m.
10. R emo v e the ratc het or break er bar from the
square hole in the fix ed idler ar m.
11. Install the belt co v ers o v er the outside spindles .
Replacing the Pump Drive
Belt
Chec k the pump dri v e belt for w ear after ev er y
50 operating hours .
1. R emo v e the mo w er belt first; refer to R e placing
the Mo w er Belt.
2. R emo v e the bolt from the clutc h stop and
unplug the clutc h electrical wire ( Figure 51 ).
3. Pull the spring loaded idler to the side .
4. R emo v e the traction belt from the engine and
the h y draulic pump pulleys ( Figure 51 ).
5. Install the new belt around the engine and the
h y draulic pump pulleys ( Figure 51 ).
6. Pull the spring-loaded idler to the side and
align the belt.
40
