4.0 UPS Connections
4.1 Power Connections
4.1.1 UPS model numbers UC3G2L024C6, UC3G2L036C6, UC3G2L060C6, and
UC3G2L080C6

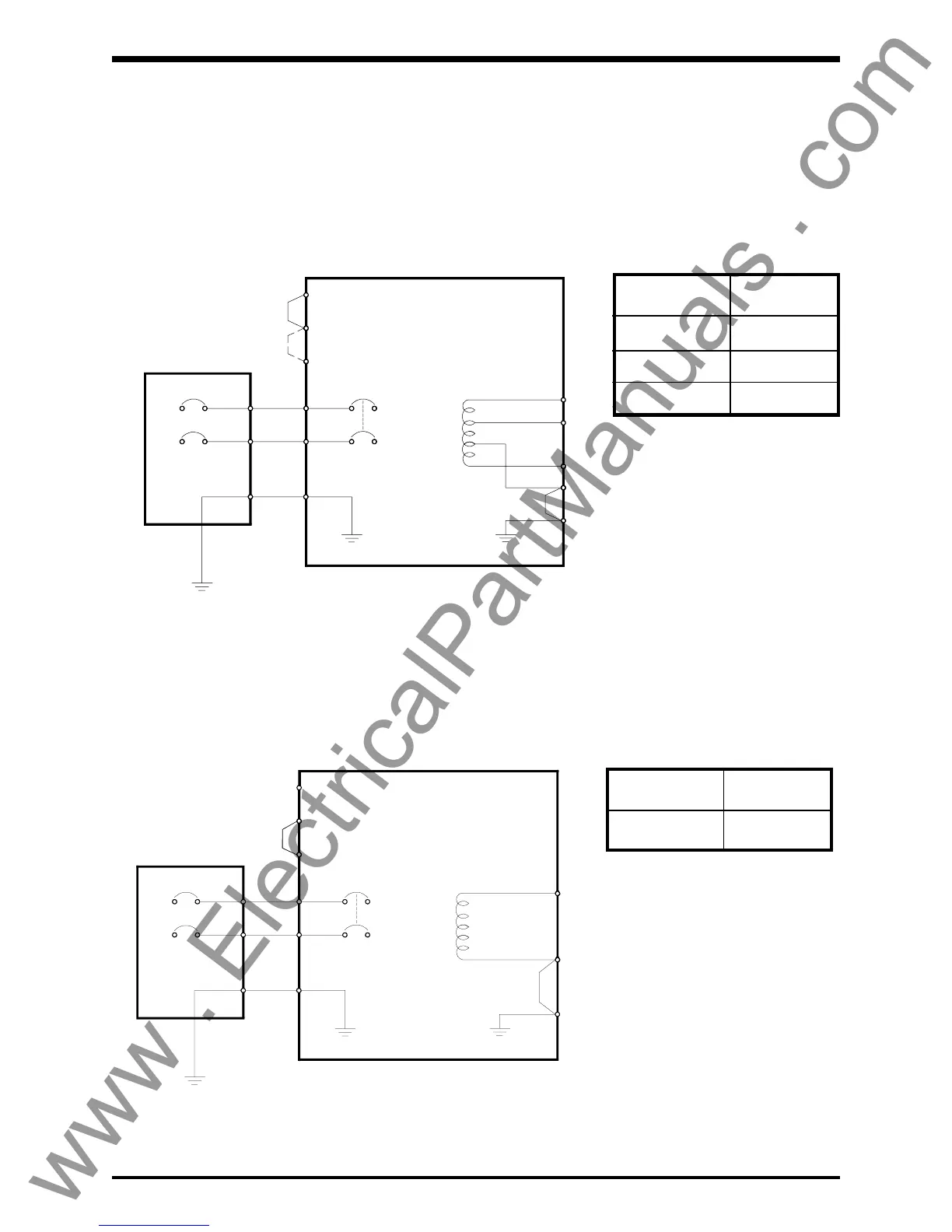

The following illustration details the wiring connections from the power
distribution panel (not part of the UPS) to the UPS unit and the available input
voltage selection jumper setting. The available UPS output voltages are shown in
the table.
4.1.2 UPS model number UC3E1E024C5
The following illustration details the wiring connections from the power
distribution panel (not part of the UPS) to UPS model number UC3E1E024C5.
The available UPS output voltages are shown in the table.
UPS Output Voltages
7
4
8
G
1L1
2L2
220 V
Source Power
Distribution
Panel
Main UPS Unit
H3-N
Terminal
Output voltage
230 Vac
3G
MCCB
11
12
13
H2
H1
H3
N
UPS Output Voltages
6
7
4
8
N
G
5
1L1
2L2
208/240 V
Source Power
Distribution
Panel
Main UPS Unit
H1A-H2A
H1A-N, H3-N
H1A-H3
Terminal
Output voltage
240 Vac
208 Vac
120 Vac
H2A
H1A
3G
MCCB
Low (208V)
High (240V)
11
12
13
Input voltage
selection
(factory setting: low)
H2
H1
H3
