TOSHIBA
4 - 4
4.0 UPS Connections
4.2 Terminal Block details (cont'd)
4.2.3 UPS model numbers UC3E1E036-51, UC3E1E060-51, and UC3E1E080-51

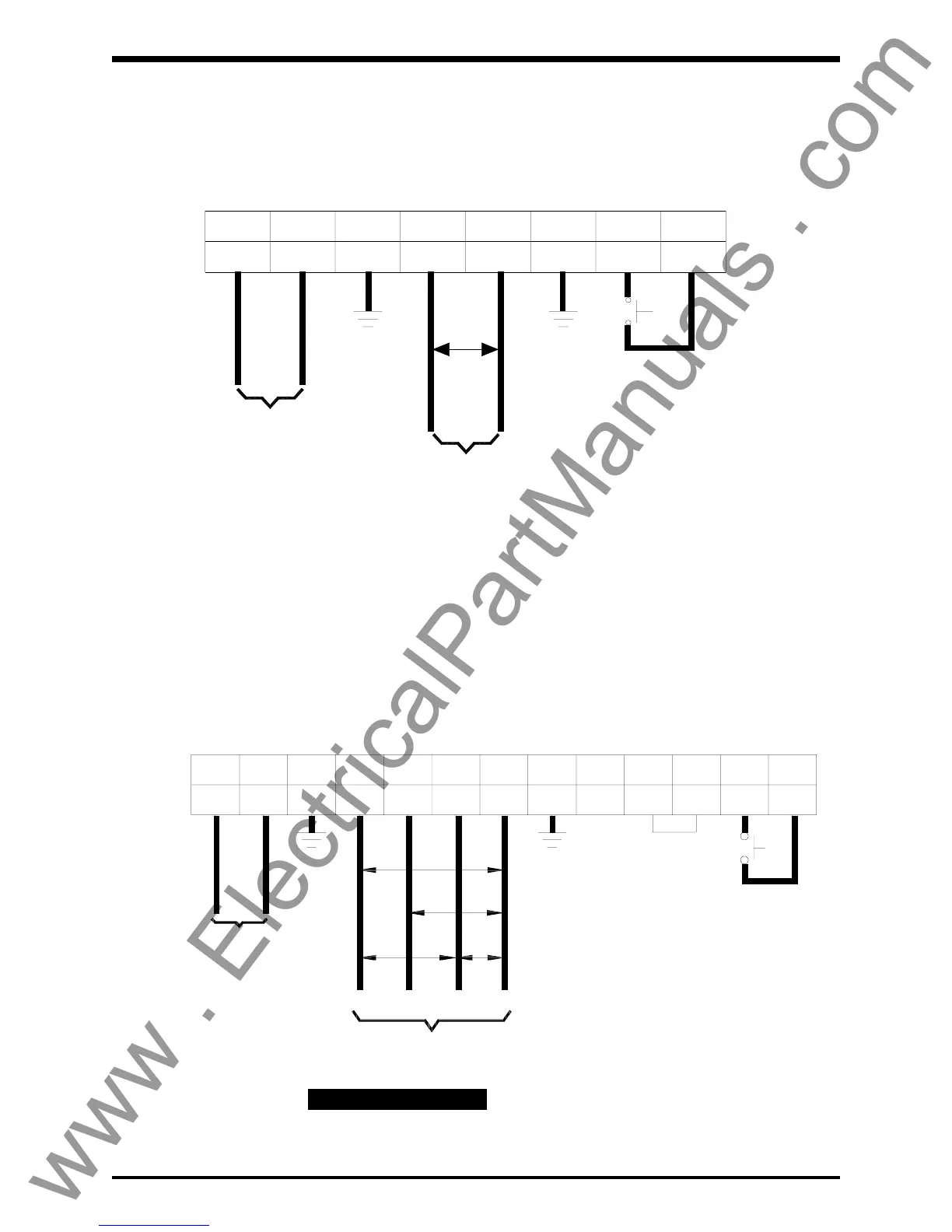

The following illustration is a detail of the UPS unit's terminal block (see Section
9.1 for terminal block location).
4.2.4 UPS model number UC3A2L024C6
The following illustration is a detail of the UPS unit's terminal block (see Section
9.1 for terminal block location).
12345678
H2H1 H3 N G EPO1 EPO2
Ground Ground
230Vac
input cables from
distribution panel
Remote
EPO Switch
Rated @ 125Vac
2A
ac output
cables to loads
230V
1 2 3 4 5 6 7 8 11 12 13 14 15
H2 H1 G H3 H2A N H1A G COM HIGH EPO1 EPO2
Ground Ground
120 Vac
input cables from
distribution panel
Remote
EPO switch
Rated @ 125Vac,
2 Amp
ac output cables to loads
120V120V
240V
208V
Jumper
Notes:
1) When ac input power is 120 Vac rated, terminals 12 and 13 must be shorted by a
jumper. Do not use terminal 11.
G
