TOSHIBA
4 - 3
4.0 UPS Connections
4.2 Terminal Block details
4.2.1 UPS model numbers UC3G2L024C6, UC3G2L036C6, UC3G2L060C6, and
UC3G2L080C6

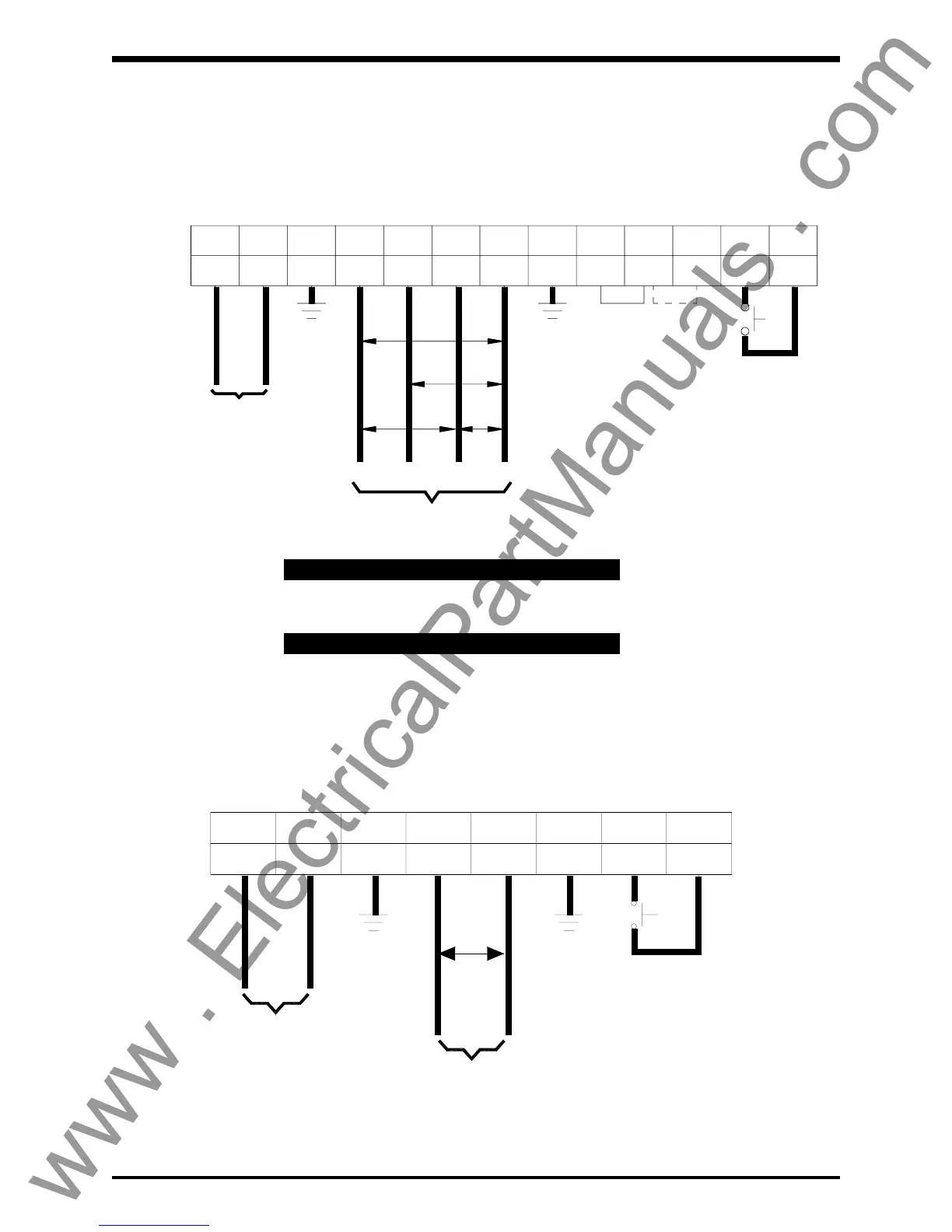

The following illustration is a detail of the UPS unit's terminal block (see Section
9.1 for terminal block location).
4.2.2 UPS model number UC3E1E024C5
The following illustration is a detail of the UPS unit's terminal block (see Section
9.1 for terminal block location).
1 2345678111213 14 15
H2 H1 G H3 H2A N H1A G LOW COM HIGH EPO1 EPO2
Ground Ground
208V 240V
208/240 Vac
input cables from
distribution panel
Remote
EPO switch
Rated @ 125Vac,
2 Amp
Jumper
selection
See note 1 & 2
ac output cables to loads
120V120V
240V
208V
Notes:
1) If ac input power is 208 Vac rated, terminals 11 and 12 must be shorted by a jumper
wire. Do not jumper terminal 13 to either 12 or 11.
Factory setting is 208 Vac.
2) If ac input power is 240 Vac rated, terminals 12 and 13 must be shorted by a jumper
wire. Do not jumper terminal 11 to either 12 or 13.
12345678
H2H1 G H3 N G EPO1 EPO2
Ground Ground
230Vac
input cables from
distribution panel
Remote
EPO Switch
Rated @ 125Vac
2A
ac output
cables to loads
230V
