English

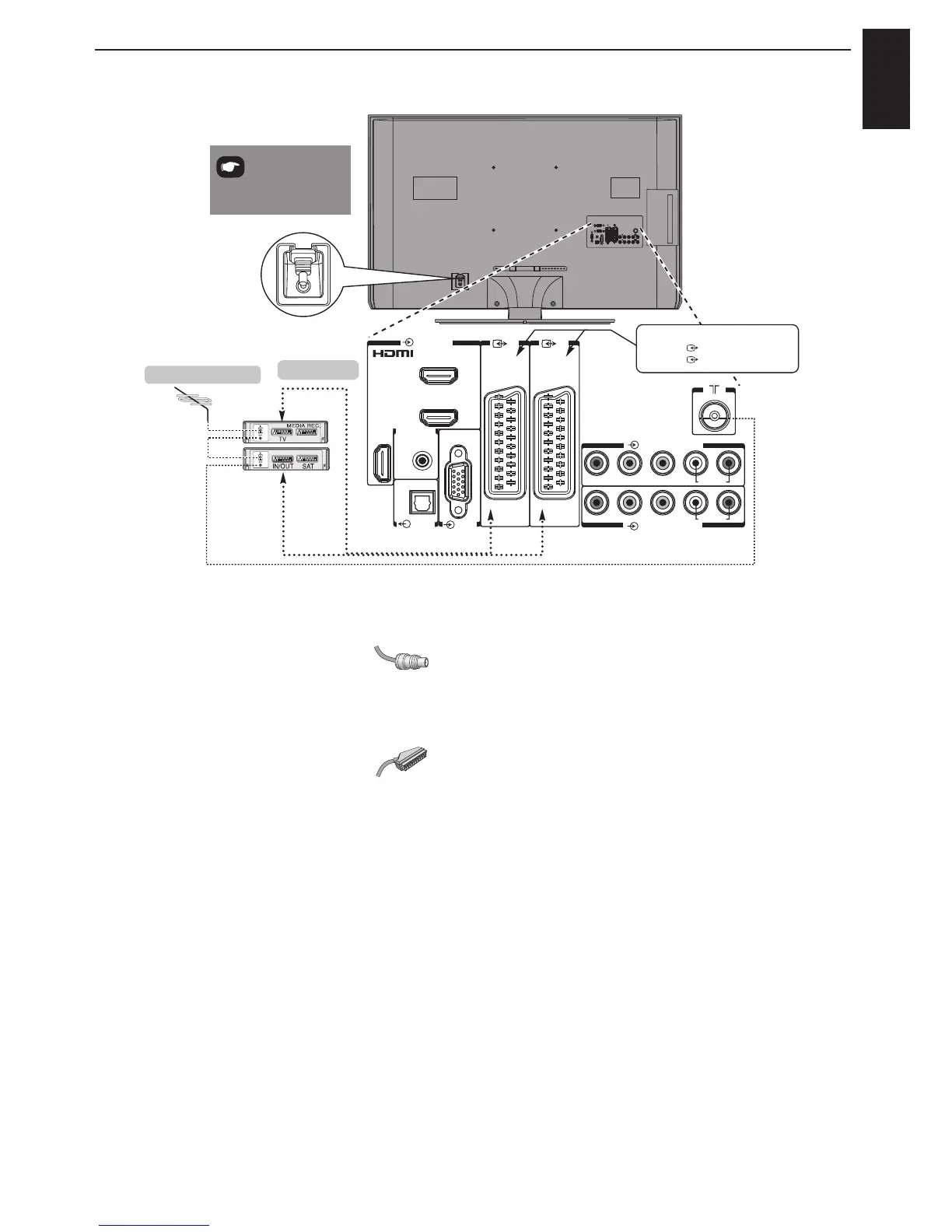

SETTING UP
9
42SL738B:
1
2
4
PC/HDMI 1
(AUDIO)
Digital
Audio
RGB/PC
Y L AUDIO
(5) COMPONENT
(1)
(2)
R
(4) COMPONENT
P /C
R R
P /C
B B
Y L AUDIO RP /C
R R
P /C
B B
HDMI 1/2/4
*a decoder could
be Digital Satellite or any
other compatible decoder.
decoder*
media recorder
NOTE:
SCART1 : (INPUT/TV OUT)
SCART2 : (INPUT/TV OUT)
(1)
(2)
AC-IN
NOTE: SCART1 can support Canal+ decoder.
Aerial cables: - - - - - - - - - - - - - - - - -
Connect the aerial to the ANT socket on the rear of the television. If you use a decoder and/or a media
recorder, it is essential that the aerial cable is connected through the aerial socket on the decoder and/
or on the media recorder to the TV.
SCART leads: - - - - - - - - - - - - - - - - -
Connect the video recorder IN/OUT or decoder TV socket to the television. Connect the media recorder
SAT socket to the decoder MEDIA REC. socket.
Before running Auto Scan, put your decoder and media recorder to Standby.
The phono sockets alongside the COMPONENT VIDEO INPUT sockets will accept L and R audio
signals.
The phono sockets alongside the VIDEO INPUT socket will accept L and R audio signals. These
sockets are located on the side of the TV. (See page 18.)
SPDIF (Optical Digital Audio Out) When a digital audio signal is associated with the input selected for
viewing, the digital audio will be available on this SPDIF connection to your home theatre system.
HDMI
®
(High-Denition Multimedia Interface) is for use with a DVD, decoder or electrical equipment
with digital audio and video output. It is designed for best performance with 1080p high-denition video
signals but will also accept and display VGA, SVGA, XGA, WXGA, SXGA, 480i, 480p, 576i, 576p, and
720p signals.
NOTE: Although this television is able to connect to HDMI equipment it is possible that some equipment
may not operate correctly.
