Installing the 58 mm wide paper guide (optional)
The paper guide is included in the paper roll kit. To install the 58 mm wide paper guide,
complete the following steps.
1. Open the paper door by pressing the blue release button.
2. Turn off the power to the printer.
3. Unplug the power cord from the external power source.
4. Insert the paper guide:
a.
Hook the paper guide to the right of the paper out sensor
A on the grove B , as shown
in Frame
1 of Figure 2.
b. Slide the paper guide to the left to align the tab with the open slot.
c.
Tilt the paper guide tab upward
A until it clicks into place, as shown in Frame 2 of
Figure 2.

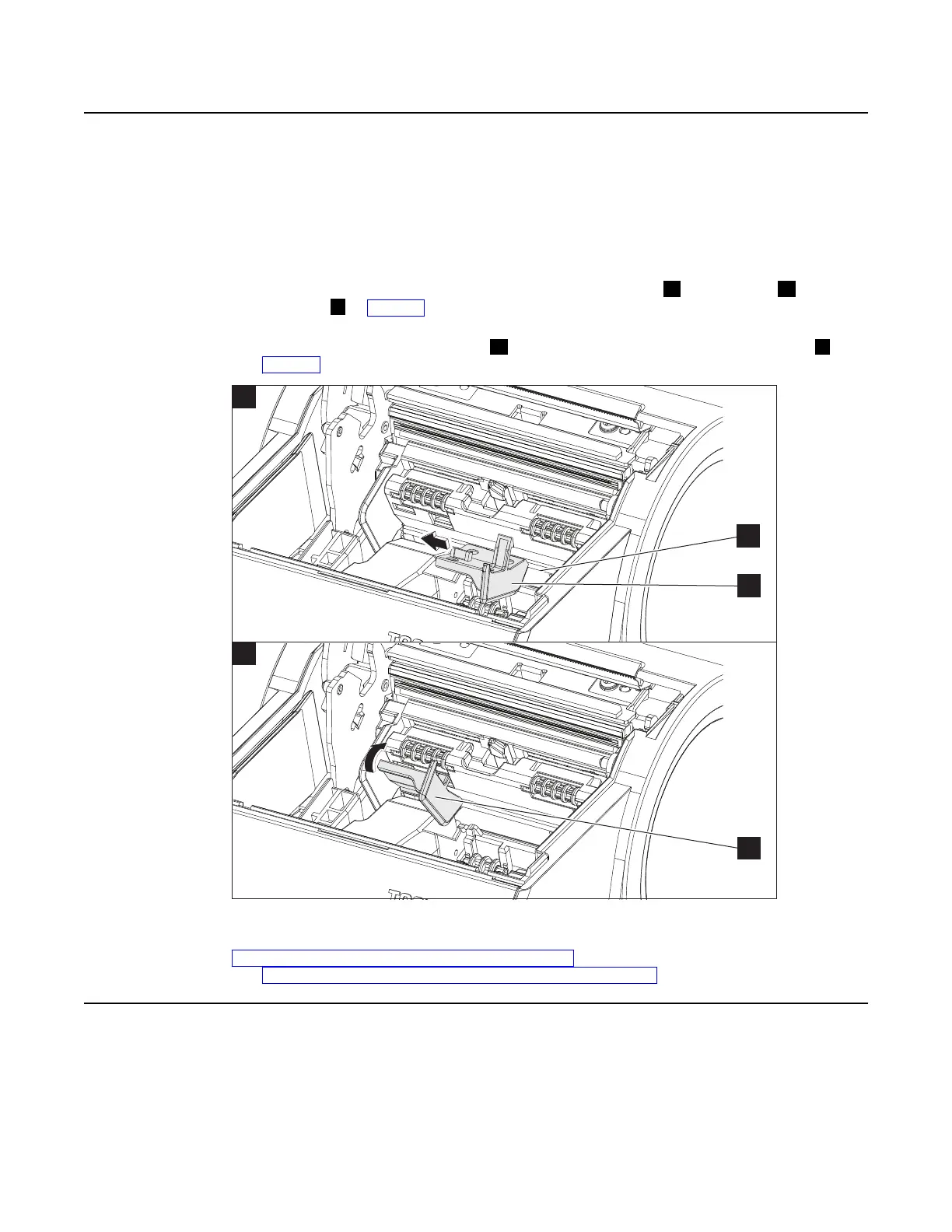

Figure 2. Installing the paper guide
5. Configure the print width for the 58 mm wide paper using the offline setup test (see
Firmware offline tests and the Test/Status Receipt) or the TCx Printers Configuration Utility
(see “Using the TCx Printer Configuration Utility” on page 19).
Installing the wall mounting bracket (optional)
When counter space is limited, you can mount the TCx Single Station Printer to the wall. To
mount the printer to the wall:
