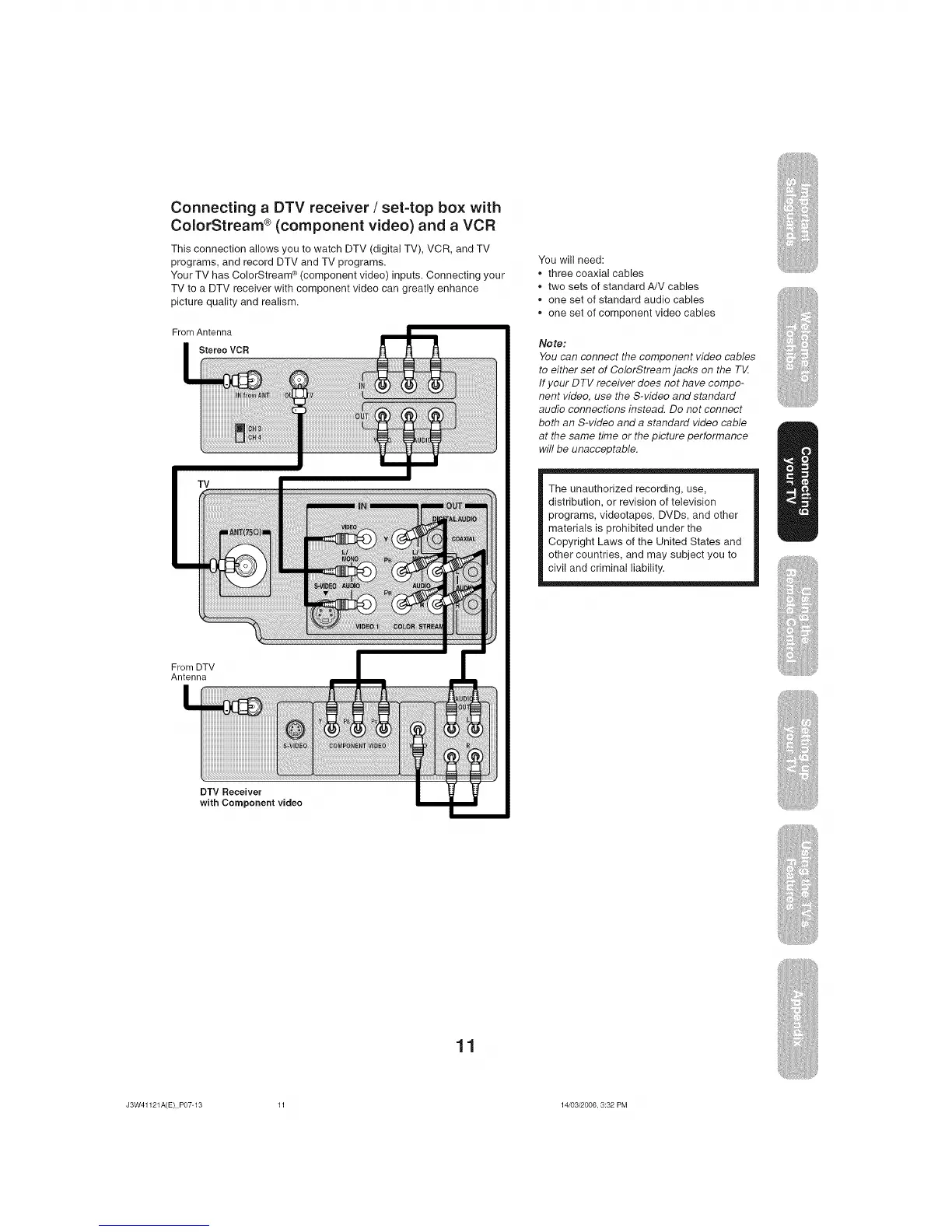

Connecting a DTV receiver / set=top box with
ColorStream ®(component video) and a VCR
This connection allows you to watch DTV (digital TV), VCR, and TV
programs, and record DTV and TV programs.
Your TV has ColorStream e_(component video) inputs. Connecting your
TV to a DTV receiver with component video can greatly enhance
picture quality and realism.
From Antenna
Stereo VCR
From DTV I
Anten ............ ...................................._.v@#Eo¢_ou_ _10_ _ :_
DTV Receiver
with Component video
You will need:
,, three coaxial cables
,, two sets of standard A/V cables
,, one set of standard audio cables
,, one set of component video cables
Note:
You can connect the component video cables
to either set of ColorStream jacks on the TV
If your DTV receiver does not have compo-
nent video, use the S-video and standard
audio connections instead. Do not connect
both an S-video and a standard video cable
at the same time or the picture performance
will be unacceptable.
The unauthorized recording, use,
distribution, or revision of television
programs, videotapes, DVDs, and other
materials is prohibited under the
Copyright Laws of the United States and
other countries, and may subject you to
civil and criminal liability.
