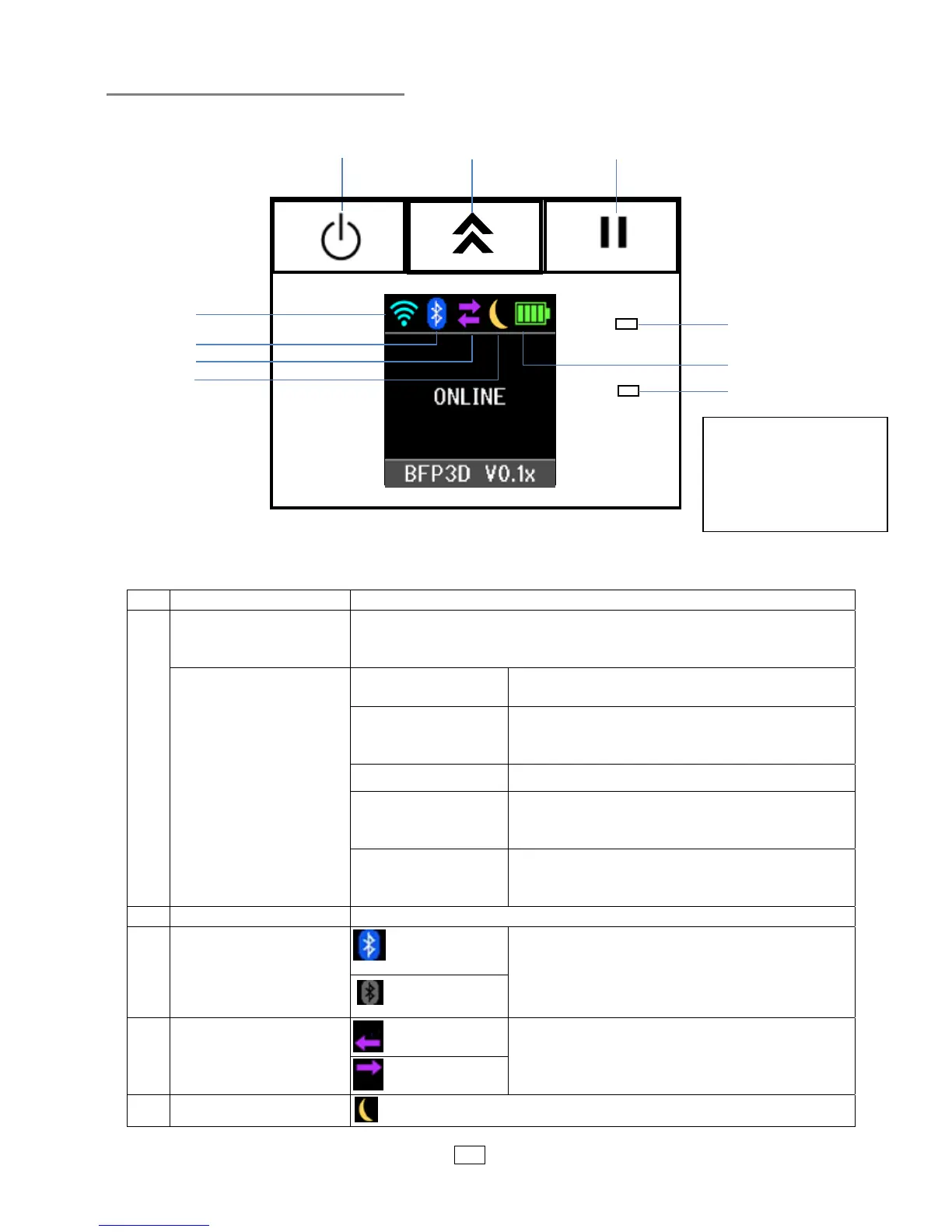

Operation Panel Functions
No. Name/Icon Function/Usage
(1)
Liquid Crystal Display
(16 lines x 2 lines)
Icons indicating the printer statuses, such as the radio intensity,
battery level, etc. are displayed.
Printer status is indicated in alphanumerals or symbols.
LCD Message
ON LINE
The printer is ready for an issue command
from the host.
PAUSE
The printer is in pause state. When the printer
is paused during printing, the number of
unprinted labels is displayed.
COVER OPEN The top cover is open.
LBL PRESENT **** The printer is waiting for the printed label to be
removed from the media outlet. “****”
indicates the number of unprinted labels.
WAITING(XXXX) The printer is waiting for a recovery of the
battery voltage or temperature decrease of the
print head or motor.
(2) Wifi Signal strength Indicates the Wifi intensity in 4 levels
(3) Bluetooth
Bluetooth
Connected
Indicates a Bluetooth connection status
Bluetooth Not
connected
(4) Transmission
Data receive
by the printer
Indicates data transmission status.
Data send to
the host
(5) Sleep
Displayed while the printer is in the power save mode.
(10)
NOTE:
Do not touch the
Operation panel with a
sharp object, as the
surface of the Operation
panel is easily damaged.
POWER FEED
PAUSE
STATUS
CHARGE
(2)
(3)
(4)
(5)
(7)
(8)
(9)
(11) (12)
