2. PRINTER SETUP ENGLISH VERSION EO1-33059
2.2 Fitting the Fan Filter
E2- 3
2.2 Fitting the Fan Filter
2.3 Connecting the
Power Cord
When installing the printer, it is important to ensure that the Fan Filter is
attached before using the printer.
The Fan Filter consists of 2 parts:
(1) Filter Pad
(2) Filter Retainer

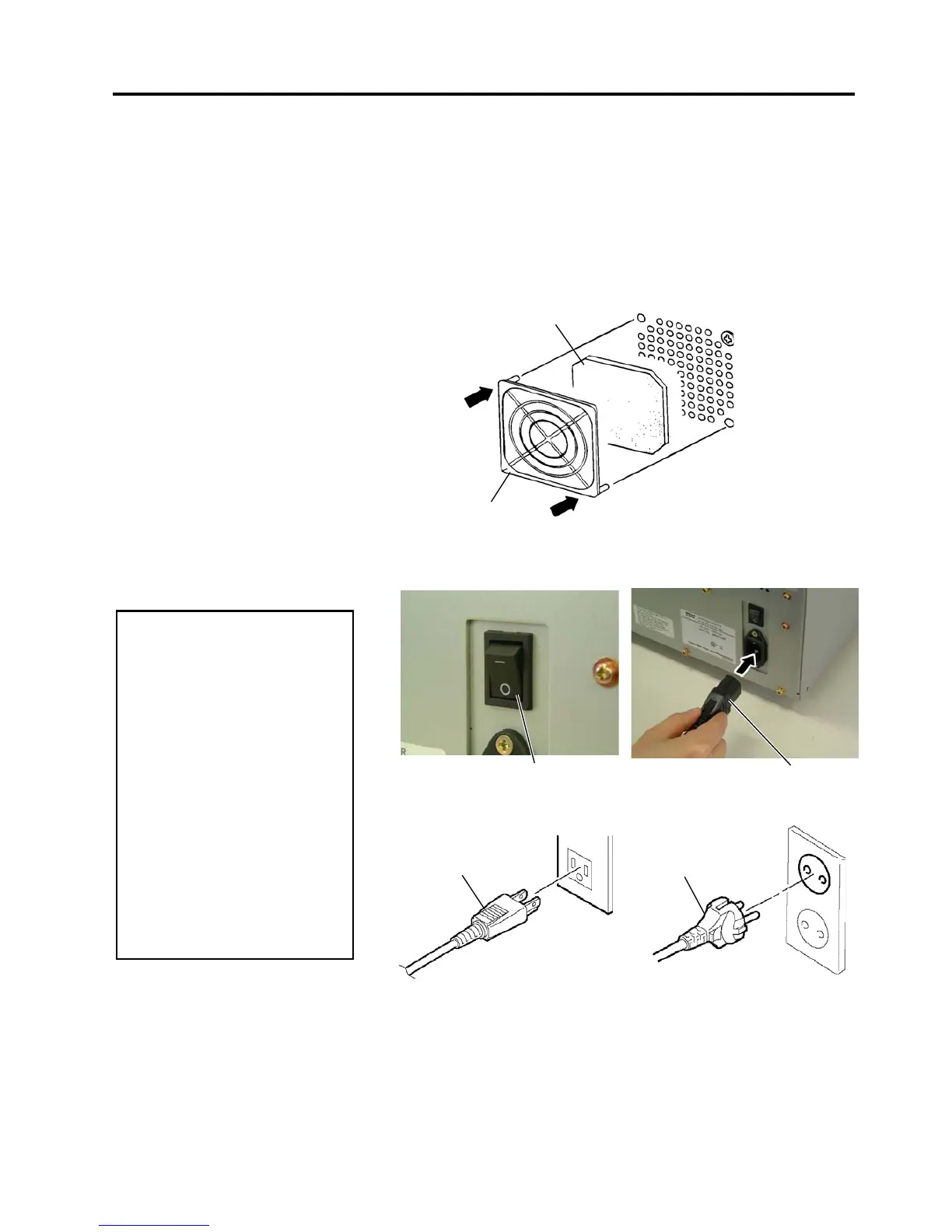

To fit the Fan Filter, put the Filter Pad inside the Filter Retainer and
simply press into place as shown in the diagram below, ensuring
connecting pins are aligned with the connecting holes.
1. Make sure that the printer Power Switch is in the OFF (
{) position.
Connect the Power Cord to the printer as shown in the figure below.
2. Plug the other end of the Power Cord into a grounded outlet as shown
in the figure below.
[Example of US Type] [Example of EU Type]
Filter Pad
Filter Retainer
Snap On
Snap On
Power Cord
Power Cord
Power Cord
Power Switch
CAUTION!
1. As a Power Cord is not
supplied with the printer,
lease purchase an approved
on that meets the safety
standard of each country.
(Refer to APPENDIX 3.)
2. Make sure that the printer
Power Switch is turned to the
OFF position ({) before
connecting the Power Cord to
prevent possible electric
shock or damage to the
printer.
3. Connect the Power Cord to a
supply outlet with a properly
grounded (earthed)
connection.
To Next Page
