3. ON LINE MODE ENGLISH VERSION EO1-33059
3.1 Operation Panel
E3- 1
3. ON LINE MODE
3.1 Operation Panel
This chapter describes usage of the keys on the Operation Panel in On
Line mode.
When the printer is in On Line mode and connected to a host computer,
the normal operation of printing images on labels or tags can be
accomplished.

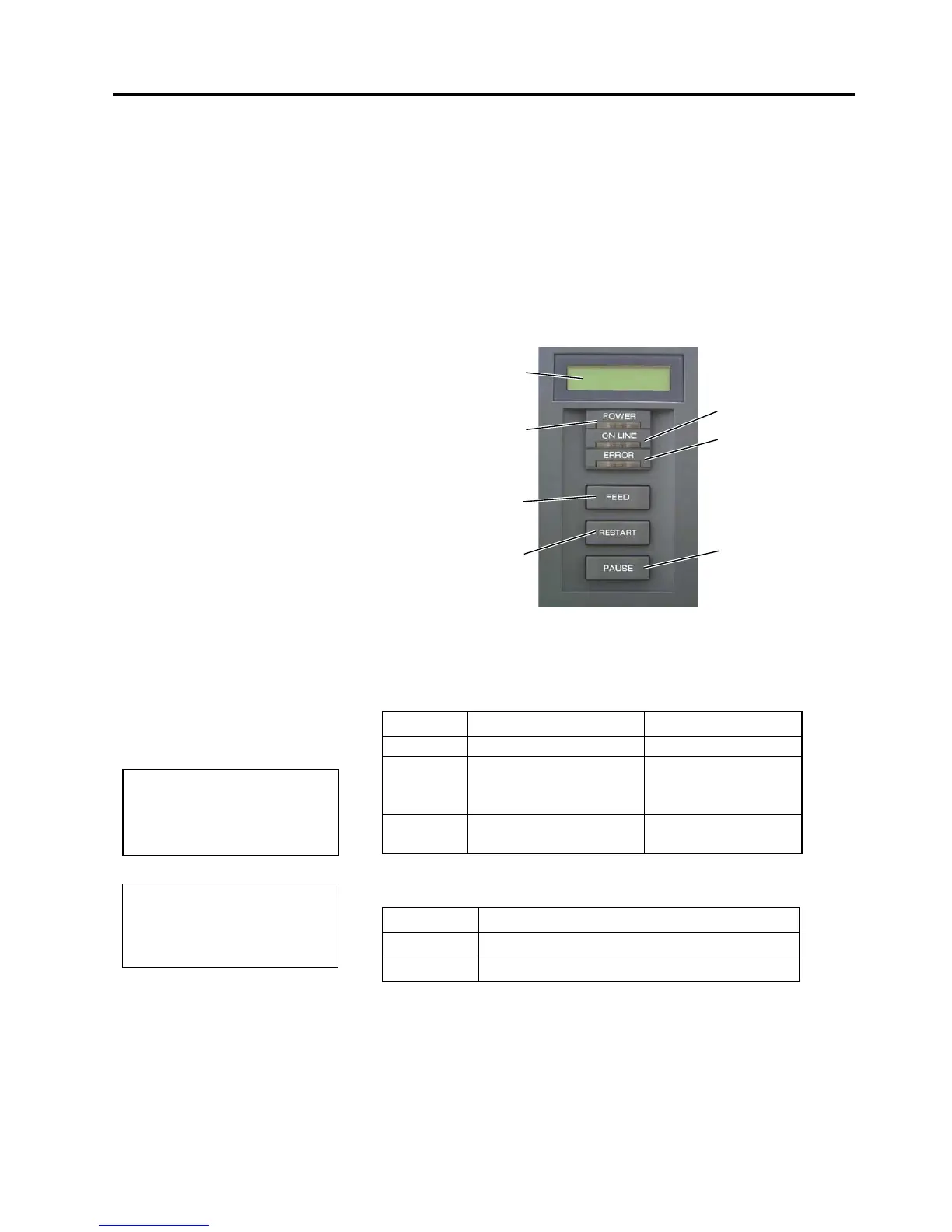

• The figure below illustrates the operation panel and key functions.
The LCD Message Display shows messages in alphanumeric characters
and symbols to indicate the printer’s current status. Up to 32 characters
can be displayed on two lines.
There are three LED lights on the operation panel.
LED Illuminates when… Flashes when…
POWER The printer is turned on. -----
ON LINE The printer is ready to
print.
The printer is
communicating with
your computer.
ERROR Any error occurs with
the printer.
The ribbon is nearly
over. (See NOTE.)
There are three keys on the operation panel.
PAUSE Used to stop printing temporarily.
RESTART Used to restart printing.
FEED Used to feed the media.
NOTE:
Use the [RESTART] key to
resume printing after a pause, or
after clearing an error.
LCD Message Display
ON LINE LED (Green)
ERROR LED (Red)
[PAUSE] key
POWER LED
(Green)
[FEED] key
[RESTART] ke
