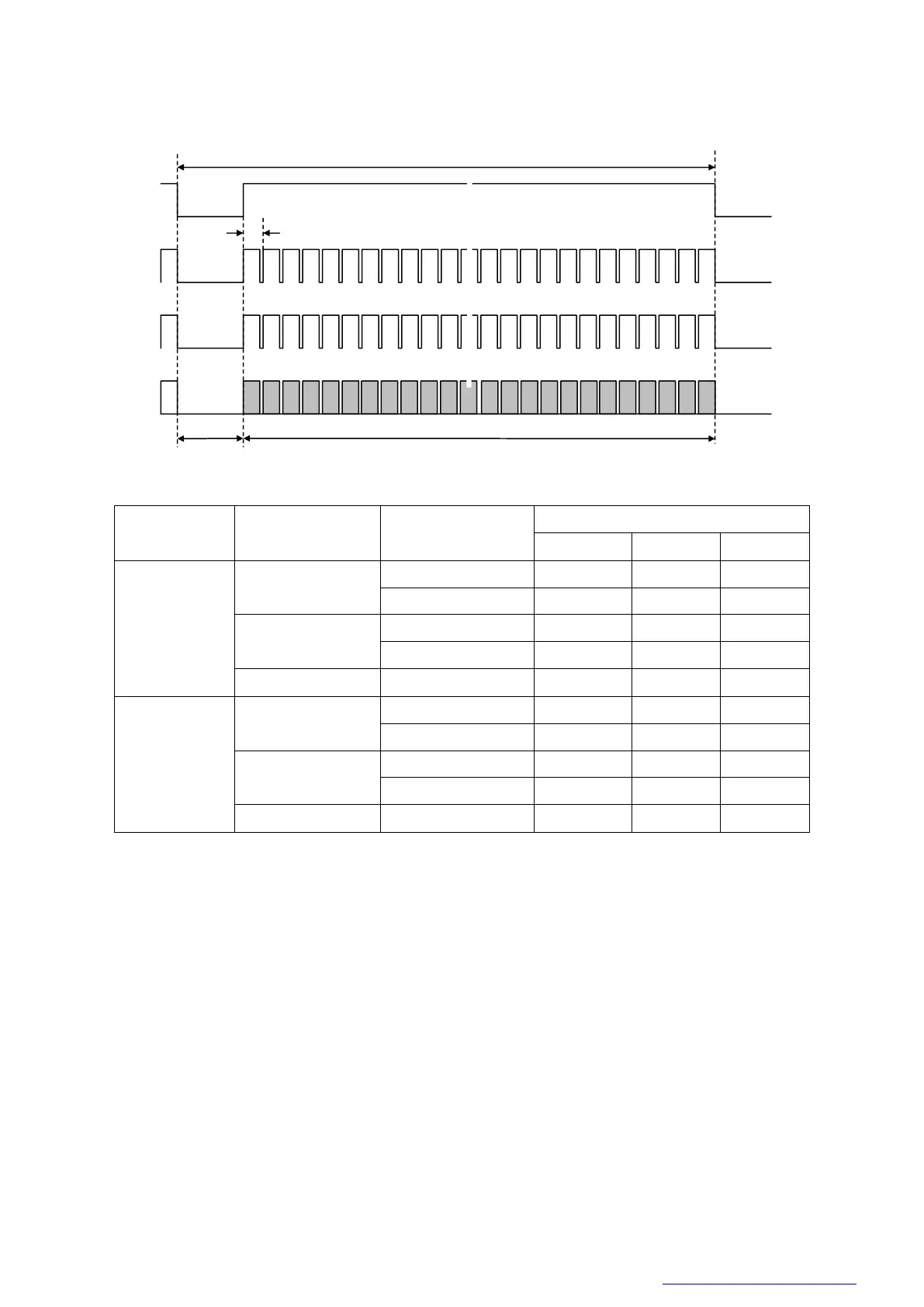

●Vertical timing : at all pixels readout (following timing figure : BC040M 3tap)
󰺡󰺡
󰺡
󰺡
1V
DATA OUT
DVAL
LVAL
FVAL
arbitrary 540H
1 2 3 4 5 6 7 8 9 10 11
540
539
538
537
536
535
534
533
532
531
530
529
1H

Vertical sync frequency=1V
Unit：Hz
Model name
CameraLink tap
PixelFormat
CLK frequency (1CLK)
37.5MHz
50MHz
83MHz
BC040M
1tap
Mono8
86.63
115.43
191.98
Mono10/Mono12
86.63
115.43
191.98
2tap
Mono8
170.13
226.54
377.13
Mono10/Mono12
170.13
226.54
320.13
3tap
Mono8
250.67
333.57
436.74
BC160M
1tap
Mono8
22.74
30.31
50.36
Mono10/Mono12
22.74
30.31
50.36
2tap
Mono8
45.07
60.05
99.88
Mono10/Mono12
45.07
60.05
99.88
3tap
Mono8
66.99
89.23
148.26
