Physical Specifications
Toshiba DP5000-Series Digital Telephones
7 of 20
DP5000-Series Telephone Tilt Angles
The DP5000-series telephones, except the DP5008, have three tilt positions built into the base. There is
also a tilt stand extension that adds an additional 20 degrees of tilt. When the telephone is sitting on a desk
or table there are a total of six different angles of tilt available. When wall mounted there are two angles
available. The DP5008 base is fixed at 15 degrees. Refer to the figures below and the installation section
for more detail.
Figu
re 1

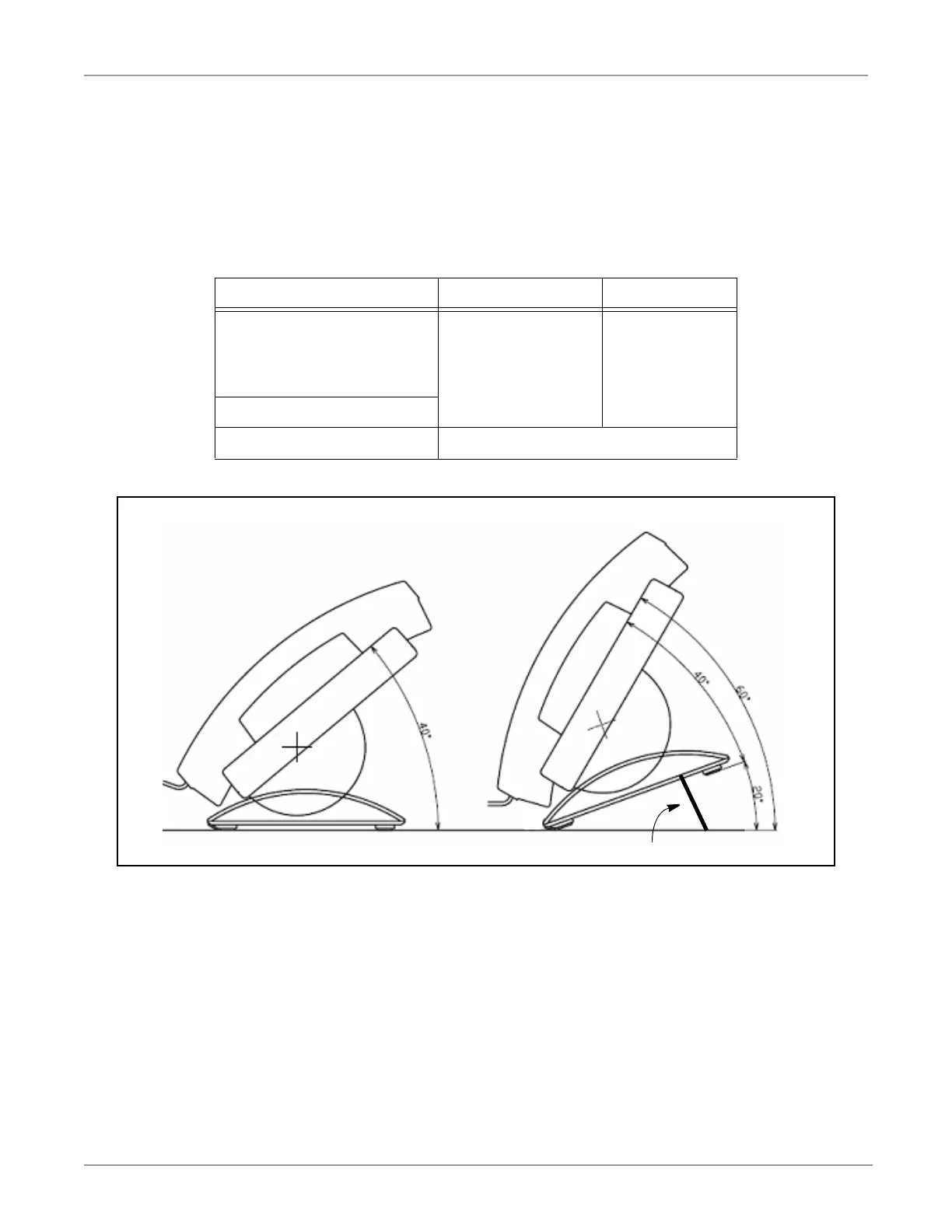

DP5000-Series Desk-top Tilt Angle With Tilt-Stand Extension
DP5000-Series Tilt Angels
Model Tilt Without Stand Tilt with Stand
DP5018-S
DP5022-SDM, DP5022-SD,
DP5122-SD, DP5032-SD,
DP5132-SD, DP5130-SDL
15°, 27.5°, 40° 35°, 47.5°, 60°
DDM5060, KM5020, LM5110
DP5008 15 Degrees (fixed)
Tilt Stand Extension
