DC IN 19V jack The AC adaptor connects to this jack in order to
power the computer and charge its internal
batteries. Note that you must only use the model
of AC adaptor supplied with the computer at the
time of purchase. Using the wrong AC adaptor
can damage the computer.
HDMI out port HDMI out port can connect with Type A
connector HDMI cable.
Universal Serial Bus
(USB 3.0) ports
Two Universal Serial Bus ports, which comply to
the USB 3.0 standard, are provided on the left of
the computer.
The port with the icon ( ) supports the following
functions:
USB Sleep and Charge function
System ON CDP Charge Mode
DC IN/Battery
indicator
The DC IN/Battery indicator shows the condition
of the DC IN and the battery charge status.
Green indicates that the battery is fully charged
while the power is being correctly supplied from
the AC power adaptor.
Refer to the Monitoring of power condition
section for more information on this feature.
Right side

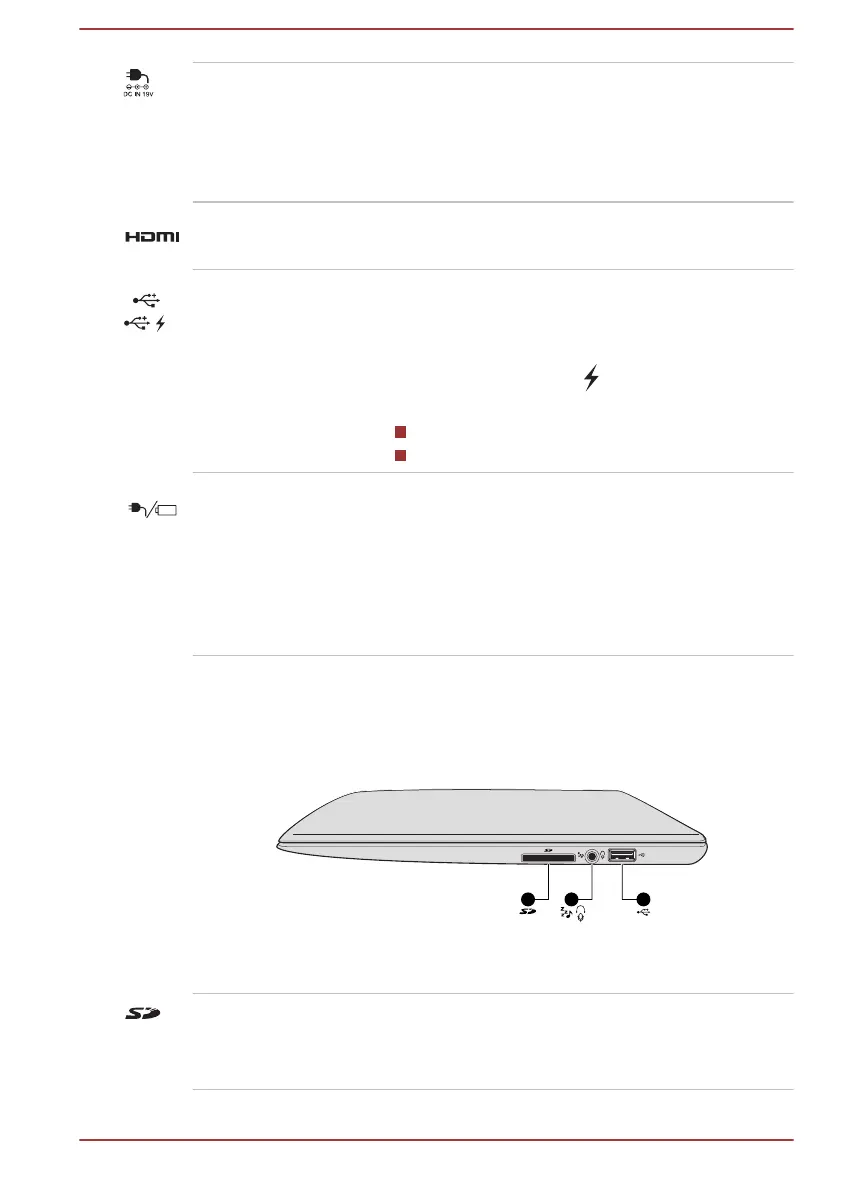

The following figure shows the computer’s right side.
Figure 3-3 The right side of the computer
1. Memory media slot
3. Universal Serial Bus (USB 3.0) port
2. Headphone/Microphone jack
Memory media slot This slot lets you insert an SD™/SDHC™/
SDXC™ memory card, miniSD™/microSD™
Card, and MultiMediaCard™. Refer to the
Memory media section for more information.
User's Manual 3-2
