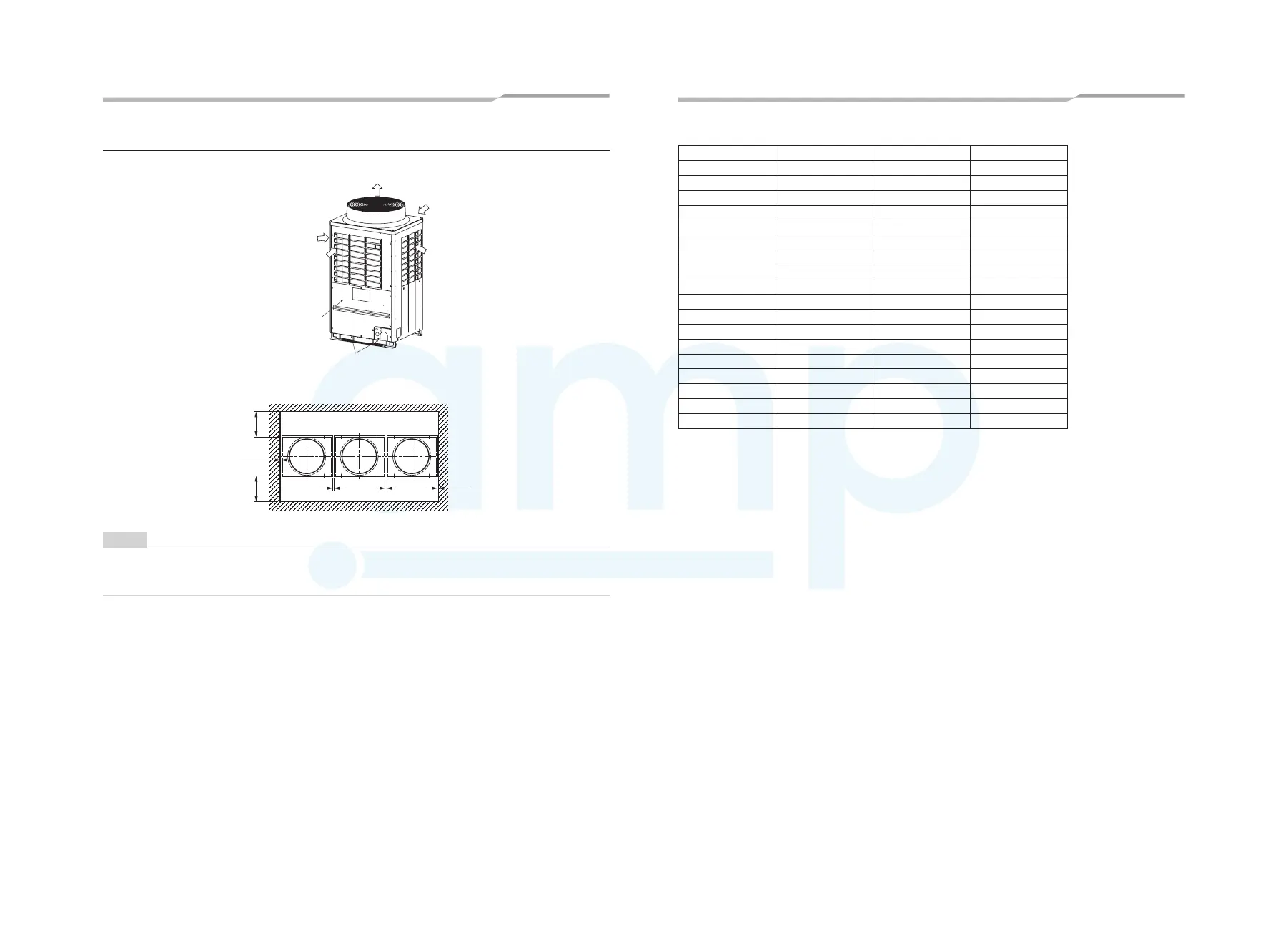

Installation space
Leave space necessary for running, installation and servicing.
Air intake
Air intake
Air discharge
Air intake
Air intake
10mm or more
Installation/servicing
surface
Square hole
for handling
500mm or more
(Rear side)
500mm or more
(Front side)
10mm or more
Outdoor unit top view
20mm or more20mm or more
NOTE
• If there is an obstacle above the outdoor unit, leave a space of 2000mm or more to the top end of the outdoor
unit.
• If there is a wall around the outdoor unit, make sure that its height does not exceed 800mm.
q Combination of outdoor units (* : FT8P-UK , FT8JPUK )
Model name Unit 1 Unit 2 Unit 3
MMY-MAP0806* MMY-MAP0806* - -
MMY-MAP1006* MMY-MAP1006* - -
MMY-MAP1206* MMY-MAP1206* - -
MMY-MAP1406* MMY-MAP1406* - -
MMY-MAP1606* MMY-MAP1606* - -
MMY-MAP1806* MMY-MAP1806* - -
MMY-MAP2006* MMY-MAP2006* - -
MMY-AP2216* MMY-MAP1206* MMY-MAP1006* -
MMY-AP2416* MMY-MAP1406* MMY-MAP1006* -
MMY-AP2616* MMY-MAP1406* MMY-MAP1206* -
MMY-AP2816* MMY-MAP1406* MMY-MAP1406* -
MMY-AP3016* MMY-MAP1606* MMY-MAP1406* -
MMY-AP3216* MMY-MAP1806* MMY-MAP1406* -
MMY-AP3416* MMY-MAP1806* MMY-MAP1606* -
MMY-AP3616* MMY-MAP1806* MMY-MAP1806* -
MMY-AP3816* MMY-MAP2006* MMY-MAP1806* -
MMY-AP4016* MMY-MAP2006* MMY-MAP2006* -
MMY-AP4216* MMY-MAP1406* MMY-MAP1406* MMY-MAP1406*
