– 8 –

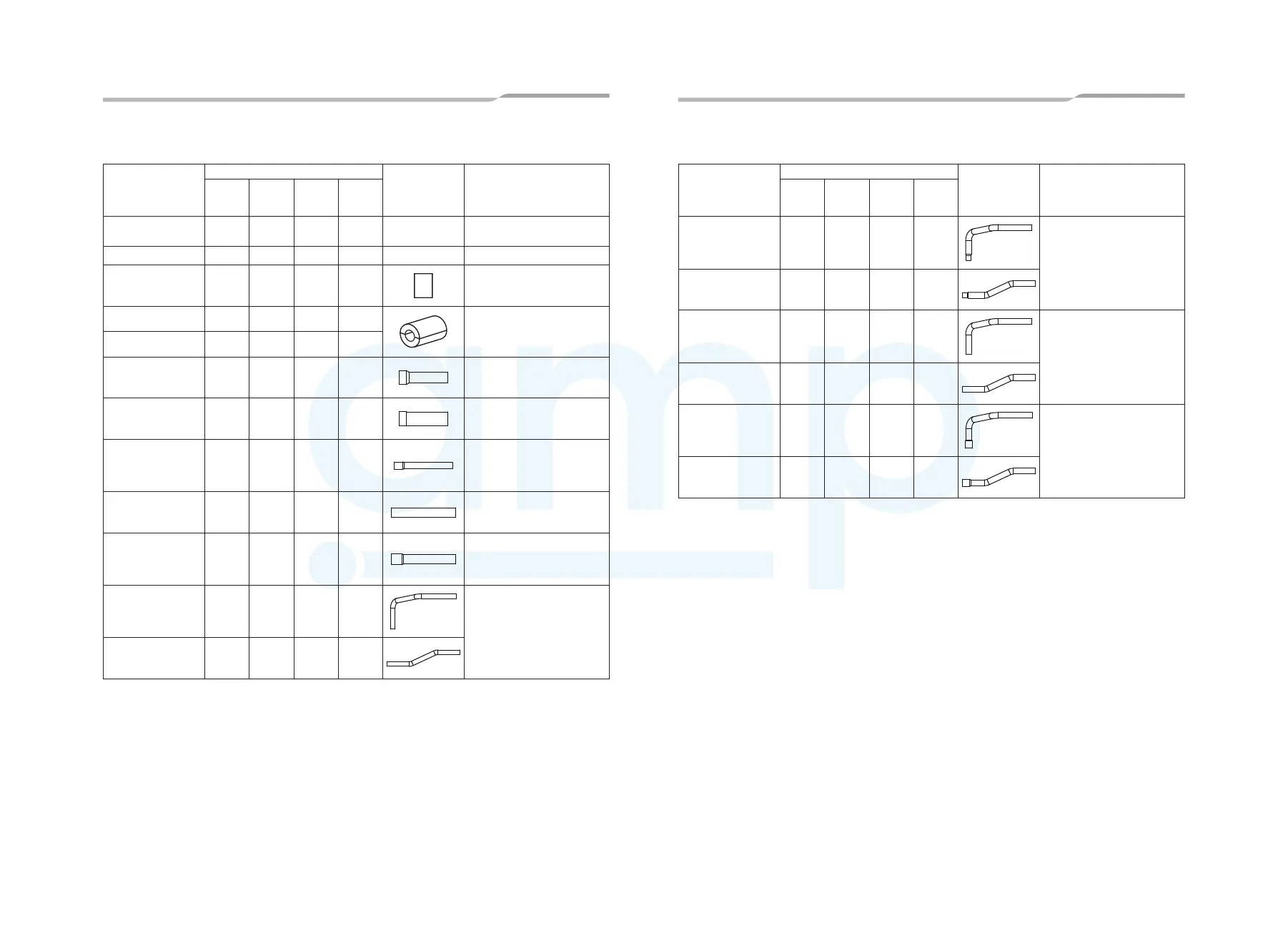

2 Accessory parts
Part name
Q’ty
Shape Usage
MAP080
MAP100
MAP120 MAP140
MAP160
MAP180
MAP200
Owner’s Manual 1111 –
(Be sure to hand it to the
customers.)
Installation Manual 1111 – This manual for installer.
F-GAS label 1111
Fill the items on the label after
adding refrigerant.
Attached clamp filter –––1
For earth line.
Attached binding band –––1
Attached pipe
(Ø22.2 both forward
and downward)
1–––
Suction-side gas pipe
Ø25.4→Ø22.2 pipe fitting
Attached pipe
(Ø28.6 both forward
and downward)
–111
Suction-side gas pipe
Ø25.4→Ø28.6 pipe fitting
Attached pipe
(Ø19.1 both forward
and downward)
1–––
Discharge-side gas pipe
Ø15.9→Ø19.1 pipe fitting
* Flare the connector on the
outdoor unit for installation.
Attached pipe
(Ø19.1 both forward
and downward)
–1––
Discharge-side gas pipe
* Flare the connector on the
outdoor unit for installation.
Attached pipe
(Ø22.2 both forward
and downward)
––11
Discharge-side gas pipe
Ø19.1→Ø22.2 pipe fitting
* Flare the connector on the
outdoor unit for installation.
Attached pipe
(Ø12.7 for draw-out
forward)
1–––
Liquid pipe
* Flare the connector on the
outdoor unit for installation.
Attached pipe
(Ø12.7 for draw-out
downward)
1–––
Part name
Q’ty
Shape Usage
MAP080
MAP100
MAP120 MAP140
MAP160
MAP180
MAP200
Attached pipe
(Ø12.7 for draw-out
forward)
–1––
Liquid pipe
Ø15.9→Ø12.7 pipe fitting
* Flare the connector on the
outdoor unit for installation.
Attached pipe
(Ø12.7 for draw-out
downward)
–1––
Attached pipe
(Ø15.9 for draw-out
forward)
––1–
Liquid pipe
* Flare the connector on the
outdoor unit for installation.
Attached pipe
(Ø15.9 for draw-out
downward)
––1–
Attached pipe
(Ø19.1 for draw-out
forward)
–––1
Liquid pipe
Ø15.9→Ø19.1 pipe fitting
* Flare the connector on the
outdoor unit for installation.
Attached pipe
(Ø19.1 for draw-out
downward)
–––1
1 5 -EN 16 -EN
