32
4RUNNER (EM03M0U)
G ELECTRICAL WIRING ROUTING

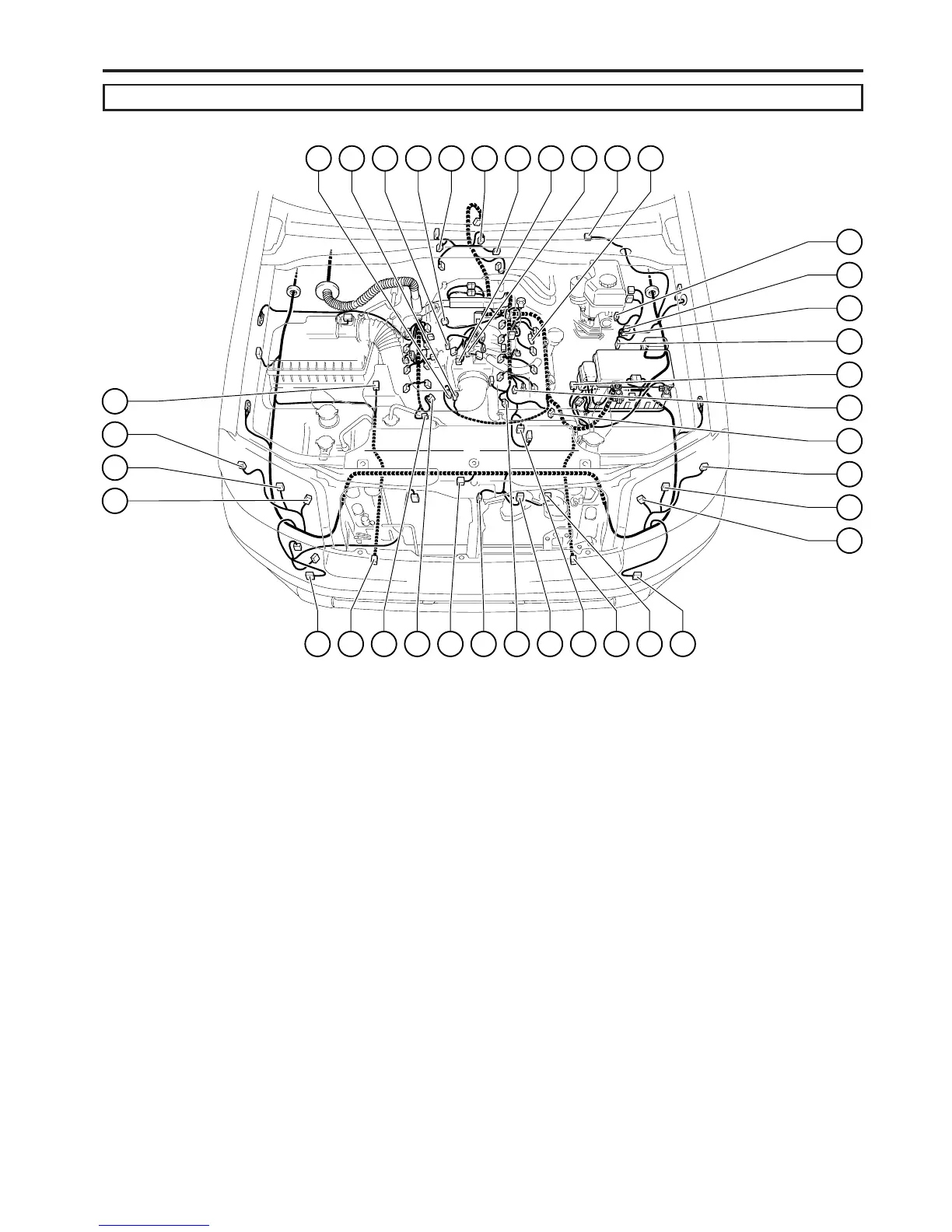

Position of Parts in Engine Compartment
[2UZ–FE]
A10
H4
F6
H3
F8
A9
C2
A2
B1
4
A4
3
A4
4
F5
H2
H1
G2 G1 H8A13A46 E1 H6 A45 A47 A12F7
A1 C1E3A15 C3 E2F2 H9 C4 H10A14 F1
A 1 A/C Ambient Temp. Sensor
A 2 A/C Lock Sensor
A/C Magnetic Clutch
A 9 ABS Speed Sensor Front LH
A10 ABS Speed Sensor Front RH
A12 Air Fuel Ratio Sensor (Bank 1 Sensor 1)
A13 Air Fuel Ratio Sensor (Bank 2 Sensor 1)
A14 Airbag Sensor Front LH
A15 Airbag Sensor Front RH
A43 Air Injection Control Driver
A44 Air Injection Control Driver
A45 Air Pressure Sensor
A46 Air Pump
A47 Air Switching Valve
B14 Brake Fluid Level Warning SW
C 1 Camshaft Position Sensor
C 2 Camshaft Timing Oil Control Valve LH
C 3 Camshaft Timing Oil Control Valve RH
C 4 Crankshaft Position Sensor
E 1 Electronically Controlled Transmission Solenoid
E 2 Engine Coolant Temp. Sensor
E 3 Engine Hood Courtesy SW
F 1 Front Fog Light LH
F 2 Front Fog Light RH
F 5 Front Parking Light LH
Front Turn Signal Light LH
F 6 Front Parking Light RH
Front Turn Signal Light RH
F 7 Front Wiper Motor
F 8 Fuel Pump Resistor
G 1 Generator
G 2 Generator
H 1 Headlight LH (High)
H 2 Headlight LH (Low)
H 3 Headlight RH (High)
H 4 Headlight RH (Low)
H 6 Heated Oxygen Sensor (Bank 1 Sensor 2)
H 8 Heated Oxygen Sensor (Bank 2 Sensor 2)
H 9 Horn (High)
H10 Horn (Low)
