Troubleshooting
5.Improper fabric feed
[Example of phenomenon] [Check item before adjustment]
Is the stitch length dial adjusted properly?
Is the presser foot pressure appropriate?
Is the presser foot lowered firmly?
Check if dirt is accumulated on the feed dog.
Is the feed dog lifted?
Step Item Diagnosing Method Standard
Reference
Page

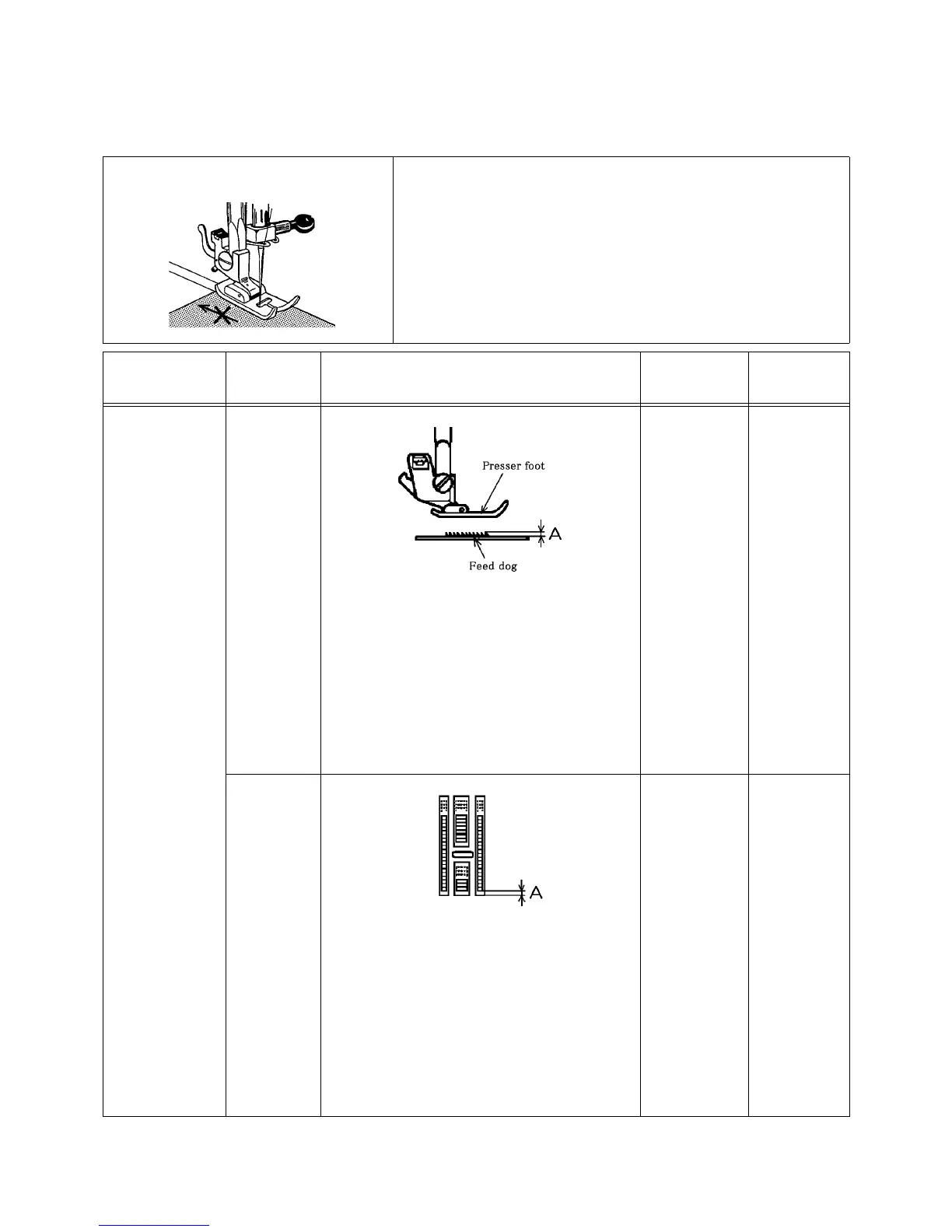

1. Feed dog
Feed dog
height
<Diagnosis>
Bring up the presser foot and attach the
needle on the needle bar.
(Clarification of needle bar position)
When the feed dog is brought to the high-
est position (= upper dead point of needle
bar) by rotating the handweel, measure
the distance (A) between the surface of
needle plate and the upper limit of feed
dog.
A = 1.15 ± 0.1
mm
[Adjustment]
page.34
Fore and
aft position
of feed dog
<Condition>
<SD>
Pattern selection dial: "8"
<2D, 3D>
Stitch length dial: "5"
<Diagnosis>
Remove the presser foot.
When the feed dog is brought to the high-
est position (= upper dead point of needle
bar) by rotating the handweel, measure
the fore and aft position (A) of feed dog.
A = 1.0 ± 0.5
mm
[Adjustment]
page.34
