TP-Link AC1200 User Manual

49
Chapter9 VPN Server

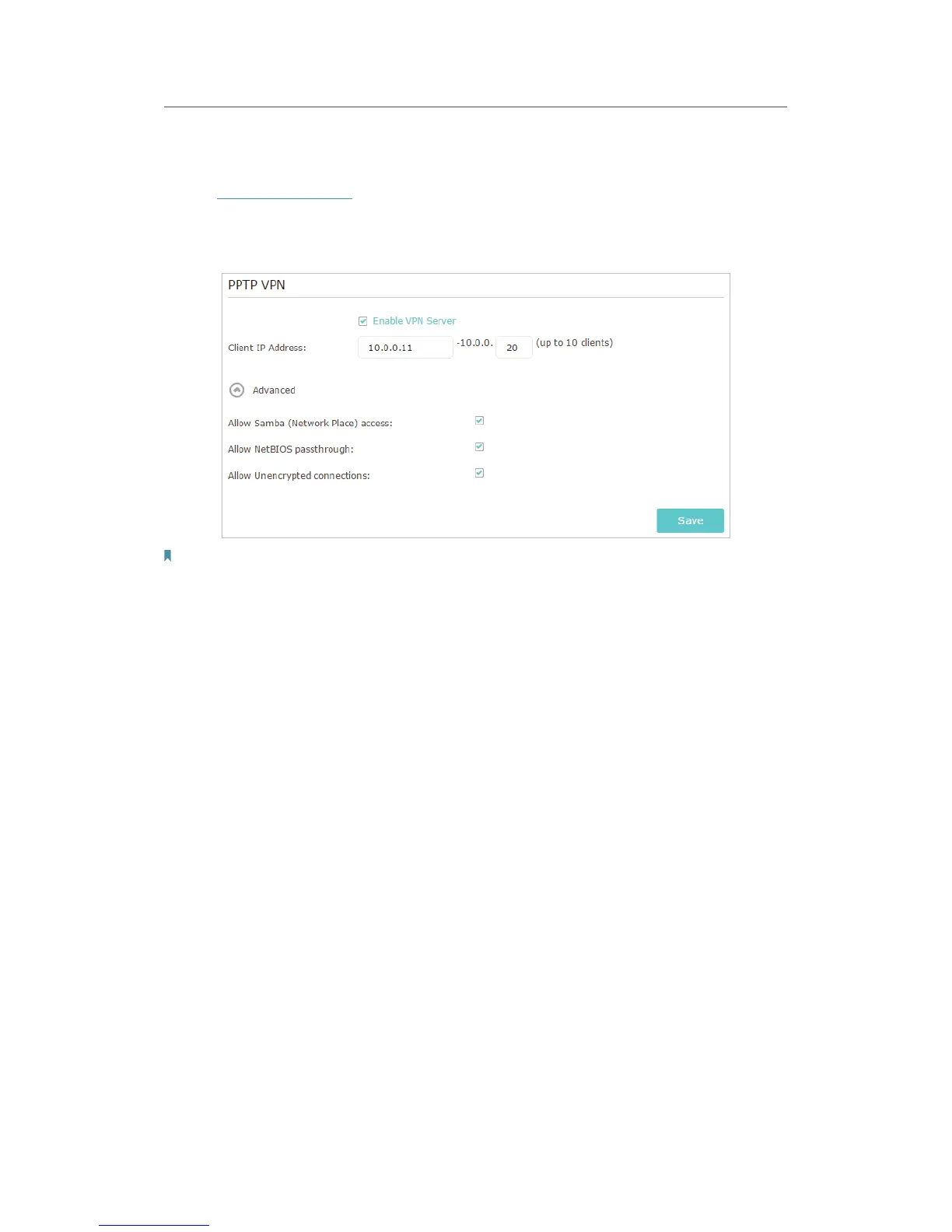

9. 2. 1. Step 1. Set up PPTP VPN Server on Your Router
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to
Advanced > VPN Server > PPTP VPN, and select Enable VPN Server.
Note:
Before you enable
VPN Server, we recommend you configure Dynamic DNS Service (recommended) or assign a static
IP address for router’s WAN port and synchronize your
System Time with internet.
3. In the Client IP Address filed, enter the range of IP addresses (up to 10) that can be
leased to the devices by the PPTP VPN server.
4. Click
Advanced to set the PPTP connection permission according to your needs.
• Select
Allow Samba (Network Place) access to allow your VPN device to access
your local Samba server.
• Select
Allow NetBIOS passthrough to allow your VPN device to access your
Samba server using NetBIOS name.
• Select
Allow Unencrypted connections to allow unencrypted connections to
your VPN server.
5. Click
Save.
6. Configure the PPTP VPN connection account for the remote device, you can create
up to 16 accounts.

TP-Link AC1200 Specifications

General

Type	-
Windows operating systems supported	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100/1000Base-T(X)
Security algorithms	64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK
Wi-Fi data rate (max)	867 Mbit/s
Product color	White
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 30 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45)
Ethernet LAN (RJ-45) ports	1
Power consumption (typical)	9 W
Antennas quantity	3
Antenna gain level (max)	3 dBi
Sustainability certificates	RoHS

Weight and Dimensions

Depth	125 mm
Width	202 mm
Height	86 mm
