TP-Link Archer A10 User Manual

69
Chapter 13
Customize Your Network Settings

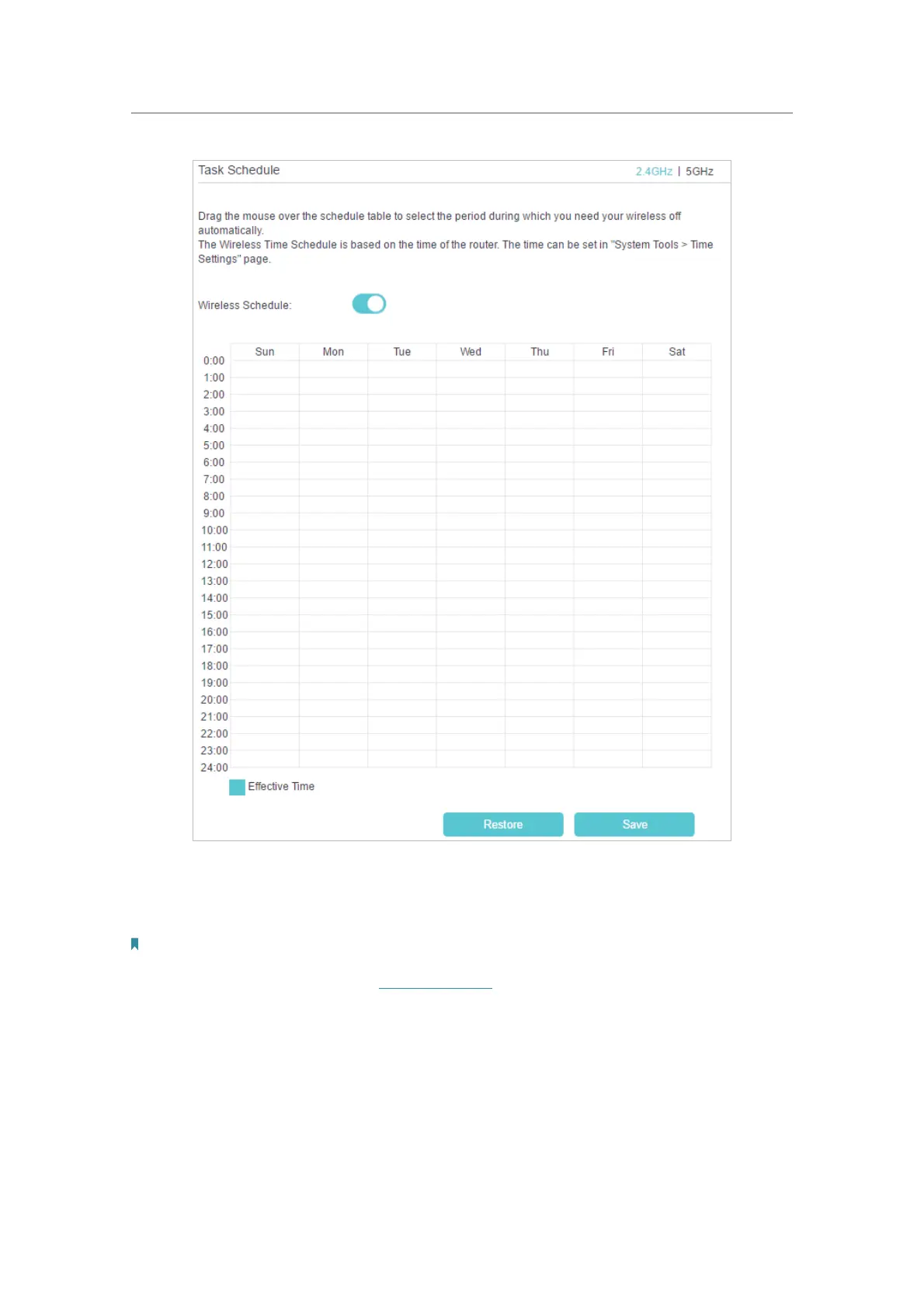

4. Drag the mouse over the schedule table to select the period during which you need
your wireless off automatically.
5. Click
Save.
Note:
• The Effective Time Schedule is based on the time of the Router. Make sure that the time of the router is correct before
applying this function. For details, refer to Set Up System Time.
• The wireless LEDs (2.4GHz and 5GHz) will be off if the wireless schedule takes effect.
• The wireless network(s) will be automatically turned on after the time period you have set.

TP-Link Archer A10 Specifications

General

Output current	1.5 A
Output voltage	12 V
Power source type	DC
Product type	Tabletop router
On/off switch	Yes
Product color	Black
LED indicators	LTE, Link, Power
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1733 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Antennas quantity	3
3G	-
Ethernet LAN (RJ-45) ports	4
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Security algorithms	64-bit WEP, 128-bit WEP, SSID, WEP, WPA, WPA-PSK, WPA2
Switching protocols	IPv4, IPv6
Certification	FCC, CE, RoHS, RCM, IC, NCC, BSMI
Windows operating systems supported	Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP

Weight and Dimensions

Depth	164 mm
Width	216 mm
Height	36.8 mm
