TP-Link Archer AX75 User Manual

97
Chapter 15
Manage the Router

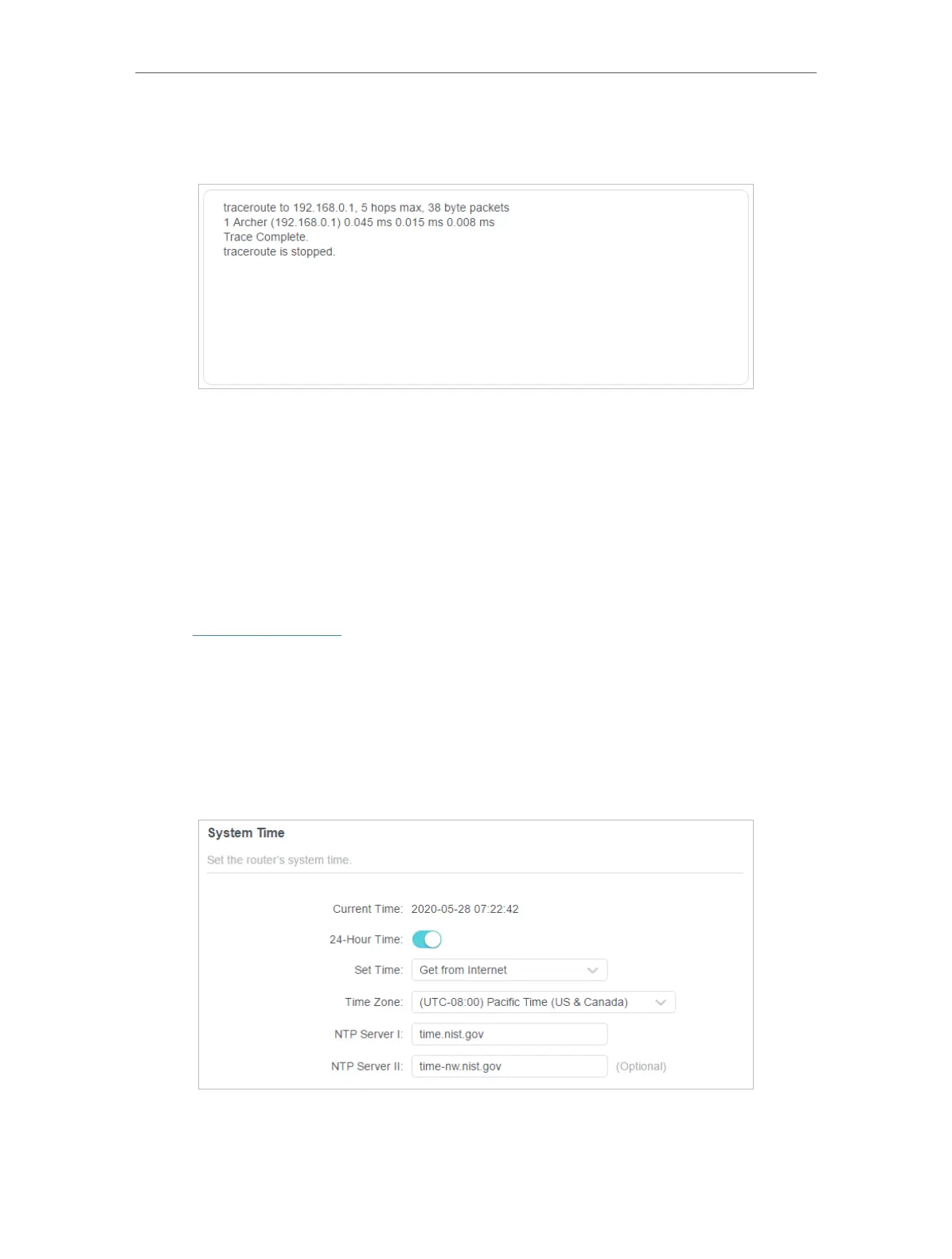

The figure below indicates the proper connection between the router and the Yahoo
server (www.Yahoo.com) tested through Traceroute.
15. 9. Set System Time and Language
System time is the time displayed while the router is running. The system time you
configure here will be used for other time-based functions like Parental Controls. You
can choose the way to obtain the system time as needed.
System language is the language displayed when you log into the router. You can
change the system language as needed.
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Advanced > System > Time & Language.
• To get time from the internet:
1. Enable 24-Hour Time if you want the time to display in a 24-hour way.
2. In the Set Time field, select Get from Internet.
3. Select your local Time Zone from the drop-down list.

TP-Link Archer AX75 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Modulation	OFDM
Wi-Fi band	Tri-band (2.4 GHz / 5 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	2402 Mbit/s
WLAN data transfer rate (first band)	574 Mbit/s
VPN server	OpenVPN, PPTP, L2TP
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	2.4 GHz: 11ac VHT20 MCS0 -97dBm, 11ac VHT20 MCS11 -66dBm, 11ac VHT40 MCS0 -95dBm, 11ac VHT40 MCS11 -64dBm, 11ax HE20 MCS0 -95dBm, 11ax HE20 MCS11 -64dBm, 11ax HE40 MCS0:-92dBm, 11ac HE40 MCS11:-62dBm 5 GHz: 11ac VHT20 MCS0-91dBm, 11ac VHT20 MCS11-60dBm, 11ac VHT40 MCS0 -89dBm, 11ac VHT40 MCS11 -57dBm, 11ac VHT80 MCS0 -86dBm, 11ac VHT80 MCS11 -54dBm, 11ac VHT160 MCS0 -84dBm, 11ac VHT160 MCS11 -53dBm, 11ax HE20 MCS0 -90dBm, 11ax HE20 MCS11 -60dBm, 11ax HE40 MCS0-88dBm, 11ax HE40 MCS11-57dBm, 11ax HE80 MCS0 -85dBm, 11ax HE80 MCS11 -54dBm, 11ax HE160 MCS0 -83dBm, 11ax HE160 MCS11 -53dBm
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Number of guest networks (5 GHz)	2
Number of guest networks (2.4 GHz)	1
Mobile network generation	-
Ethernet LAN (RJ-45) ports	4
Security algorithms	WPA, WPA2, WPA2-Enterprise, WPA3
Product type	Tabletop router
Product color	Black
LED indicators	Power, WLAN, WPS
Transmit power	\u003C24dBm (5.25GHz~5.35GHz&5.47GHz~5.725GHz), \u003C28dBm (5.15GHz~5.25GHz&5.725GHz~5.825GHz), \u003C29dBm (2.4GHz) dBmW
Antennas quantity	6
Internal memory	512 MB
Processor frequency	1700 MHz
Processor manufacturer	Broadcom
Output current	2.5 A
Output voltage	12 V
Power source type	DC
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Browser supported	Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled
Cables included	LAN (RJ-45)
Sustainability certificates	RoHS

Weight and Dimensions

Depth	147.2 mm
Width	272.5 mm
Height	49.2 mm
