TP-Link Archer AX75 User Manual

5
Chapter 1
Get to Know About Your Router

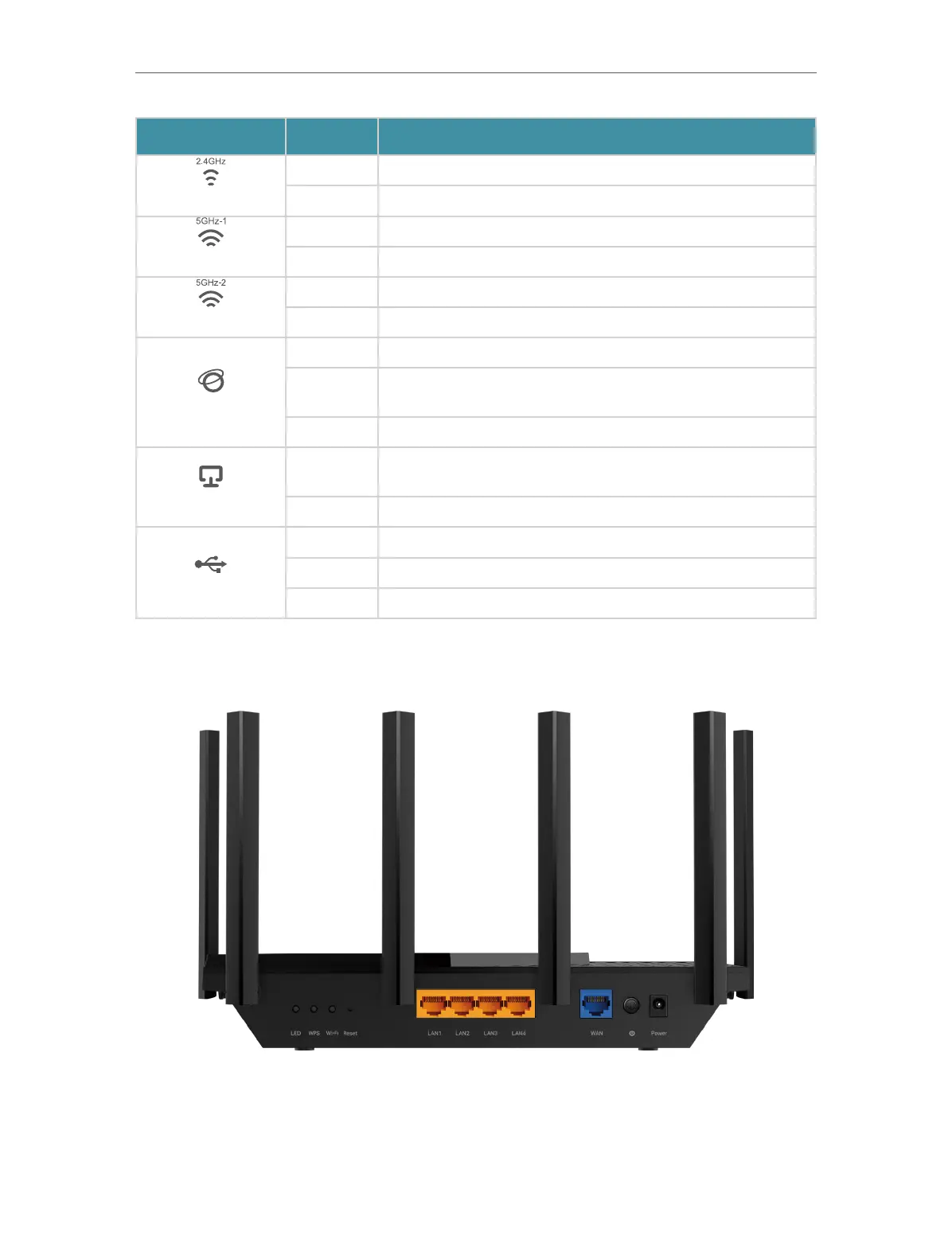

Name Status Indication
(2.4 GHz Wireless)
On The 2.4 GHz wireless band is enabled.
Off The 2.4 GHz wireless band is disabled.
(5 GHz-1 Wireless)
On The 5 GHz-1 wireless band is enabled.
Off The 5 GHz-1 wireless band is disabled.
(5 GHz-2 Wireless)
On The 5 GHz-2 wireless band is enabled.
Off The 5 GHz-2 wireless band is disabled.
(Internet)
Green On Internet service is available.
Orange On
The router’s Internet port is connected, but the internet service
is not available.
Off The router’s Internet port is unplugged.
(Ethernet)
On
At least one powered-on device is connected to the router’s
Ethernet port.
Off No powered-on device is connected to the router’s Ethernet port.
(USB)
On The inserted USB device is ready to use.
Blinking A USB device is being identified.
Off No device is plugged into the USB port.
1. 2. 2. Back Panel
The following parts (view from left to right) are located on the back panel.

TP-Link Archer AX75 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Modulation	OFDM
Wi-Fi band	Tri-band (2.4 GHz / 5 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	2402 Mbit/s
WLAN data transfer rate (first band)	574 Mbit/s
VPN server	OpenVPN, PPTP, L2TP
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	2.4 GHz: 11ac VHT20 MCS0 -97dBm, 11ac VHT20 MCS11 -66dBm, 11ac VHT40 MCS0 -95dBm, 11ac VHT40 MCS11 -64dBm, 11ax HE20 MCS0 -95dBm, 11ax HE20 MCS11 -64dBm, 11ax HE40 MCS0:-92dBm, 11ac HE40 MCS11:-62dBm 5 GHz: 11ac VHT20 MCS0-91dBm, 11ac VHT20 MCS11-60dBm, 11ac VHT40 MCS0 -89dBm, 11ac VHT40 MCS11 -57dBm, 11ac VHT80 MCS0 -86dBm, 11ac VHT80 MCS11 -54dBm, 11ac VHT160 MCS0 -84dBm, 11ac VHT160 MCS11 -53dBm, 11ax HE20 MCS0 -90dBm, 11ax HE20 MCS11 -60dBm, 11ax HE40 MCS0-88dBm, 11ax HE40 MCS11-57dBm, 11ax HE80 MCS0 -85dBm, 11ax HE80 MCS11 -54dBm, 11ax HE160 MCS0 -83dBm, 11ax HE160 MCS11 -53dBm
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Number of guest networks (5 GHz)	2
Number of guest networks (2.4 GHz)	1
Mobile network generation	-
Ethernet LAN (RJ-45) ports	4
Security algorithms	WPA, WPA2, WPA2-Enterprise, WPA3
Product type	Tabletop router
Product color	Black
LED indicators	Power, WLAN, WPS
Transmit power	\u003C24dBm (5.25GHz~5.35GHz&5.47GHz~5.725GHz), \u003C28dBm (5.15GHz~5.25GHz&5.725GHz~5.825GHz), \u003C29dBm (2.4GHz) dBmW
Antennas quantity	6
Internal memory	512 MB
Processor frequency	1700 MHz
Processor manufacturer	Broadcom
Output current	2.5 A
Output voltage	12 V
Power source type	DC
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Browser supported	Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled
Cables included	LAN (RJ-45)
Sustainability certificates	RoHS

Weight and Dimensions

Depth	147.2 mm
Width	272.5 mm
Height	49.2 mm
