TP-Link Archer AX75 User Manual

4
Chapter 1
Get to Know About Your Router
1. 1. Product Overview
TP-Link AX router, with next-generation 802.11ax Wi-Fi Technology, achieves Wi-
Fi performance at its ultimate level. The revolutionary combination of OFDMA and
1024QAM improve throughput by 4 times and dramatically increase the whole network
capacity and efficiency. It’s also backwards compatible with 802.11a/b/g/n/ac.
Moreover, it is simple and convenient to set up and use the TP-Link router due to its
intuitive web interface and the powerful Tether app.

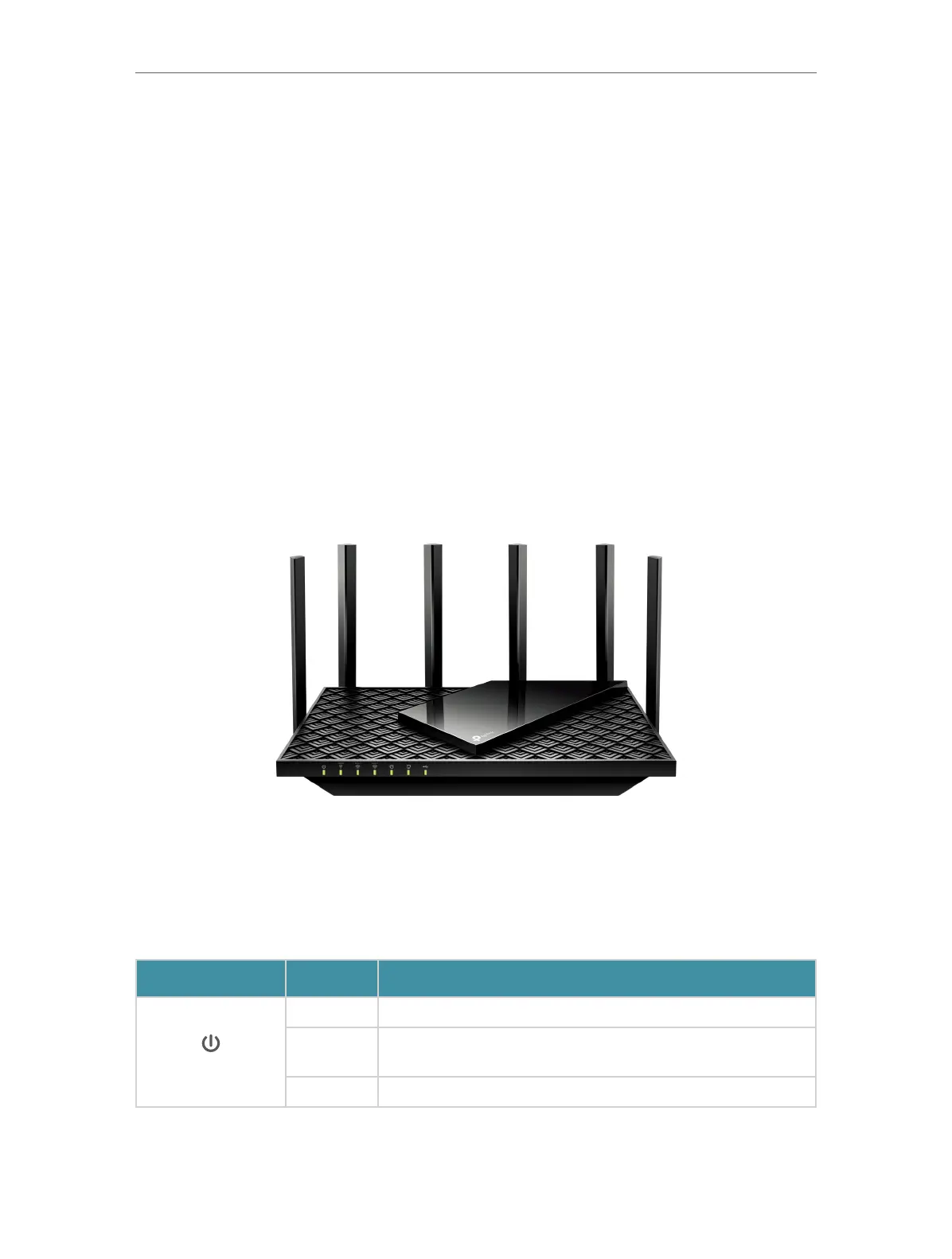

1. 2. Appearance
1. 2. 1. Top Panel
The router’s LEDs (view from left to right) are located on the front. You can check the
router’s working status by following the LED Explanation table.
LED Explanation
Name Status Indication
(Power)
On The system has started up successfully.
Flashing
The system is starting up or the firmware is being upgraded. Do
not disconnect or power off your router.
Off Power is off.

TP-Link Archer AX75 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Modulation	OFDM
Wi-Fi band	Tri-band (2.4 GHz / 5 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	2402 Mbit/s
WLAN data transfer rate (first band)	574 Mbit/s
VPN server	OpenVPN, PPTP, L2TP
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	2.4 GHz: 11ac VHT20 MCS0 -97dBm, 11ac VHT20 MCS11 -66dBm, 11ac VHT40 MCS0 -95dBm, 11ac VHT40 MCS11 -64dBm, 11ax HE20 MCS0 -95dBm, 11ax HE20 MCS11 -64dBm, 11ax HE40 MCS0:-92dBm, 11ac HE40 MCS11:-62dBm 5 GHz: 11ac VHT20 MCS0-91dBm, 11ac VHT20 MCS11-60dBm, 11ac VHT40 MCS0 -89dBm, 11ac VHT40 MCS11 -57dBm, 11ac VHT80 MCS0 -86dBm, 11ac VHT80 MCS11 -54dBm, 11ac VHT160 MCS0 -84dBm, 11ac VHT160 MCS11 -53dBm, 11ax HE20 MCS0 -90dBm, 11ax HE20 MCS11 -60dBm, 11ax HE40 MCS0-88dBm, 11ax HE40 MCS11-57dBm, 11ax HE80 MCS0 -85dBm, 11ax HE80 MCS11 -54dBm, 11ax HE160 MCS0 -83dBm, 11ax HE160 MCS11 -53dBm
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Number of guest networks (5 GHz)	2
Number of guest networks (2.4 GHz)	1
Mobile network generation	-
Ethernet LAN (RJ-45) ports	4
Security algorithms	WPA, WPA2, WPA2-Enterprise, WPA3
Product type	Tabletop router
Product color	Black
LED indicators	Power, WLAN, WPS
Transmit power	\u003C24dBm (5.25GHz~5.35GHz&5.47GHz~5.725GHz), \u003C28dBm (5.15GHz~5.25GHz&5.725GHz~5.825GHz), \u003C29dBm (2.4GHz) dBmW
Antennas quantity	6
Internal memory	512 MB
Processor frequency	1700 MHz
Processor manufacturer	Broadcom
Output current	2.5 A
Output voltage	12 V
Power source type	DC
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Browser supported	Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled
Cables included	LAN (RJ-45)
Sustainability certificates	RoHS

Weight and Dimensions

Depth	147.2 mm
Width	272.5 mm
Height	49.2 mm
