TP-Link Archer C7 User Manual

Archer C7
AC1750 Wireless Dual Band Gigabit Router
- 102 -

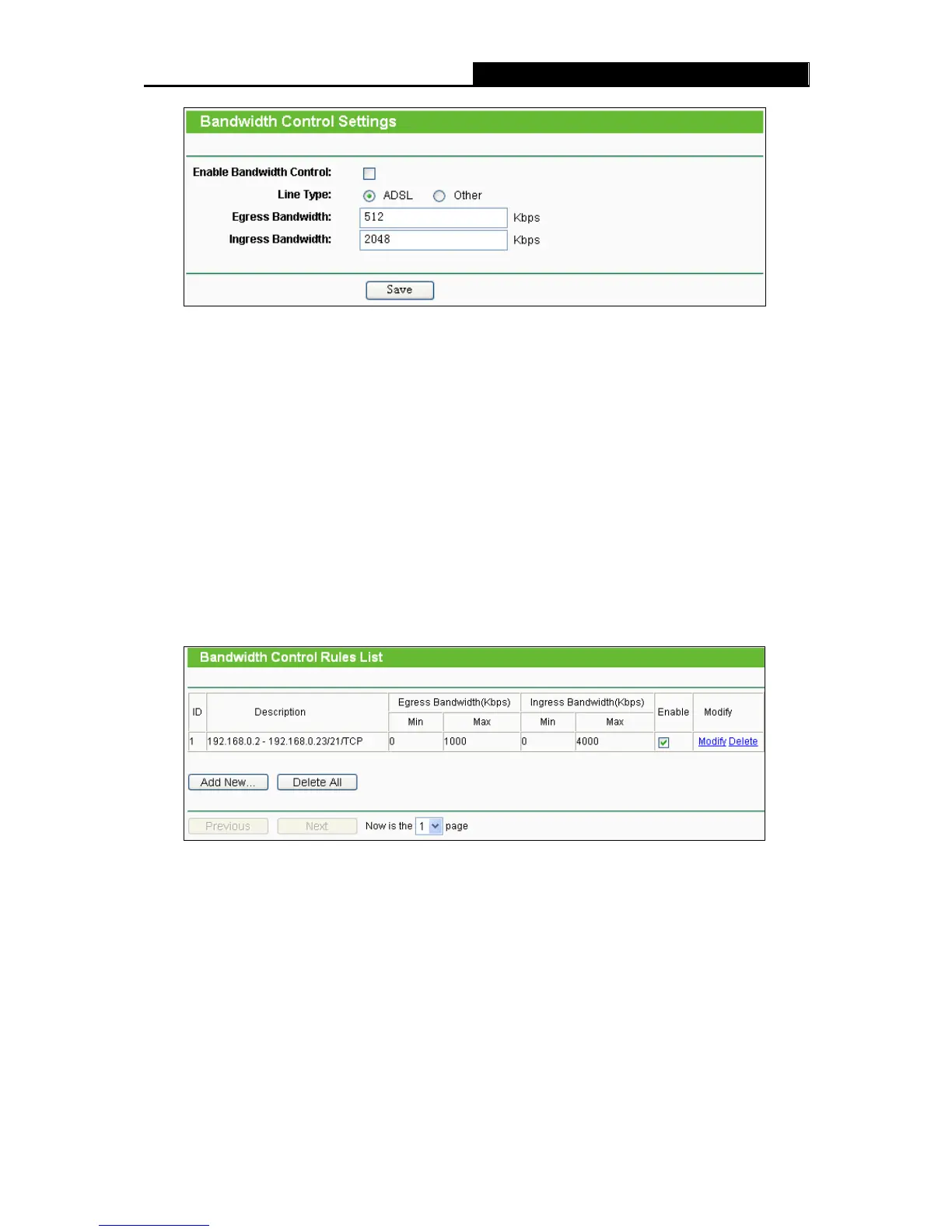

Figure 4-100 Bandwidth Control Settings
 Enable Bandwidth Control - Check this box so that the Bandwidth Control settings can take
effect.
 Line Type - Select the right type for you network connection. If you don’t know how to choose,
please ask your ISP for the information.
 Egress Bandwidth - The upload speed through the Internet port
.
 Ingress Bandwidth - The download speed through the Internet port.
4.17.2 Rules List
Choose menu “Bandwidth Control
→
Rules List”, and then you can view and configure the
Bandwidth Control rules in the screen below.
Figure 4-101 Bandwidth Control Rules List
 Description - This is the information about the rules such as address range.
 Egress bandwidth - This field displays the max and mix upload bandwidth through the
Internet port, the default is 0.
 Ingress bandwidth - This field displays the max and mix download bandwidth through the
Internet port, the default is 0.
 Enable - This displays the status of the rule.
 Modify - Click Modify to edit the rule. Click Delete to delete the rule.

TP-Link Archer C7 Specifications

General

VPN support	PPTP, L2TP, IPSec
Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Number of guest networks (2.4 GHz)	1
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1300 Mbit/s
WLAN data transfer rate (second band)	450 Mbit/s
WLAN data transfer rates supported	6, 54, 450, 1300 Mbit/s
Memory card slot(s)	-
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	4
Supported network protocols	IPv4, IPv6
Firewall security	DoS, SPI Firewall, IP and MAC Address Binding
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Antennas quantity	3
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45)
Mac operating systems supported	macOS
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows XP
Product type	Tabletop router
Product color	Black
LED indicators	LAN, Power, Status, WLAN, WPS
SIM card slot	No
WAN connection type	RJ-45
Output current	1.5 A
Output voltage	12 V
Power source type	DC
Certification	CE, FCC, RoHS
Package depth	240 mm
Package width	330 mm
Package height	80 mm
Package weight	900 g

Weight and Dimensions

Depth	160 mm
Width	243.5 mm
Height	32.7 mm
