 Enable SSID Broadcast - When wireless clients survey the local area for wireless networks
to associate with, they will detect the SSID broadcast by the router. If you select the Enable
SSID Broadcast checkbox, the Wireless router will broadcast its name (SSID) on the air.
 Enable WDS Bridging - Check this box to enable WDS. With this function, the router can
bridge two or more WLANs. If this checkbox is selected, you will have to set the following
parameters as shown in Figure 4-15. Make sure the following settings are correct.

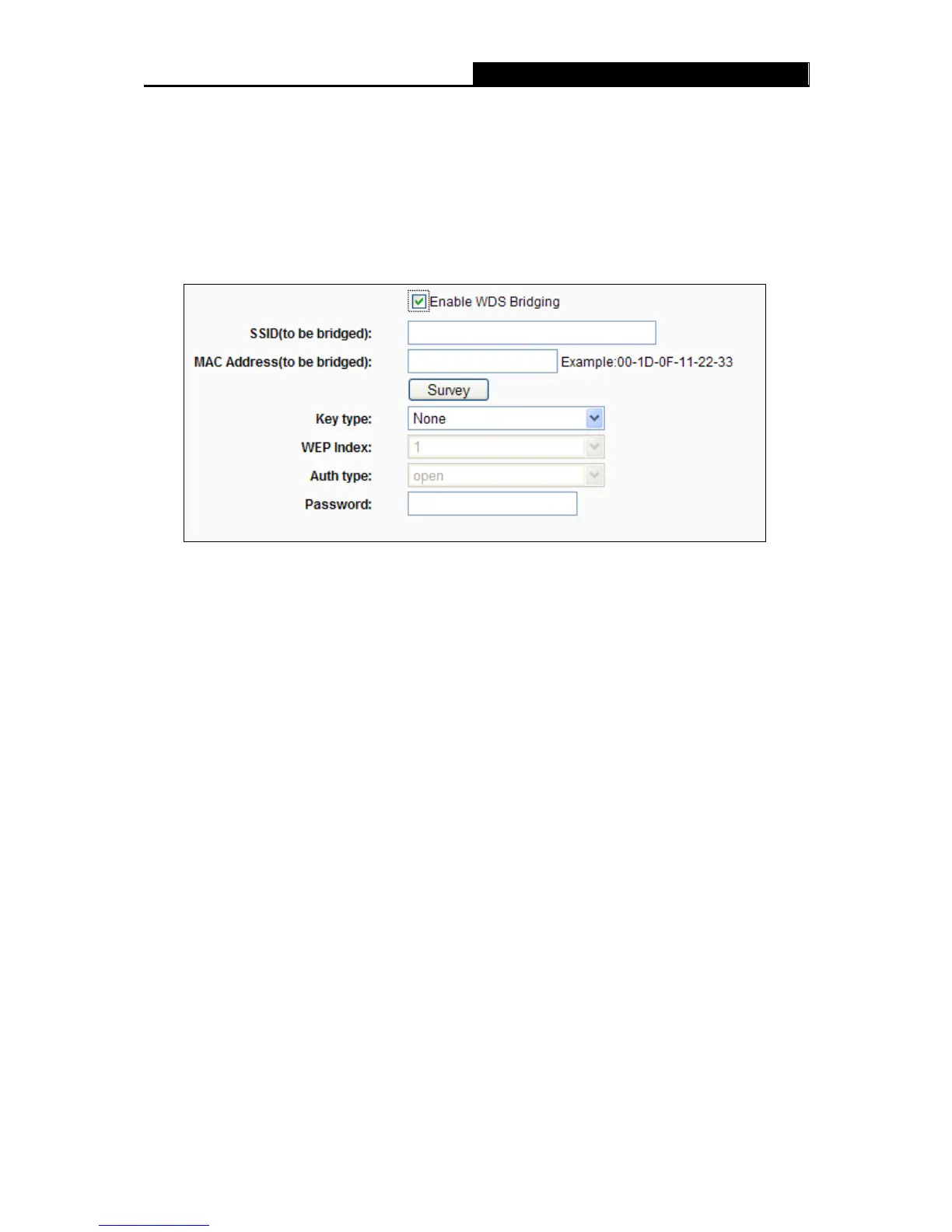

Figure 4-15 WDS Setting
 SSID (to be bridged) - The SSID of the AP your router is going to connect to as a client.
You can also use the search function to select the SSID to join.
 MAC Address (to be bridged) - The BSSID of the AP your router is going to connect to
as a client. You can also use the search function to select the BSSID to join.
 Survey - Click this button, you can search the AP which runs in the current channel.
 Key type - This option should be chosen according to the AP's security configuration. It
is recommended that the security type is the same as your AP's security type
 WEP Index - This option should be chosen if the key type is WEP(ASCII) or WEP(HEX).
It indicates the index of the WEP key.
 Auth Type - This option should be chosen if the key type is WEP(ASCII) or WEP(HEX).
It indicates the authorization type of the Root AP.
 Password - If the AP your router is going to connect needs password, you need to fill
the password in this blank.
4.6.2 WPS
Choose menu “Wireless 2.4GHz
→
WPS”, you can the screen as shown in Figure 4-16. This
section will guide you to add a new wireless device to an existing network quickly by WPS (Wi-Fi
Protected Setup) function.

TP-Link Archer C7 Specifications

General

VPN support	PPTP, L2TP, IPSec
Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Number of guest networks (2.4 GHz)	1
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1300 Mbit/s
WLAN data transfer rate (second band)	450 Mbit/s
WLAN data transfer rates supported	6, 54, 450, 1300 Mbit/s
Memory card slot(s)	-
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	4
Supported network protocols	IPv4, IPv6
Firewall security	DoS, SPI Firewall, IP and MAC Address Binding
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Antennas quantity	3
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45)
Mac operating systems supported	macOS
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows XP
Product type	Tabletop router
Product color	Black
LED indicators	LAN, Power, Status, WLAN, WPS
SIM card slot	No
WAN connection type	RJ-45
Output current	1.5 A
Output voltage	12 V
Power source type	DC
Certification	CE, FCC, RoHS
Package depth	240 mm
Package width	330 mm
Package height	80 mm
Package weight	900 g

Weight and Dimensions

Depth	160 mm
Width	243.5 mm
Height	32.7 mm
