TP-Link NC210 User Manual

NC210 HD Wi-Fi Cloud Camera
11

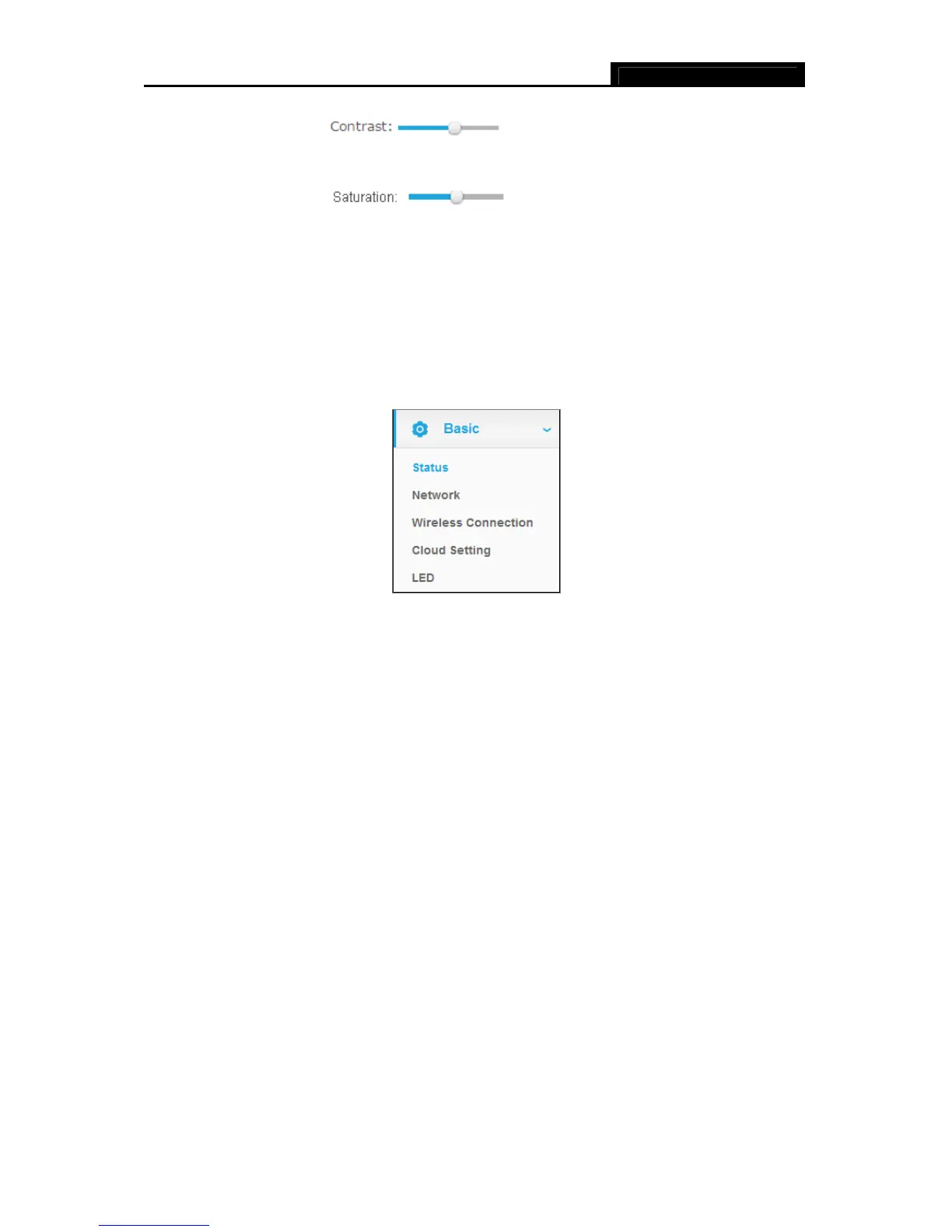

 Contrast: Drag the slider to adjust the contrast level of the
camera. Large value will contrast the current displayed screen heavily.
 Saturation: Drag the
slider to adjust the saturation level of the
camera. Large value will saturate the current displayed screen to be more colorful.
 Preset: Click the Preset button to restore to factory image settings.
4.3 Basic
Click the Basic menu to display the submenus including Status, Network, Wireless Connection,
Cloud Setting, and LED.
4.3.1 Basic > Status
The Status page displays the current configuration information of the camera. All the information
is read-only.

TP-Link NC210 Specifications

General

Type	IP security camera
PTZ control	-
Antenna type	Internal
Placement supported	Indoor
Connectivity technology	Wireless
Interface	USB 2.0
Microphone in	Yes
Ethernet LAN (RJ-45) ports	0
Form factor	Cube
Mounting type	Desk/Wall
Product color	White
Full HD	No
Total megapixels	1 MP
Maximum resolution	1280 x 720 pixels
Video formats supported	H.264
Minimum illumination	- lx
Field of view (FOV) angle	130 °
Sensor type	CMOS
Optical sensor size	1/4 \
Focal length range	2 - 2.8 mm
Number of cameras	1
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi data rate (max)	150 Mbit/s
Mobile operating systems supported	Android 3.0, Android 3.1, Android 3.2, Android 4.1, Android 4.2, Android 4.3, Android 4.4, Android 5.0, Android 5.1, iOS 7.0, iOS 7.1, iOS 7.2, iOS 8.2, iOS 8.3, iOS 8.4, iOS 9.0, iOS 9.1, iOS 9.2, iOS 9.3
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
DC output current	1 A
DC output voltage	5

Weight and Dimensions

Depth	68.4 mm
Width	75.7 mm
Height	134.6 mm
Package depth	128 mm
Package width	79.5 mm
Package height	223 mm
