NC210 HD Wi-Fi Cloud Camera
17

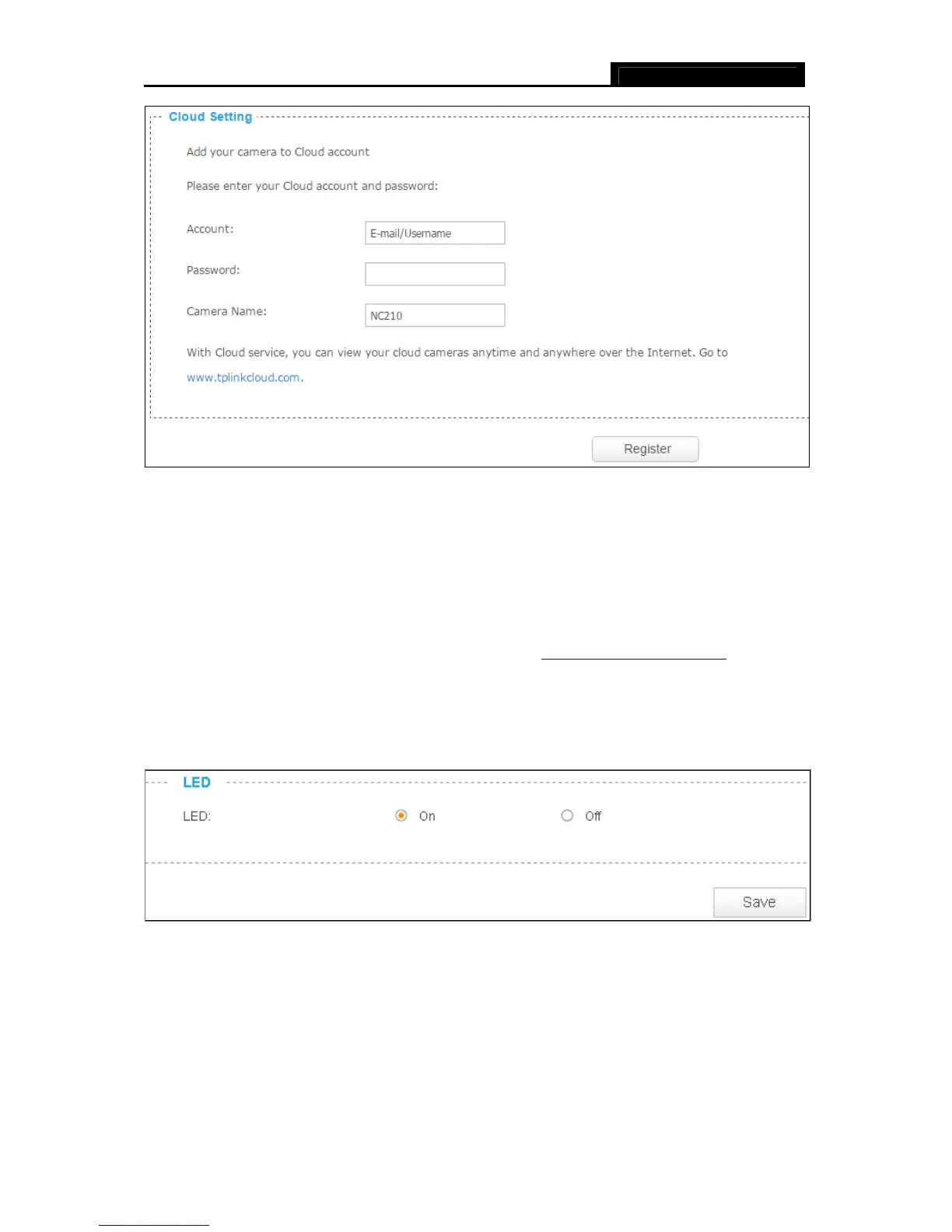

 Account: Enter your TP-LINK Cloud account, either E-mail address or username is allowed.
 Password: Enter your TP-LINK Cloud account’s password.
 Camera Name: The default value is the camera model. You can change it to an
easy-to-remember one. Camera name can contain up to 31 characters. It cannot contain the
following characters: \ / : = & ‘ “ < > { }.
After your camera is registered successfully, you can go to http://www.tplinkcloud.com
to view it.
4.3.5 Basic > LED
The camera’s LED is on by default. If you want to turn it off, select Off and click Save.
4.4 Advanced
Click the Advanced menu to display the submenus including Status, Network, Wireless
Connection, Cloud Setting, Video, Sound Detection, Motion Detection and LED.

TP-Link NC210 Specifications

General

Type	IP security camera
PTZ control	-
Antenna type	Internal
Placement supported	Indoor
Connectivity technology	Wireless
Interface	USB 2.0
Microphone in	Yes
Ethernet LAN (RJ-45) ports	0
Form factor	Cube
Mounting type	Desk/Wall
Product color	White
Full HD	No
Total megapixels	1 MP
Maximum resolution	1280 x 720 pixels
Video formats supported	H.264
Minimum illumination	- lx
Field of view (FOV) angle	130 °
Sensor type	CMOS
Optical sensor size	1/4 \
Focal length range	2 - 2.8 mm
Number of cameras	1
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi data rate (max)	150 Mbit/s
Mobile operating systems supported	Android 3.0, Android 3.1, Android 3.2, Android 4.1, Android 4.2, Android 4.3, Android 4.4, Android 5.0, Android 5.1, iOS 7.0, iOS 7.1, iOS 7.2, iOS 8.2, iOS 8.3, iOS 8.4, iOS 9.0, iOS 9.1, iOS 9.2, iOS 9.3
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
DC output current	1 A
DC output voltage	5

Weight and Dimensions

Depth	68.4 mm
Width	75.7 mm
Height	134.6 mm
Package depth	128 mm
Package width	79.5 mm
Package height	223 mm
