2.3 Configure VLAN
Wireless VLAN is used to set VLANs for the wireless networks. With this feature, the EAP
can work together with the switches supporting 802.1Q VLAN. Traffic from the clients
in different wireless networks is added with different VLAN tags according to the VLAN
settings of the wireless networks. Then the wireless clients in different VLANs cannot
directly communicate with each other. Note that the traffic from the wired clients will not
be added with VLAN tags.

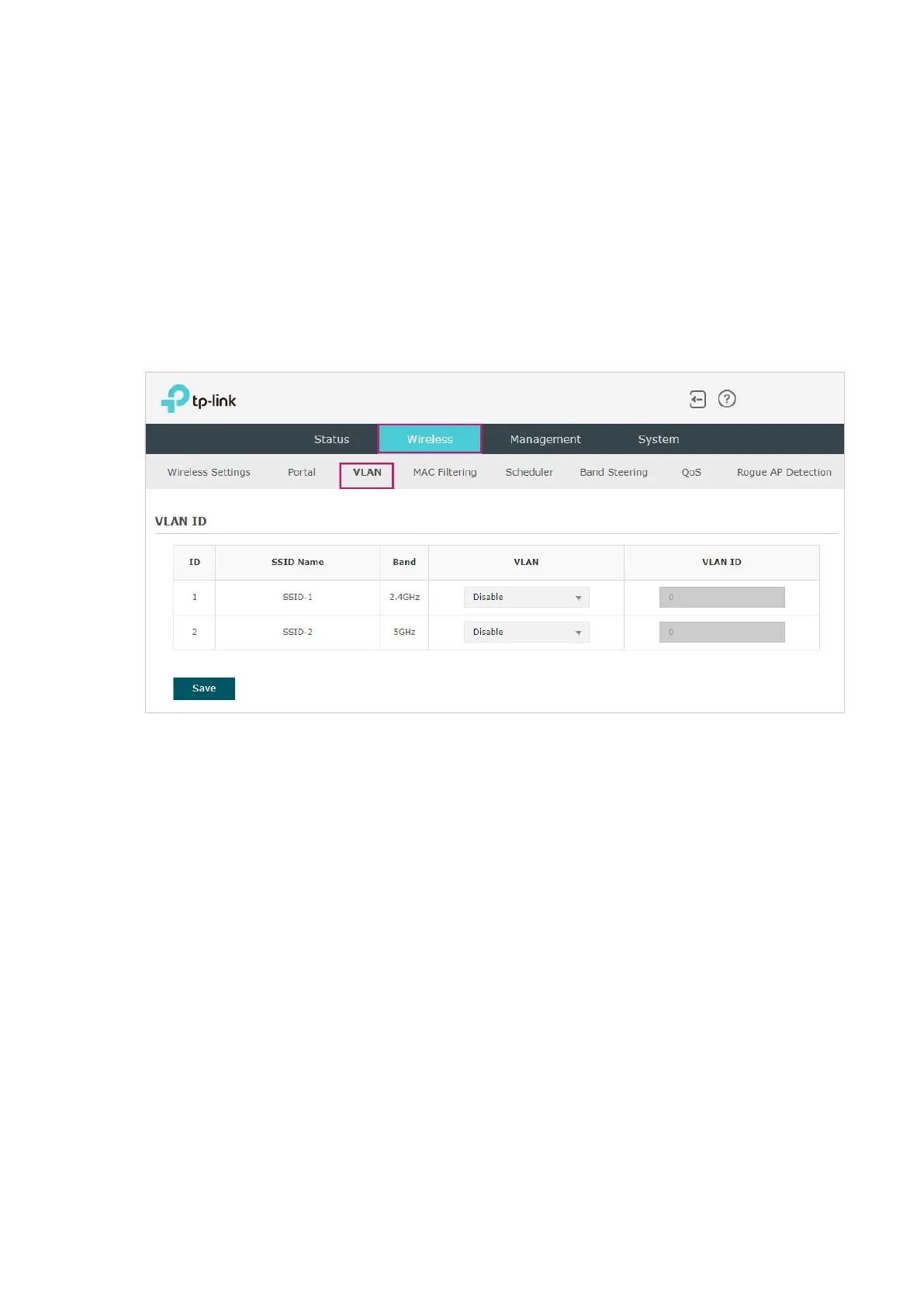

To configure VLAN for the wireless network, go to the Wireless > VLAN page.
Follow the steps below to configure VLAN on this page.
1. Select the specific SSID in the list to configure the VLAN.
2. In the VLAN column and select Enable to enable the VLAN function on the SSID.
3. Specify the VLAN ID for the wireless network in the VLAN ID column. Every VLAN ID
represents a different VLAN. It supports maximum 8 VLANs per frequency band. The
VLAN ID range is 0 to 4094. 0 is used to disable VLAN tagging.
4. Click Save.

TP-Link Omada EAP235-Wall Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1167 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
WLAN data transfer rate (second band)	867 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
USB 2.0 ports quantity	-
Ethernet LAN (RJ-45) ports	4
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, HTTPS, SSH, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA2-Enterprise, WPA2-PSK
Number of SSID supported	16
Service Set Identifier (SSID) features	Multiple SSIDs
Placement	Wall
Product color	White
LED indicators	LAN, Power, Status, WAN, WLAN
Antenna features	Integrated antenna
Antennas quantity	2
Antenna gain level (max)	4 dBi
Power source type	PoE
Power consumption (typical)	24.4 W
Power over Ethernet (PoE) type supported	Active PoE, Passive PoE
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Package type	Box
Package depth	184 mm
Package width	117 mm
Package height	33 mm
Package weight	300 g
Number of products included	1 pc(s)
MIMO type	Multi User MIMO
Frequency band	2.4 - 5 GHz
Virtual LAN features	Port-based VLAN, VLAN mapping
Transmitting power (CE)	20 - 23 dBm
Transmitting power (FCC)	21 dBm
Harmonized System (HS) code	85176990
Sustainability certificates	CE, Federal Communications Commission (FCC), RoHS
Compatible operating systems	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10

Weight and Dimensions

Depth	20 mm
Width	143 mm
Height	86 mm
