TP-Link TL-R480T+ Installation Guide

02
Load Balance Broadband Router
Interface Description
Interface Description
WAN
The WAN port is designed to connect the Router to the interface provided
by ISP via the RJ45 cable
LAN
The LAN port is designed to connect the Router to the local PCs or
switches by the RJ45 cable
Console
The Console port is designed to connect with the serial port of a computer
or terminal to check and monitor some simple system information of the
Router
Reset
With the Router powered on, use a pin to press and hold the Reset button (about 5

Router rebooting to its factory default settings.
Rear Panel


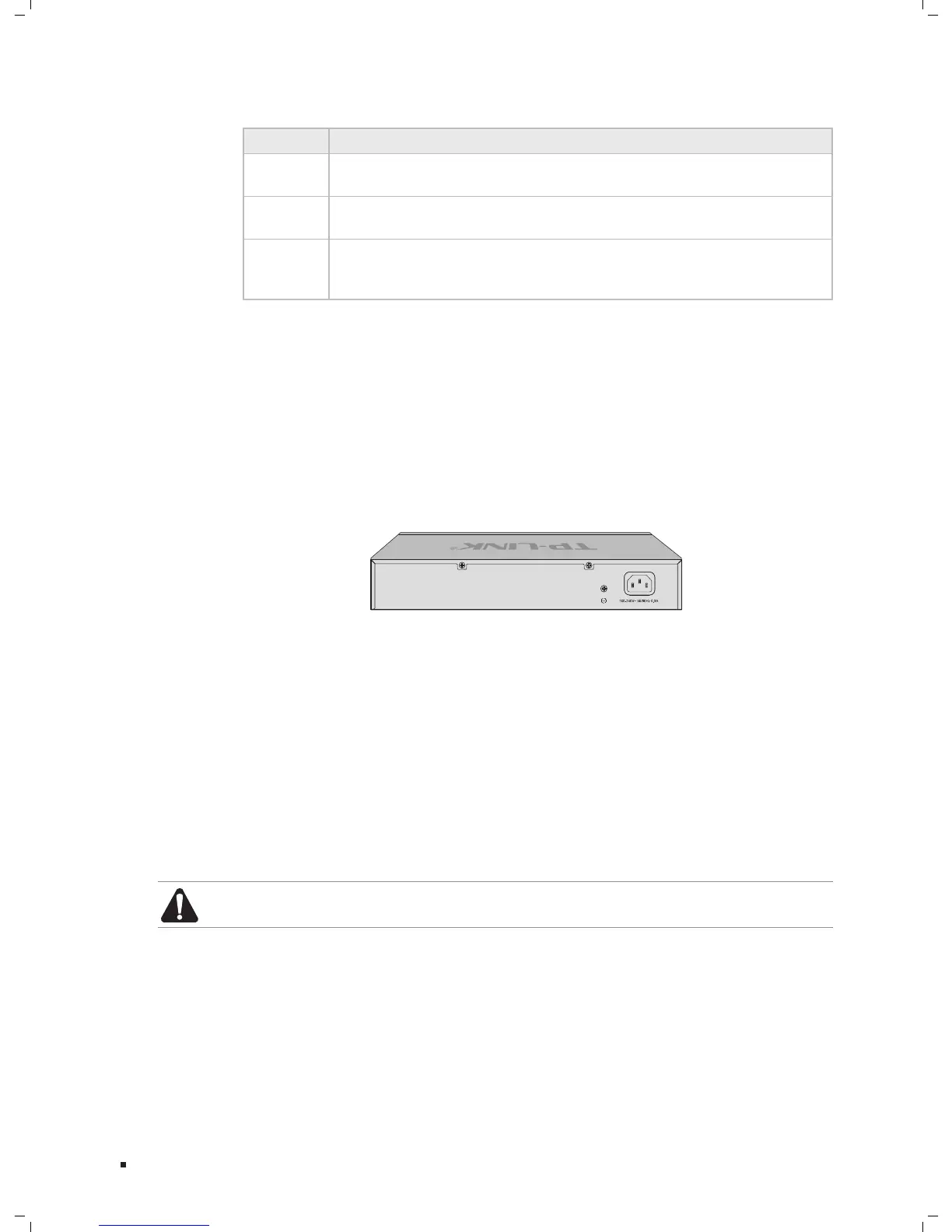

The rear panel of TL-R480T+ is shown as the following figure.
Rear PanelFigure 1-2
Power Socket
Connect the female connector of the power cord here, and the male connector to
the AC power outlet. Please make sure the voltage of the power supply meets the
requirement of the input voltage.
Grounding Terminal
The Router already comes with lightning protection mechanism. You can also ground
the Router through the PE (Protecting Earth) cable of AC cord or with Ground Cable.
For detailed information, please refer to Chapter 3 Lightning Protection.
Caution: Please use the provided power cord.
Introduction

TP-Link TL-R480T+ Specifications

General

Load Balancing	Yes
Power Supply	100-240V AC, 50/60Hz
Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Firewall	Yes
VPN	PPTP, L2TP, IPSec
VPN Support	Yes
QoS	Yes
Operating Humidity	10% to 90% non-condensing
Storage Humidity	5% to 90% non-condensing
Network Protocols	TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP
Management	Web-based
Device Type	Router
Firewall Features	IP Filtering, Domain Filtering
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
