2.3 Power On
TL-SG1016/TL-SG1024 16/24-port Gigabit Ethernet Switch is
powered by AC power supply. Powering on the Switch, it will
automatically initialize and its LED indicators should respond as
follows:
1） All of the Link/Act and 1000Mbps LED indicators will flash
momentarily for one second, which represent a resetting of
the system.
2） The Power indicator will light up.
If the LED indicators don't respond as described above, please
check the power supply and connection.
Chapter 3 Identifying External Components
This Chapter describes the front panel, rear panel and LED
indicators of the Switch. TL-SG1016 and TL-SG1024 just differ
in the number of LED indicators and ports and all figures in this
guide are of TL-SG1024.
3.1 Front Panel
The front panel of the TL-SG1024 consists of switch LED
indicators, 24 10/100/1000Mbps RJ-45 ports.

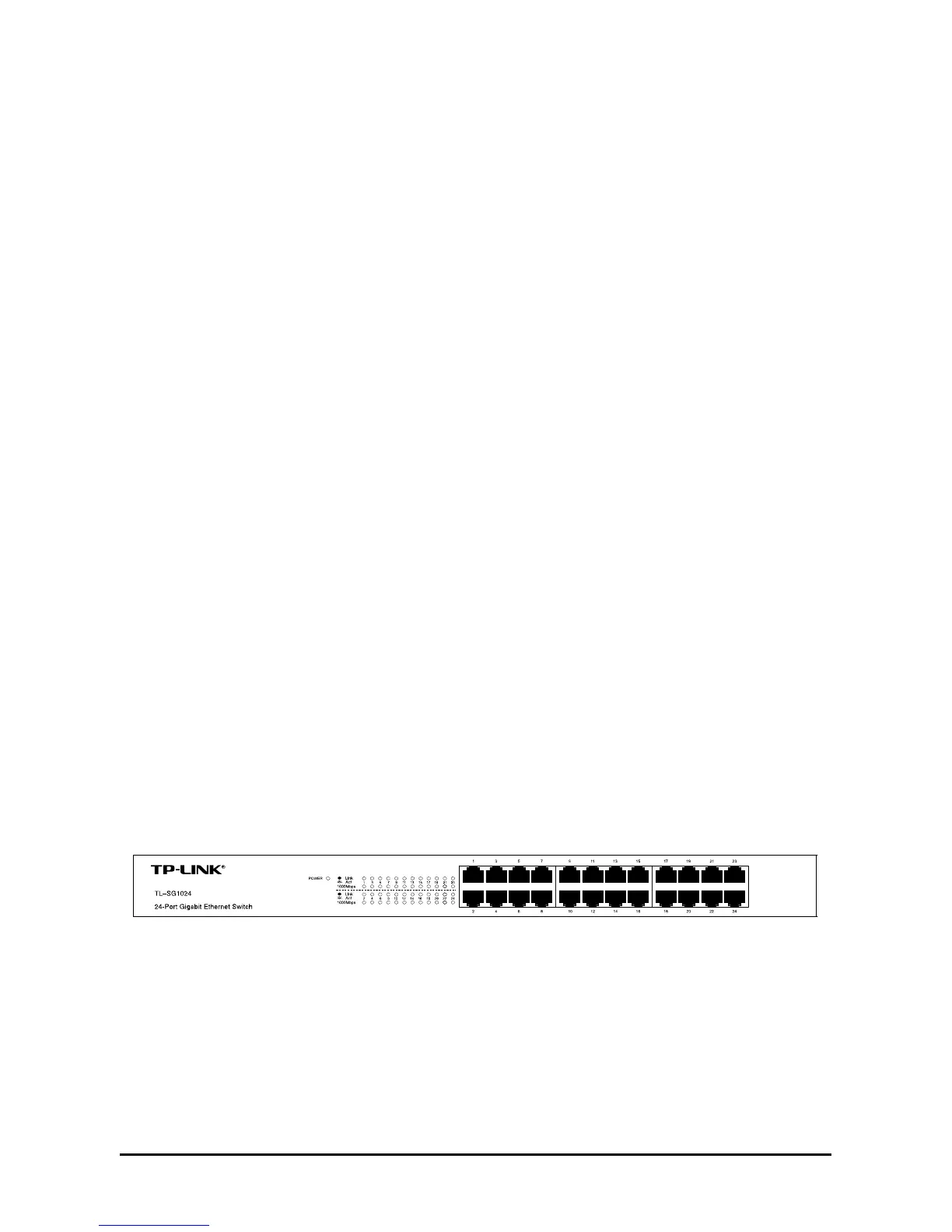

Figure 3-1 TL-SG1024 Switch Front Panel sketch
3.2 Rear Panel
The rear panel of the TL-SG1024 only features a power
receptacle, which is an AC power receptacle. Connect the
female of the power cord head here, and the male head to the

TP-Link TL-SG1016 Specifications

General

MAC address table	8000 entries
Maximum data transfer rate	2 Gbit/s
Supported data transfer rates	10/100/1000 Mbps
10G support	-
Full duplex	Yes
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Dimensions (WxDxH)	440 x 180 x 44 mm
Power requirements	100 - 240V / 50-60Hz
Networking features	Gigabit Ethernet
Connectivity technology	Wired
Switch type	Unmanaged
Power connector	DC-in jack
Basic switching RJ-45 Ethernet ports quantity	16
Stackable	No
Certification	FCC, CE, RoHS
Product color	Brown
LED indicators	Status
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
