TP-Link TL-SG1016D User Manual

3
Chapter 2 Identifying External Components
This Chapter describes the front panel, rear panel and LED indicators of the Switch.
TL-SG1008/TL-SG1016D/TL-SG1024D just differ in the number of LED indicators
and ports and all figures in this guide are of TL-SG1008.
2.1 Front Panel
The front panel of TL-SG1008 consists of switch model, switch LED indicators, and
8 10/100/1000Mbps RJ-45 ports.

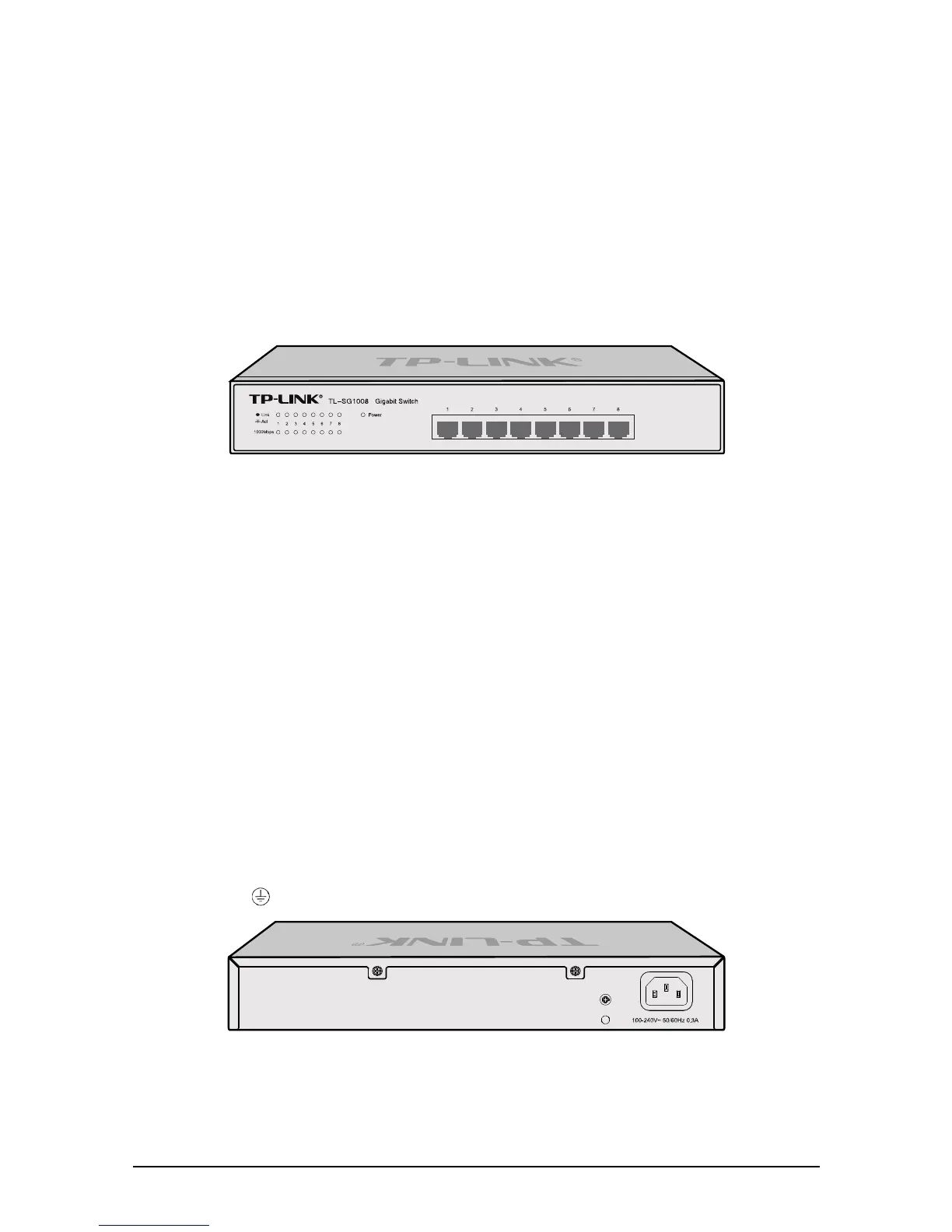

Figure 2-1 TL-SG1008 Switch Front Panel sketch
The LED indicators include Power, Link/Act LED indicators, which are used for
monitoring and pre-troubleshooting of the Switch. The following section shows the
LED indicators of the Switch along with an explanation of each indicator.
¾ POWER LED: This indicator will light solid red when the Switch powers up. If
the LED is not lit, please check the power supply and connection.
¾ Link/Act LED: The LED indicates Link/Active status. The corresponding LED
indicator will light solid green when connected to a network device. It flashes
green when data is being transmitted or received on the working connection.
¾ 1000Mbps LED: The corresponding port LED indicator will light solid green
when it's working on 1000Mbps speed. Not lit indicates working on
10/100Mbps speed.
2.2 Rear Panel
The rear panel of TL-SG1008 features a power socket and a Grounding Terminal
(marked with
).
Figure 2-2 TL-SG1008 Switch Rear Panel sketch
¾ Grounding Terminal: TL-SG1008 already comes with Lightning Protection
Mechanism. You can also ground the Switch through the PE (Protecting Earth)

TP-Link TL-SG1016D Specifications

General

10G support	No
Full duplex	Yes
Networking standards	IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Cable types supported	Cat3, Cat4, Cat5, Cat5e
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-TX, 1000BASE-T
Jumbo frames	10000
Forwarding rate	23.8 Mpps
MAC address table	8000 entries
Switch type	Unmanaged
Supported network protocols	CSMA/CD, TCP/IP
Power connector	AC-in jack
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	16
Product color	Black
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	9.26 W
Heat dissipation	31.6 BTU/h
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Package type	Box
Package depth	400 mm
Package width	250 mm
Package height	80 mm
Package weight	1850 g
Harmonized System (HS) code	85176990
Maximum cable length	100 m
Compatible operating systems	Microsoft Windows 2000/XP/2003/Vista/2008/7/2012/8/10 MacOS NetWare UNIX Linux
Sustainability certificates	CE, Federal Communications Commission (FCC), RoHS

Weight and Dimensions

Depth	180 mm
Width	294 mm
Height	44 mm
