5
Caution:
Please unplug the power cord before installing or removing the Switch.
3.2.1 Desktop Installation
To install the Switch on the desktop, please follow the steps:
1) Set the Switch on a flat surface strong enough to support the entire weight of
the Switch with all fittings.
2) Remove the adhesive backing papers from the rubber feet.
3) Turnover the Switch and attach the supplied rubber feet to the recessed areas
on the bottom at each corner of the Switch.

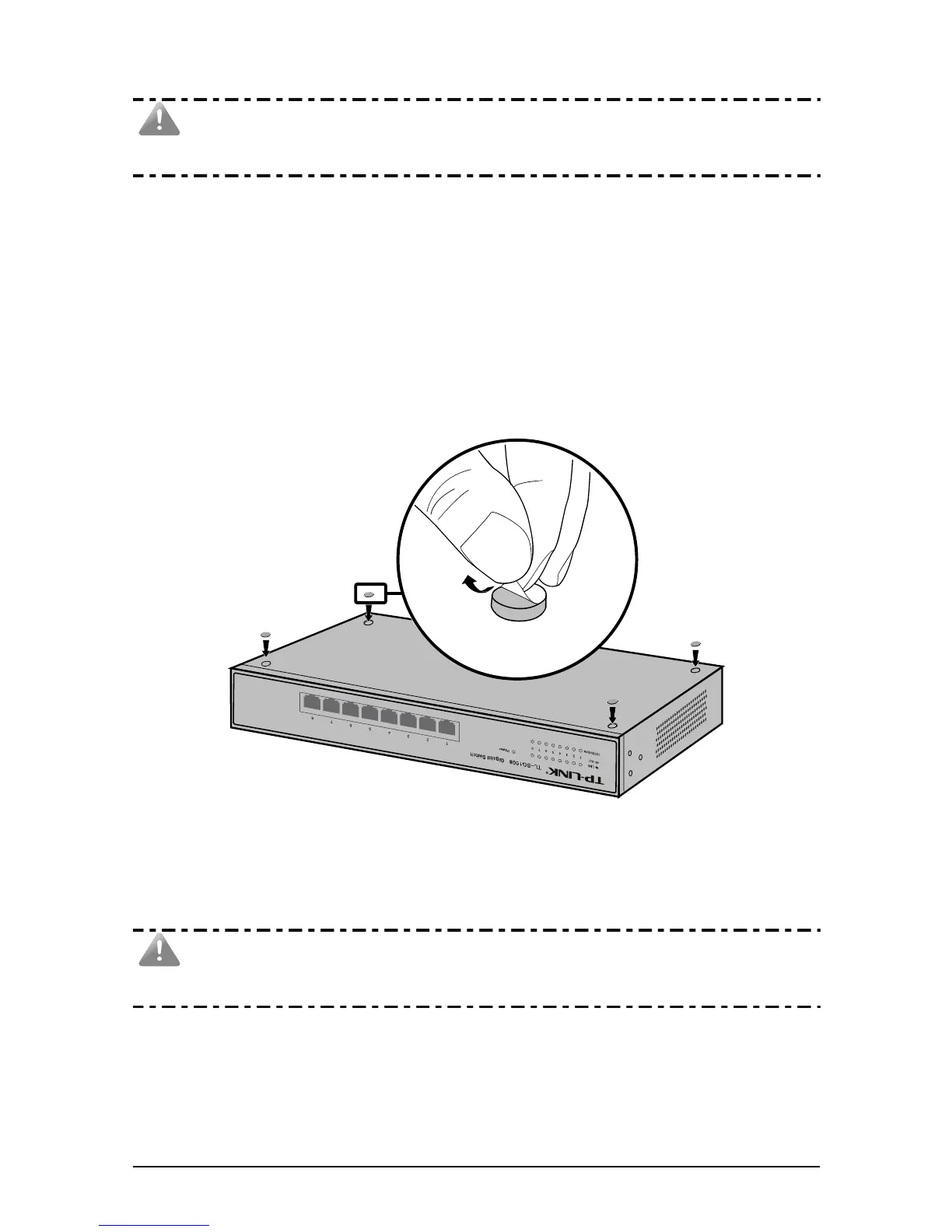

Figure 3-1 Attaching Rubber Feet
4) Upturn the Switch and connect it to the network devices while keep enough
ventilation space around.
5) Connect the Switch to power source with the provided power cord.
Caution:
Please avoid any heavy thing placed on the Switch.
3.2.2 Rack Installation
To install the Switch in an EIA standard-sized, 19-inch rack, follow the instructions
described below:

TP-Link TL-SG1016D Specifications

General

10G support	No
Full duplex	Yes
Networking standards	IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Cable types supported	Cat3, Cat4, Cat5, Cat5e
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-TX, 1000BASE-T
Jumbo frames	10000
Forwarding rate	23.8 Mpps
MAC address table	8000 entries
Switch type	Unmanaged
Supported network protocols	CSMA/CD, TCP/IP
Power connector	AC-in jack
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	16
Product color	Black
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	9.26 W
Heat dissipation	31.6 BTU/h
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Package type	Box
Package depth	400 mm
Package width	250 mm
Package height	80 mm
Package weight	1850 g
Harmonized System (HS) code	85176990
Maximum cable length	100 m
Compatible operating systems	Microsoft Windows 2000/XP/2003/Vista/2008/7/2012/8/10 MacOS NetWare UNIX Linux
Sustainability certificates	CE, Federal Communications Commission (FCC), RoHS

Weight and Dimensions

Depth	180 mm
Width	294 mm
Height	44 mm
