TP-Link TL-WR743ND User Manual

TL-WR743ND 150Mbps Wireless AP/Client Router
- 101 -
1. Click Add New… button in Figure 4-58 to enter the Add or Modify an Access Target
Entry page.
2. In Mode field, select Domain Name from the drop-down list.
3. In Target Description field, create a unique description for the target (e.g. Target_1).
4. In Domain Name field, enter www.google.com.
5. Click Save to complete the settings.

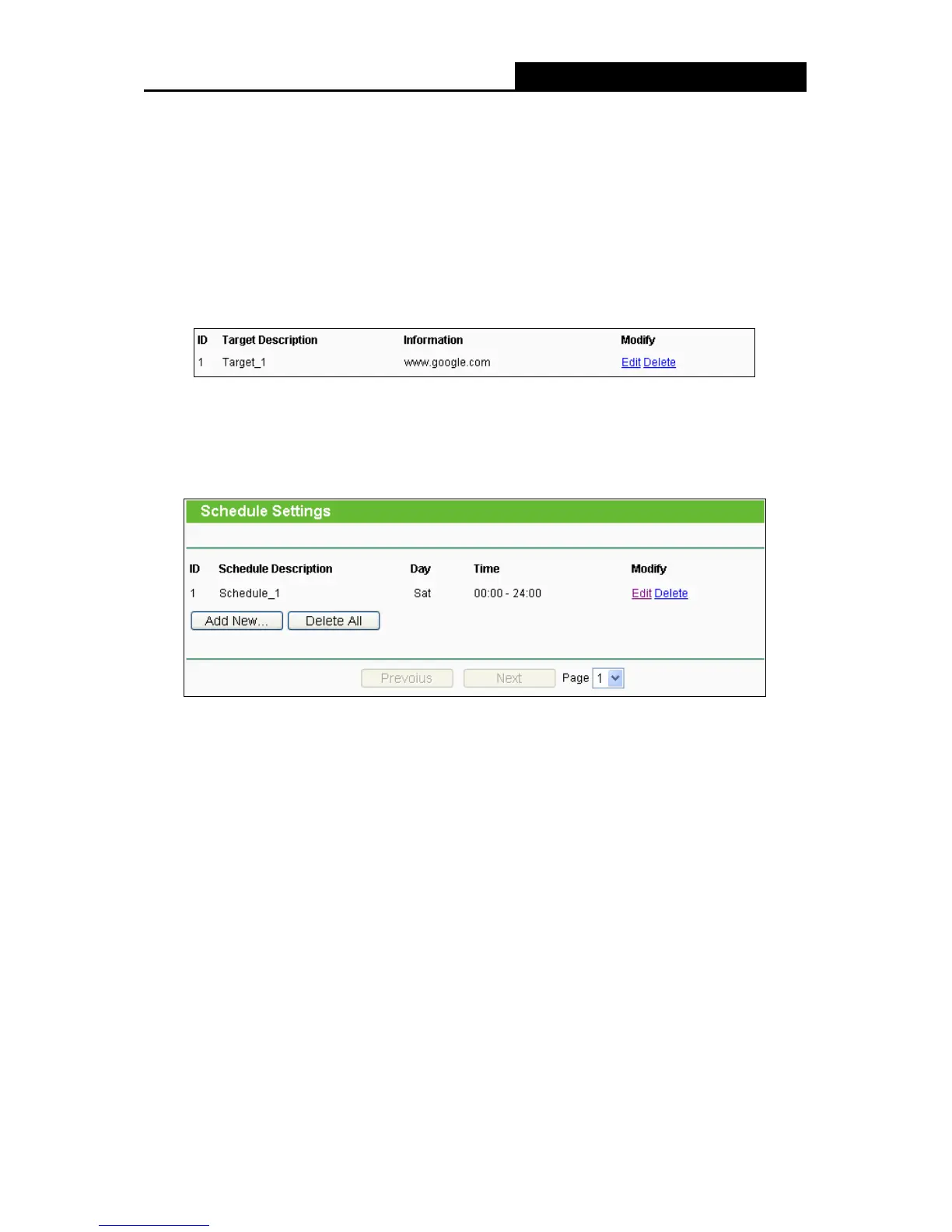

Then you will go back to the Target Settings page and see the following list,
4.12.4 Schedule
Choose menu “Access Control → Schedule”, you can view and set a Schedule list in the next
screen as shown in Figure 4-61. The Schedule list is necessary for the Access Control Rule.
Figure 4-61 Schedule Settings

Schedule Description - Here displays the description of the schedule and this description is
unique.
 Day - Here displays the day(s) in a week.
 Time - Here displays the time period in a day.
 Modify - Here you can edit or delete an existing schedule.
To add a new schedule, follow the steps below.
1. Click Add New... button shown in Figure 4-61 and the next screen will pop-up as shown in
Figure 4-62.
2. In Schedule Description field,
create a unique description for the schedule (e.g.
Schedule_1).
3. In Day field, select the day or days you need.

TP-Link TL-WR743ND Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Input current	0.85 A
Rack mounting	-
Frequency range	2.4 - 2.4835 GHz
xDSL connection	No
WLAN data transfer rates supported	150 Mbit/s
Ethernet LAN (RJ-45) ports	5
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Certification	FCC, RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Antennas quantity	1
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
