TL-WR743ND 150Mbps Wireless AP/Client Router
- 122 -
Log Level - By selecting the log level, only logs of this level will be shown.
Refresh - Refresh the page to show the latest log list.
Save Log - Click to save all the logs in a txt file.
Mail Log - Click to send an email of current logs manually according to the address and
validation information set in Mail Settings. The result will be shown in the later log soon.
Clear Log - All the logs will be deleted from the Router permanently, not just from the page.
Click the Next button to go to the next page, or click the Previous button to return to the previous
page.
4.17.9 Statistics
Choose menu “System Tools → Statistics”, and then you can view the statistics of the Router,
including total traffic and current traffic of the last Packets Statistic Interval.

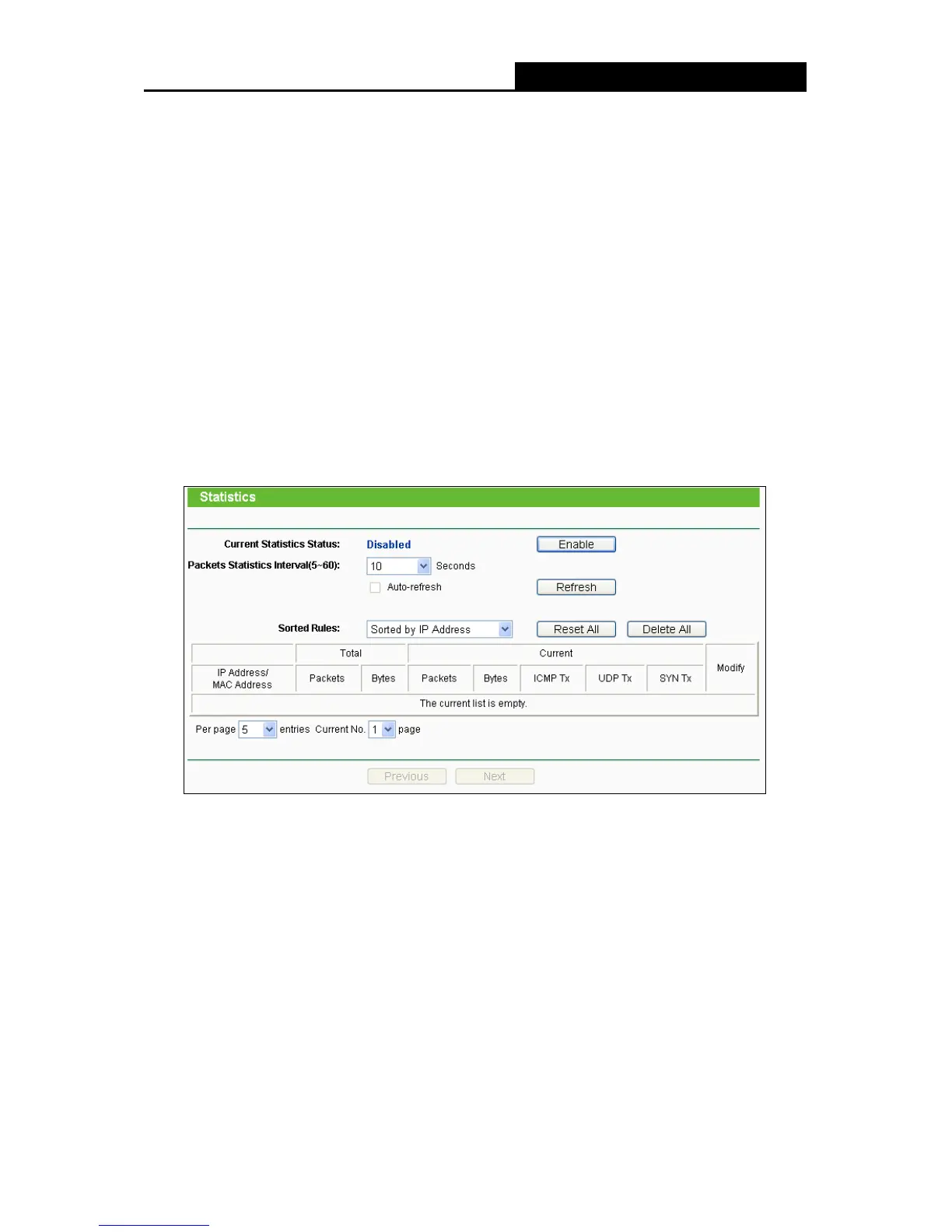

Figure 4-91 Statistics
Current Statistics Status - Enable or Disable. The default value is disabled. To enable, click
the Enable button.
Packets Statistics Interval （5-60） - The default value is 10. Select a value between 5 and
60 seconds in the pull-down list. The Packets Statistic interval indicates the time section of
the packets statistic.
Check Auto-refresh to refresh automatically.
Click the Refresh button to refresh immediately.
Sorted Rules - Select a rule from the pull-down list to display the corresponding statistics.
Click Reset All to reset the values of all the entries to zero.
