18-AC104D1-1G-EN 3

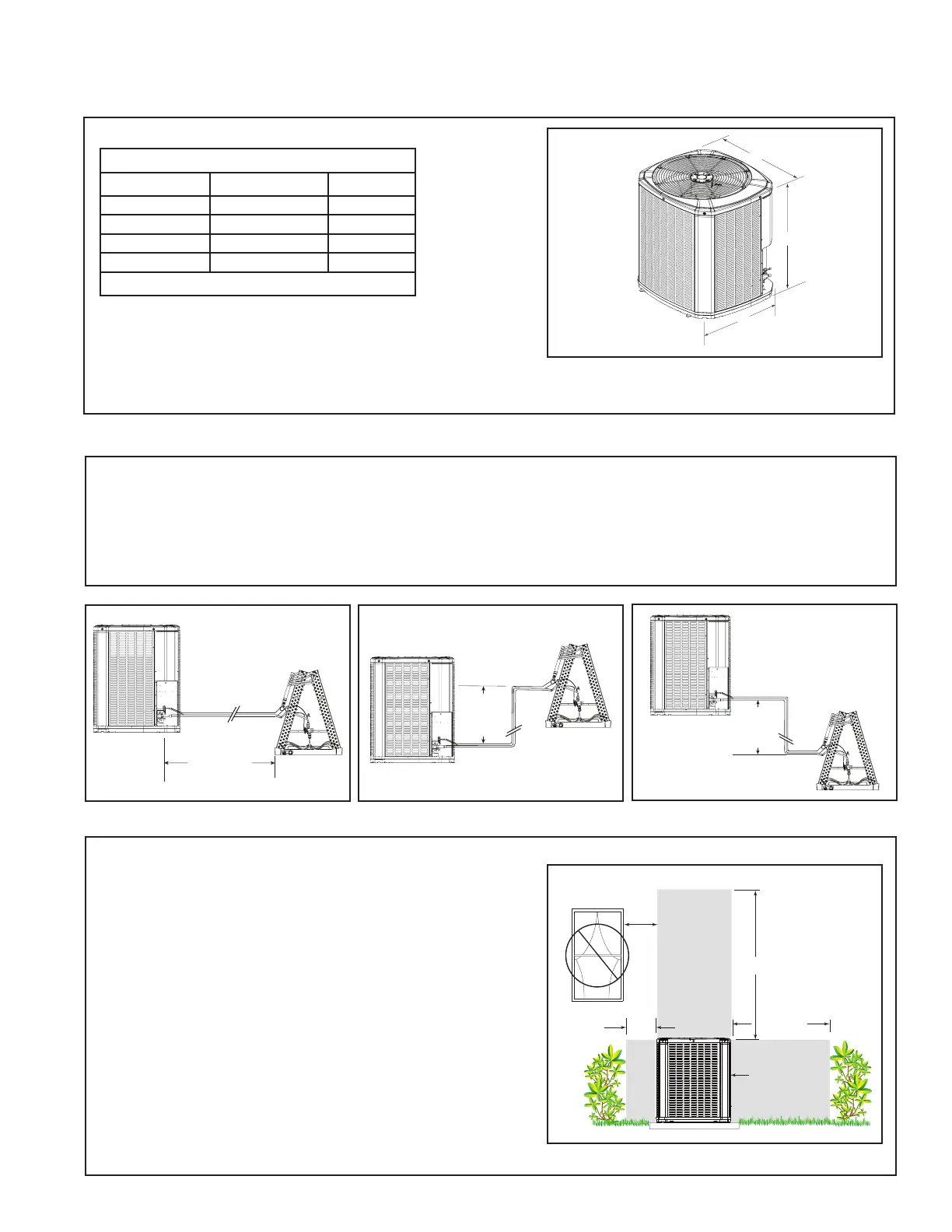

Unit Dimensions and Weight
Models H x D x W (in) Weight* (lb)
4TWR6024N 41 x 34 x 37 236
4TWR6036N 45 x 34 x 37 257
4TWR6048N 45 x 34 x 37 292
4TWR6060N 45 x 34 x 37 293
* Weight values are estimated.
Section 2. Unit Location Considerations
2.1 Unit Dimensions and Weight
2.2 Refrigerant Piping Limits
Table 2.1
When mounting the outdoor unit on a roof, be sure the roof will support the unit’s weight.
Properly selected isolation is recommended to alleviate sound or vibration transmission to the building structure.
Standard
Line Set
150” Max
Line Length
y
Near Bedrooms
Min 5’ Unrestricted
Access Panel
Min 3’
Unrestricted
2.3 Suggested Locations for Best Reliability
Ensure the top discharge area is unrestricted for
at least five (5) feet above the unit.
Three (3) feet clearance must be provided in
front of the control box (access panels) and any
other side requiring service.
Do not locate close to bedrooms as operational
sounds may be objectionable.
Avoid locations such as near windows where
condensation and freezing defrost vapor can
annoy a customer.
Position the outdoor unit a minimum of 12” from
any wall or surrounding shrubbery to ensure
adequate airflow.
Outdoor unit location must be far enough away
from any structure to prevent excess roof runoff
water or icicles from falling directly on the unit.
1. The maximum length of refrigerant lines from outdoor to indoor unit should NOT exceed 150 feet.
2. The maximum vertical change should not exceed fifty (50) feet.
3. Service valve connection diameters are shown in Table 5.1.
Note: For line lengths greater than fifty (50) feet, Refer to Refrigerant Piping Application Guide,
SS-APG006F-EN, or Refrigerant Piping Software Program.
