Trane CAUJ-C20 User Manual

CAUJ-SVX01E-EN
29
Unit Mounting

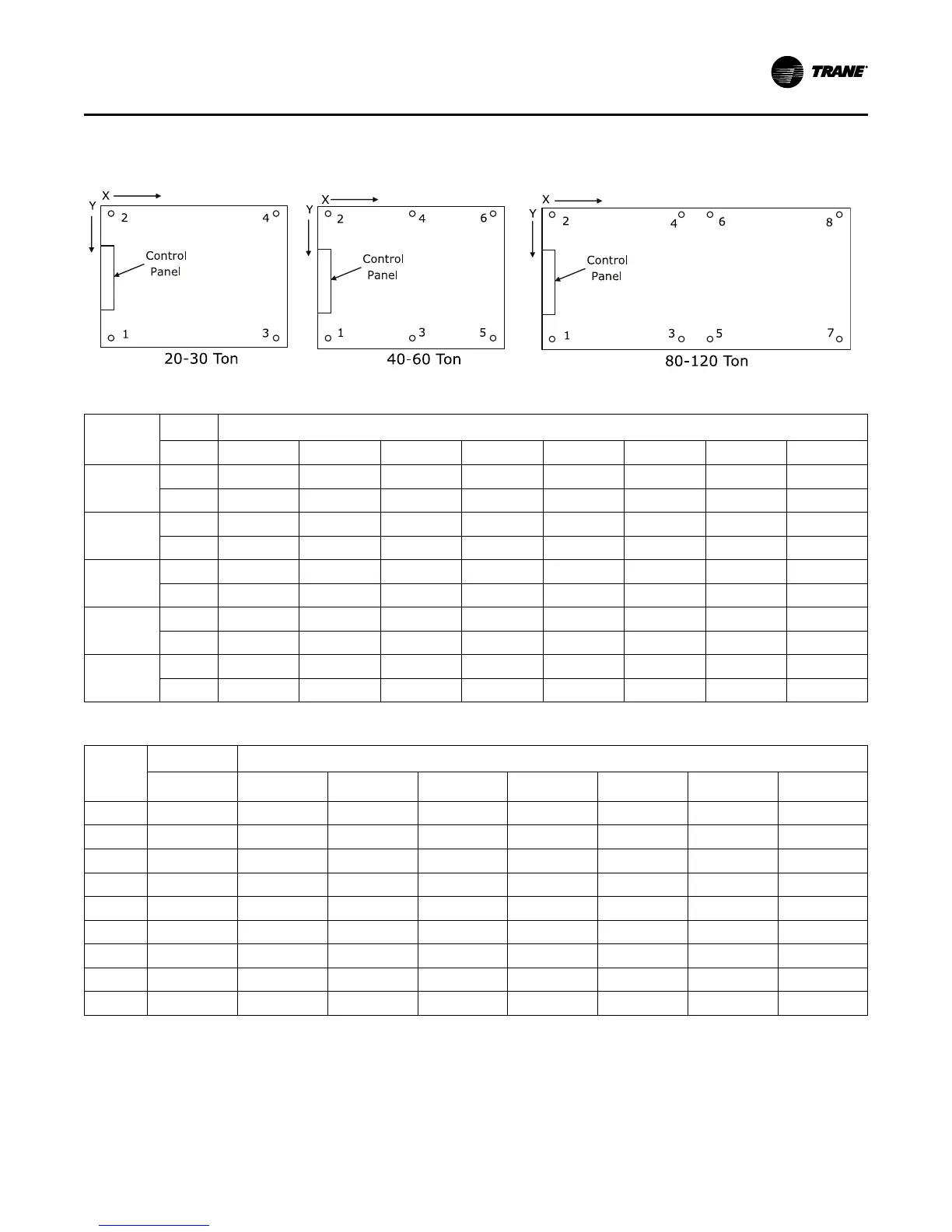

Figure 20. Mounting location
C
ontrol
Panel
80-120 Ton
1
2
3
4
5
6
7
8
Y
X
C
ontrol
Panel
C
ontrol
Panel
20-30 T on
40-60 Ton
1
1
2
2
3
3
4
4
5
6
Y
Y
X
X
Table 5. Isolator mounting locations (in)
Unit Size
(tons)
Mounting Location
1 2 3 4 5 6 7 8
20/25/30
X 8.00 8.00 80.125 80.125 - - - -
Y 58.75 1.25 58.75 1.25 - - - -
40
X 8.00 8.00 44.125 44.125 80.25 80.25 - -
Y 87.125 1.25 87.125 1.25 87.125 1.25 - -
50/60
X 8.00 8.00 56.875 56.875 105.75 105.75 - -
Y 87.125 1.25 87.125 1.25 87.125 1.25 - -
80
X 8.00 8.00 80.125 80.125 108.125 108.125 168.25 168.25
Y 87.125 1.25 87.125 1.25 87.125 1.25 87.125 1.25
100/120
X 8.00 8.00 105.625 105.625 121.625 121.625 219.25 219.25
Y 87.125 1.25 87.125 1.25 87.125 1.25 87.125 1.25
Table 6. CAUJ point loading weights (lbs)
Unit
Size
(tons)
Mounting Location
1 2 3 4 5 6 7 8
20 296.3 340.8 358.8 192.1 — — — —
25 357.1 300.2 318.8 261.9 — — — —
30 360.9 302.0 316.0 257.1 — — — —
40 385.9 212.5 181.7 441.8 377.2 208.3 — —
50 239.4 211.3 367.5 339.4 495.5 466.6 — —
60 238.8 210.9 370.2 342.2 501.6 472.8 — —
80 513.5 474.4 459.6 200.2 452.1 196.7 561.6 354.0
100 636.7 402.1 610.1 383.6 605.8 380.5 579.2 361.9
120 687.8 461.8 667.7 447.8 664.4 445.5 644.4 431.5
IInnssttaallllaattiioonn MMeecchhaanniiccaall
