Trane CAUJ-C20 User Manual

CAUJ-SVX01E-EN
31
Spring Isolators (20 to 120 Ton units)

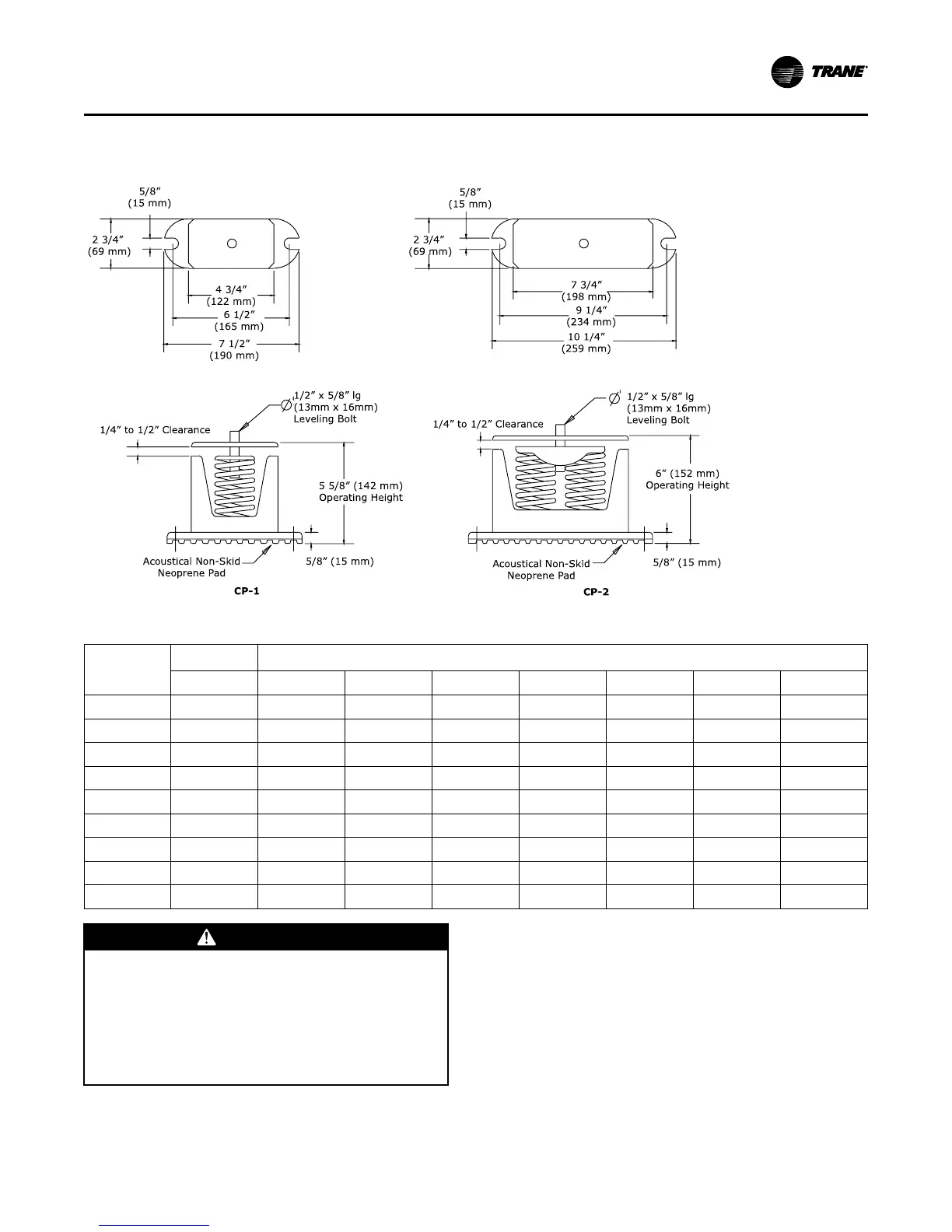

Figure 22. Spring isolators
5/8”
(15 mm)
2 3/4”
(69 mm)
4 3/4”
(122 mm)
6 1/2”
(165 mm)
7 1/2”
(190 mm)
5/8”
(15 mm)
2 3/4”
(69 mm)
7 3/4”
(198 mm)
9 1/4”
(234 mm)
10 1/4”
(259 mm)
1/2” x 5/8” lg
(13mm x 16mm)
Lev eling Bolt
1/4” to 1/2” Clear ance
5 5/8” (142 mm)
Oper ating Height
5/8” (15 mm)
CP-1
Acoustical Non- Skid
Neoprene P ad
1/2” x 5/8” lg
(13mm x 16mm)
Lev eling Bolt
1/4” to 1/2” Clear ance
6” (152 mm)
Oper ating Height
5/8” (15 mm)
CP-2
Acoustical Non- Skid
Neoprene P ad
Table 8. CAUJ spring isolator selection
Unit Size
(tons)
Mounting Location
1 2 3 4 5 6 7 8
20 CP-1D-340 CP-1D-510 CP-1D-510 CP-1D-340 - - - -
25 CP-1D-510 CP-1D-340 CP-1D-340 CP-1D-340 - - - -
30 CP-1D-510 CP-1D-340 CP-1D-340 CP-1D-340 - - - -
40 CP-1D-510 CP-1D-340 CP-1D-340 CP-1D-510 CP-1D-510 CP-1D-340 - -
50 CP-1D-340 CP-1D-340 CP-1D-510 CP-1D-340 CP-1D-510 CP-1D-510 - -
60 CP-1D-340 CP-1D-340 CP-1D-510 CP-1D-510 CP-1D-510 CP-1D-510 - -
80 CP-1D-675 CP-1D-510 CP-1D-510 CP-1D-340 CP-1D-510 CP-1D-340 CP-1D-675 CP-1D-510
100 CP-1D-675 CP-1D-510 CP-1D-675 CP-1D-510 CP-1D-675 CP-1D-510 CP-1D-675 CP-1D-510
120 CP-1D-900 CP-1D-510 CP-1D-675 CP-1D-510 CP-1D-675 CP-1D-510 CP-1D-675 CP-1D-510
WWAARRNNIINNGG
HHeeaavvyy OObbjjeecctt!!
FFaaiilluurree ttoo ffoollllooww iinnssttrruuccttiioonnss ccoouulldd rreessuulltt iinn ddeeaatthh
oorr sseerriioouuss iinnjjuurryy..
UUssee ssoolliidd ttyyppee bblloocckkss,, ii..ee.. 44"" XX 44"" wwoooodd bblloocckkss oorr
ssiimmiillaarr mmaatteerriiaall,, ttoo pprreevveenntt ccoollllaappssiinngg.. KKeeeepp
hhaannddss aanndd ootthheerr bbooddyy lliimmbbss cclleeaarr ooff eelleevvaatteedd bbaassee
rraaiill wwhhiillee iinnssttaalllliinngg iissoollaattoorrss..
Install the spring isolators at each unit mounting (load)
point, using the following procedure:
1. Elevate the unit (one side at a time) to allow access
to the base rail mounting holes.
2. Align the mounting holes in the base rail of the unit
with the positioning pin in the top of the
appropriate isolator.
3. Position the isolator to allow access to the
mounting holes in the base of the isolator.
4. Lower the unit onto the isolator. The positioning pin
on the isolator must engage into the hole of the
base rail. The clearance between the upper and
lower isolator housings should be approximately 1/
4 to 1/2 inch. A clearance greater than 1/2 inch
IInnssttaallllaattiioonn MMeecchhaanniiccaall
