CG-PRC002A-EN
21
Dimensional
Data

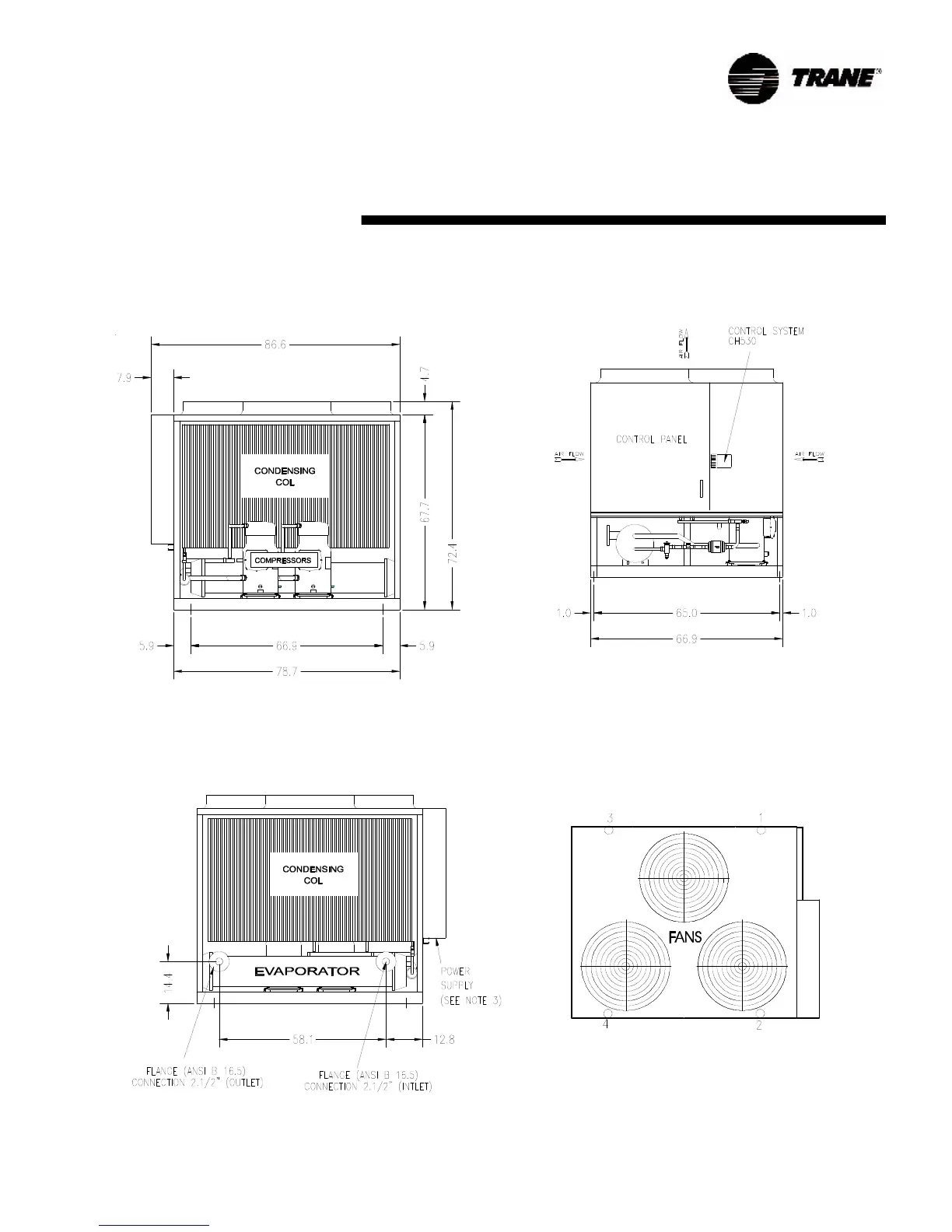

Fig.09 - Unit Dimensions - CGAD 025C / 030C
CGAD025C / 030C
NOTES:
1 - FIXING POINTS FOR VIBRATION INSULATORS (4 X.11,5-mm DIAM HOLES)
2 - VIBRATION INSULATORS ARE NOT SUPPLIED WITH THE EQUIPMENT.
3 - UNITS NOT SPECIFIED: mm
Fig. 10 - Top View of Fans
