Trane CGAD020C User Manual

24 CG-PRC002A-EN
Dimensional
Data CGAD 070C

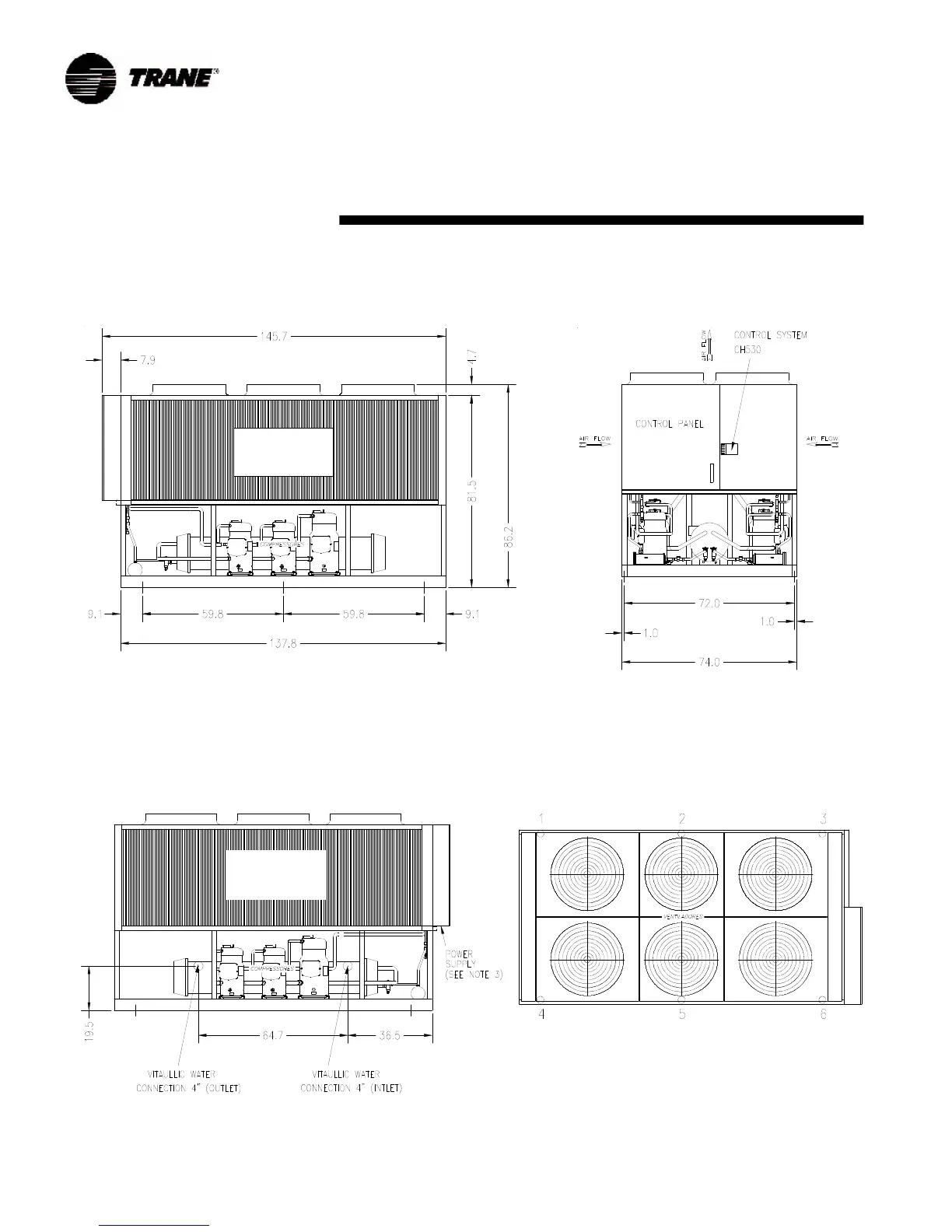

Fig. 15 - Unit Dimensions - CGAD 070C
Fig. 16 - Top View of Fans
NOTES:
1 - FIXING POINTS FOR VIBRATION INSULATORS (6 X.11,5-mm DIAM HOLES)
2 - VIBRATION INSULATORS ARE NOT SUPPLIED WITH THE EQUIPMENT.
3 - UNITS NOT SPECIFIED: mm
CONDENSING
COL
CONDENSING
COL

Trane CGAD020C Specifications

General

Brand	Trane
Model	CGAD020C
Category	Chiller
Language	English
