UV-PRC001-EN 35
Application
Considerations
Standard Depth Unit
The vertical unit ventilator is a
floor mounted classroom air con-
ditioner. Its main application is in
the perimeter rooms of a school.
Typically, the vertical unit is
mounted flush with the wall with
the fresh air opening in the back
and the return air opening in the
front. This allows for the fresh air
to come straight through the wall
to the unit.
An optional fully insulated back is
available on the standard depth
units for added protection in cold
climates.
1-Inch Falseback Unit
An optional 1-inch falseback unit
ventilator is designed to replace
unit with similar depths (16 1/4-
inch). It is ideal for matching a unit
to existing shelving. This 1-inch
extended depth is not recom-
mended to be used as an air ple-
num. The 1-inch added depth will
not fit requirements as an air ple-
num and should not be used in the
design of this type of application.

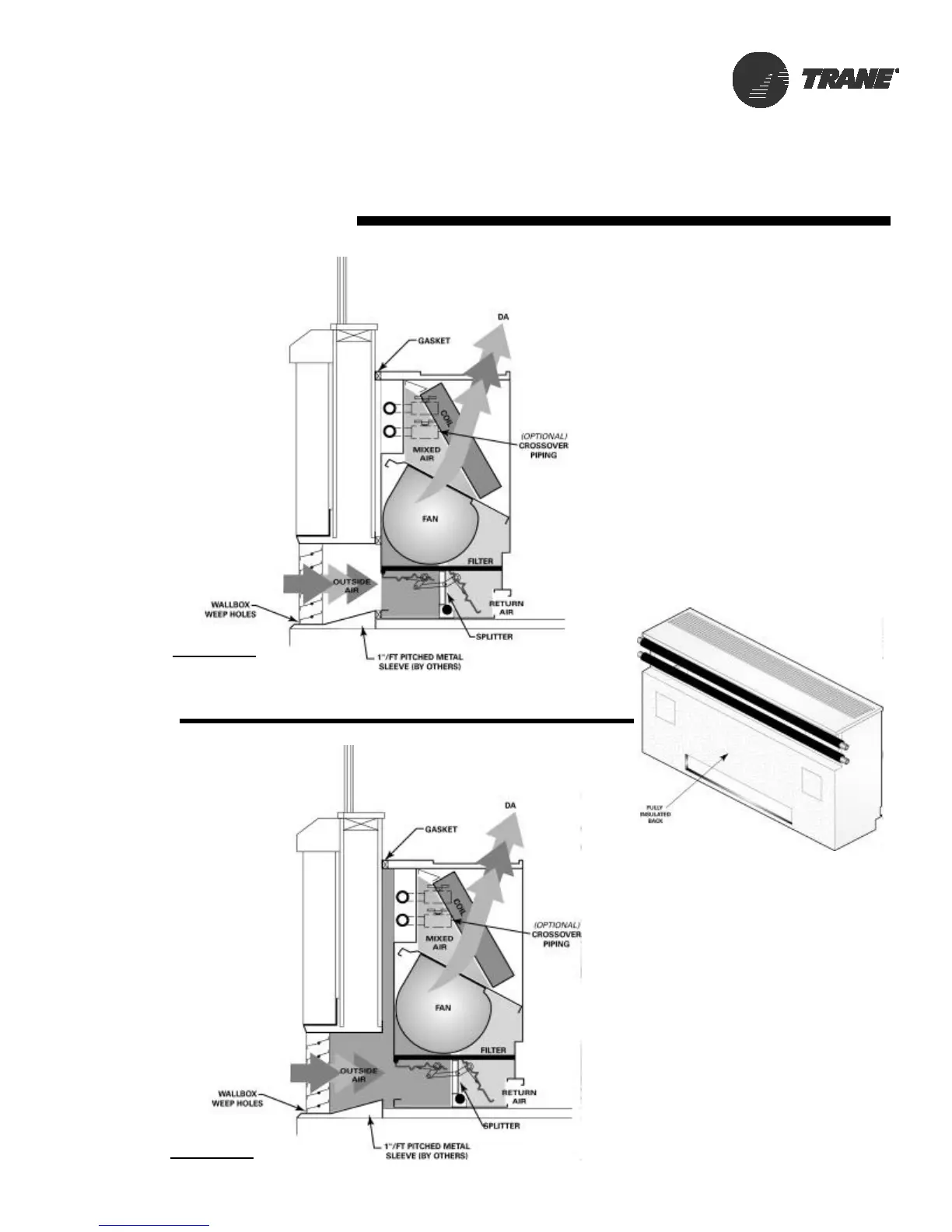

Side View
