10 RT-SVP011A-EN
Introduction
Screen Overview
There are three distinct areas on the TD7 screens:
• Top display area
• Main display area
• Bottom display area
Top Display Area

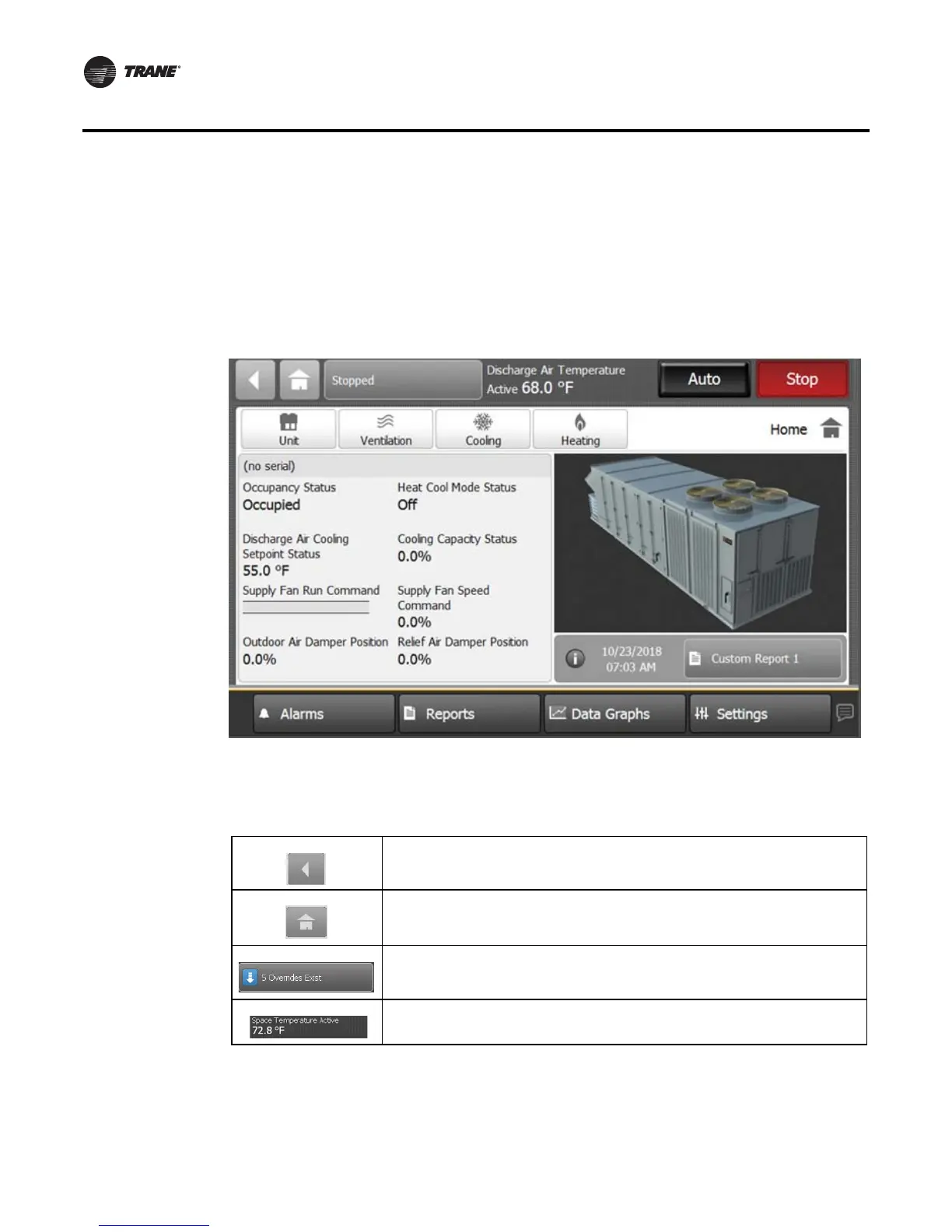

Figure 2. Tracer TD7 display screen
Main display area
Top display area
Bottom display area
The Back button, when touched, returns to the previous screen visited.
The Home button, when touched, navigates to the All Points Report by default. Home Can
be configured to display any of the three custom reports, All Points Report, All Points in
Override Report, Alarms, or custom graphic. See “Display Preferences,” p. 43.
The Overrides Summary button provides an at-a-glance view of how many user overrides
exist and provides a link to the Override Summary report.
The Space Temperature Active or Discharge Air Temperature Active, depending on
configuration is displayed in the header Data Area.
