PTAC-SVX004A-EN
11

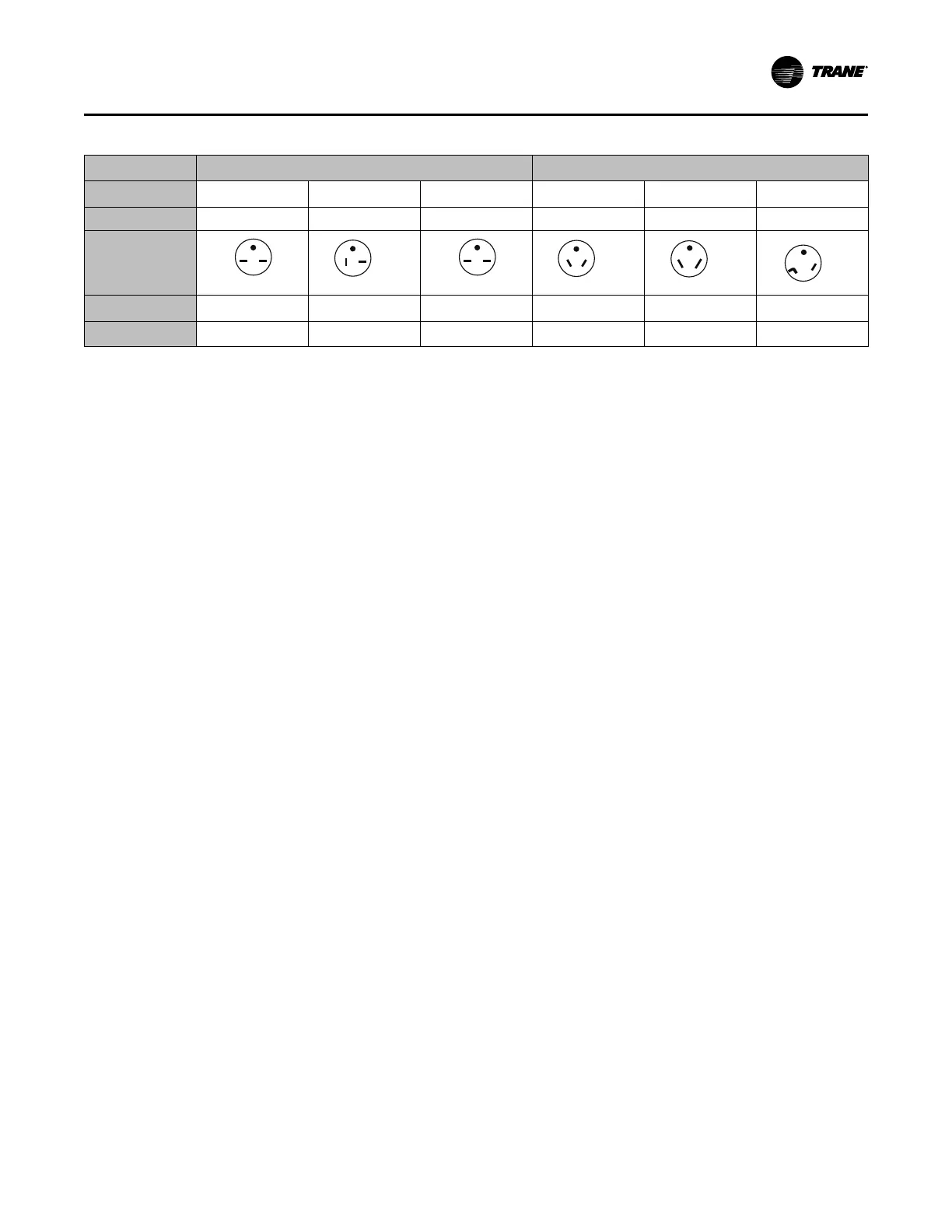

Table 4. Electric Heater and Cord Information, PTEG and PTHG Sizes 12 and 15
Voltage: 230 Vac 265 Vac
Amps: 15 20 30 15 20 30
Heater Size: 2.5 kW 3.5 kW 5.0 kW 2.5 kW 3.5 kW 5.0 kW
Plug Layout:
NEMA Plug: 6-15P 6-20P 6-30P 7-15P 7-20P 7-30P
Cord #
(a)
: PWR00286 PWR00288 PWR00290 PWR00287 PWR00289 PWR00291
(a)
Power cord does not ship with the unit.
Power Cord Protection
The power cord for 230/208V units provide protection
from fire. The unit power automatically disconnects
when unsafe conditions are detected. Power to the unit
can be restored by pressing the reset button on plug
head. Upon completion of unit installation for 230/208V
models, an operational check should be performed
using the TEST/RESET buttons on the plug head.
NNoottee:: Models with 265V do not incorporate this feature
because they require use of an electrical sub-
base accessory. Connection to a wall socket is
not permitted for 265V units. All 265V units must
be hard wired using the hard wire kit or make
use of the plug-in receptacle in the standard sub-
base.
EElleeccttrriiccaall
