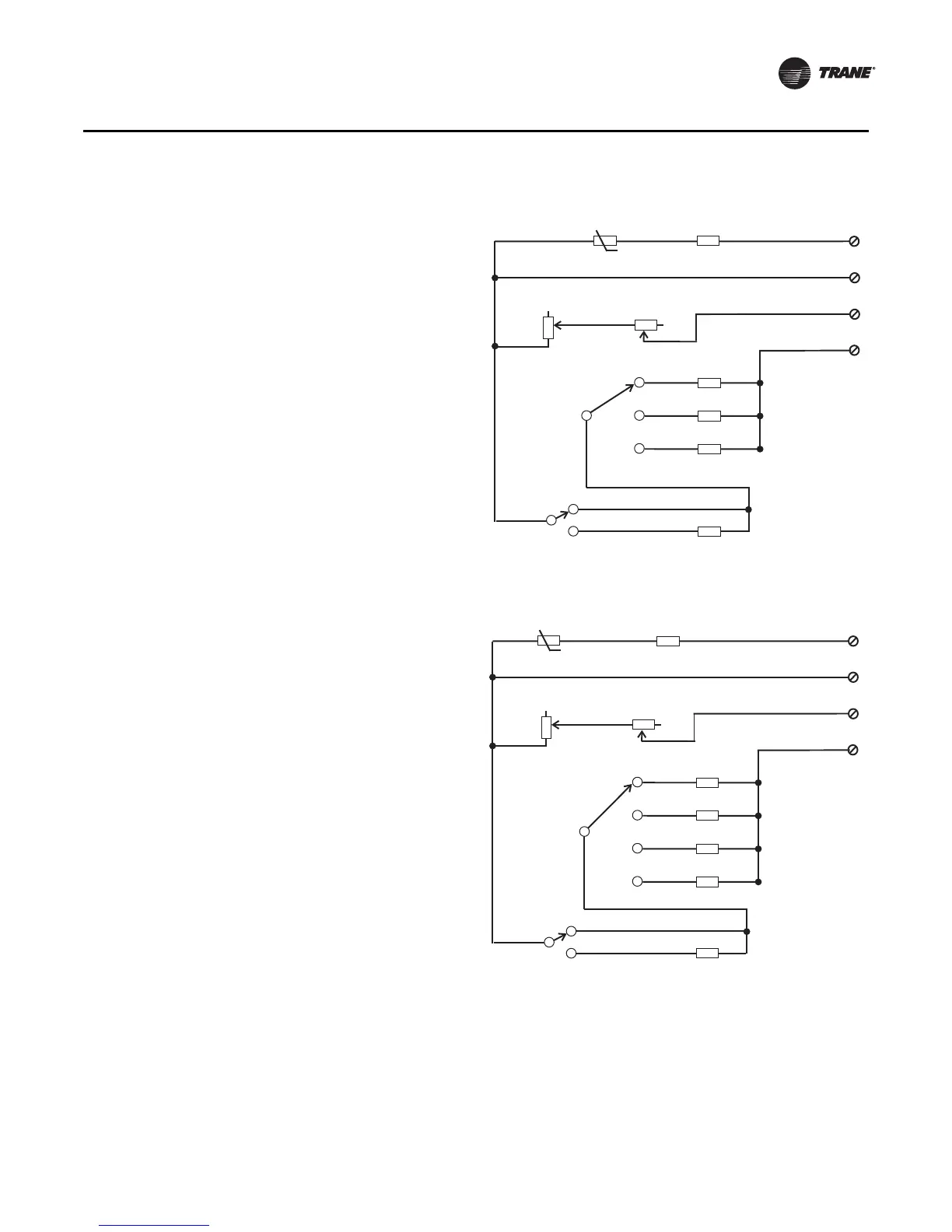

Wiring Diagrams
2
4
Calibration
Pot 1 (see )Note 1
Note 1:
Pot 1 is
factory
calibrated.
Field
adjustment
voids
warranty.
3
R6, 8.45 kW
R1, 4.87 kW
R2, 2.32 kW
R3, 19.6 kW
Heat
Off
Cool
RT1 thermistor,
10 k at 25°CW
1
R11, zero W
Signal common
Cool setpoint (CSP)
Mode
(Sys/Fan switch)
Zone
temperature
TB1
Auto
On
Temperature
setpoint
Pot 5,
1 kW
System
SW1
Fan
SW2
Dwg source: X39641086-01
2
4
Calibration
Pot 1 (see )Note 1
Note 1:
Pot 1 is
factory
calibrated.
Field
adjustment
voids
warranty.
3
R6, 8.45 kW
Auto
On
R1, 4.87 kW
R2, 2.32 kW
R3, 7.68 kW
Heat
Off
Cool
R4, 19.6 kW
Fan
RT1 thermistor,
10 k at 25°CW
1
R11, zero W
Signal common
Cool setpoint (CSP)
Zone
temperature
TB1
Mode
(Sys/Fan switch)
Temperature
setpoint
Pot 5,
1 kW
System
SW1
Fan
SW2
Dwg source: X39641097-01
X1379083901
X1379085001
