Triumph DAYTONA 650 User Manual

!!
!
Maintenance and Adjustment
Page 48
WARNING: All maintenance
is vitally important and must
not be neglected. Incorrect
maintenance or adjustment may
cause one or more parts of the
motorcycle to malfunction. A
malfunctioning motorcycle is
dangerous and may lead to an
accident.
W eather, terrain and geographical
location affects maintenance. The
maintenance schedule should be
adjusted to match the particular
environment in which the vehicle is
used and the demands of the
individual owner.
Triumph Motorcycles cannot accept
any respons ibility for dam a ge or
injury resulting from incorrect
maintenanc e or improper adjustment
carried out by the owner .
Since incorrect or neglected
maintenanc e can lead to a dangerous
riding condition, always have an
authorised Triumph dealer carry out
the scheduled maintenance of this
motorcycle.

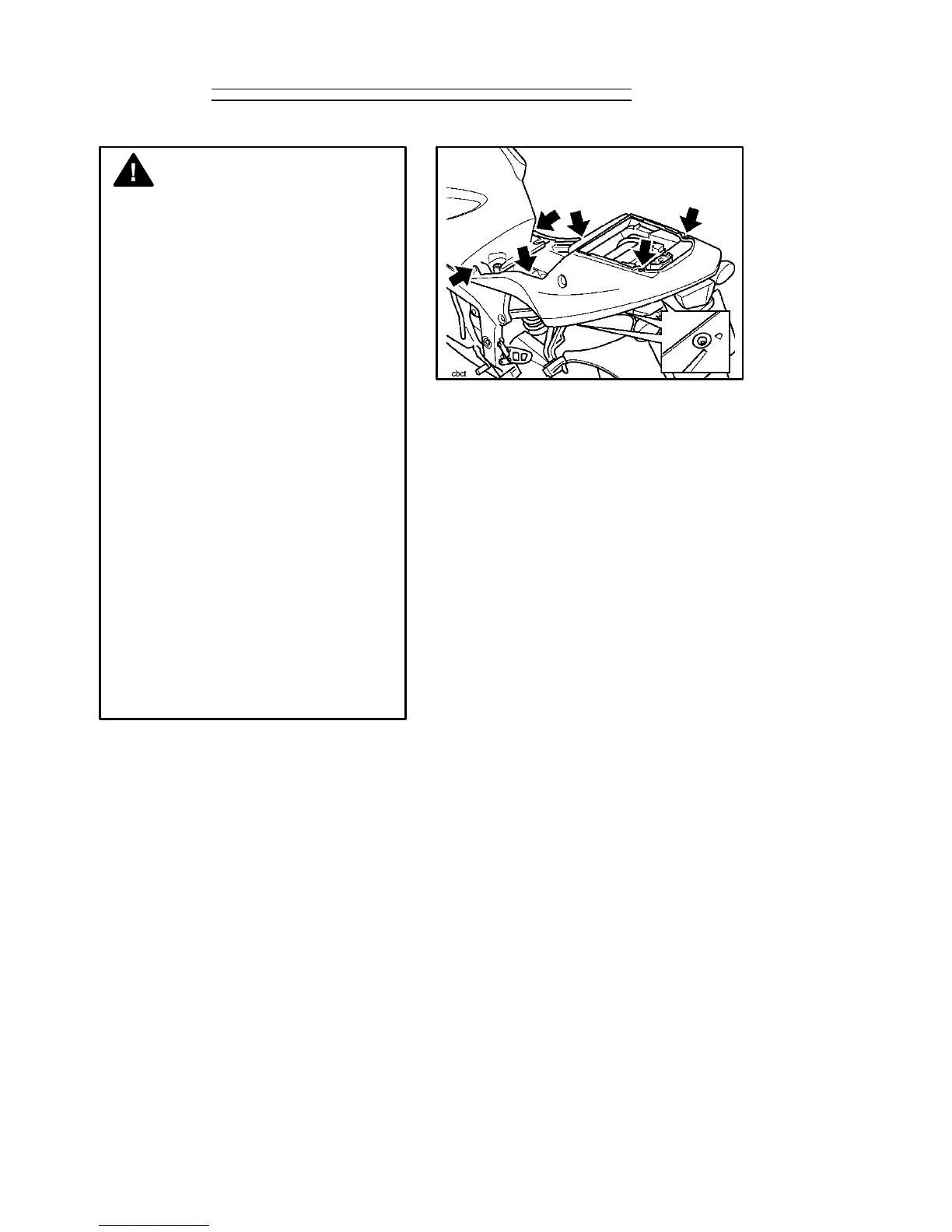

SIDE PANEL
Side Panel Removal
• Remove both seats.
• Disconnect the battery, negative
(black) lead first.
• Release the six threaded fixings and
six plastic rivets from the locations
shown in the diagram above.
• Paying attention to the routing of the
cable leading to the seat lock
mechanism, the side panel may now
be carefully lifted clear as one item.
Side Panel Refitting
• Reverse the removal procedure with
the exception of the following.
• Tighten the panel threaded fixings to
3Nm.
• Tighten the rear seat lock mechanism
fixings to 9Nm.
• Reconnect the battery positive (red)
lead first.
• Refit the seats/cover (see general
information for details).

Triumph DAYTONA 650 Specifications

General

Displacement	646 cc
Transmission	6-speed
Rear Brakes	Single 220mm disc, single-piston caliper
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Fuel System	Multipoint sequential electronic fuel injection
Engine Type	Liquid-cooled, DOHC, inline 4-cylinder
Max Torque	68 Nm @ 11, 000 rpm
Frame	Aluminum
Rear Suspension	Monoshock with adjustable preload
Front Brakes	Twin 308mm floating discs, 4-piston calipers
Seat Height	825 mm
Dry Weight	165 kg
Ignition	Digital
Final Drive	Chain
Length	2, 060 mm
Wheelbase	1395 mm
Fuel Capacity	17.5 liters (4.6 US gal)
