Maintenance and Adjustment
Page 75
Battery Installation
WARNING: Ensure that the
battery terminals do not touch
the motorcycle frame as this may
cause a short circuit or spark which
would ignite battery gases causing a
risk of personal injury.
Place the battery in the battery case.
Reconnect the battery, positive (red)
lead first.
Apply a light coat of grease to the
terminals to prevent corrosion.
Cover the positive terminal with the
protective cap.
Refit the battery strap.
Refit the seat.

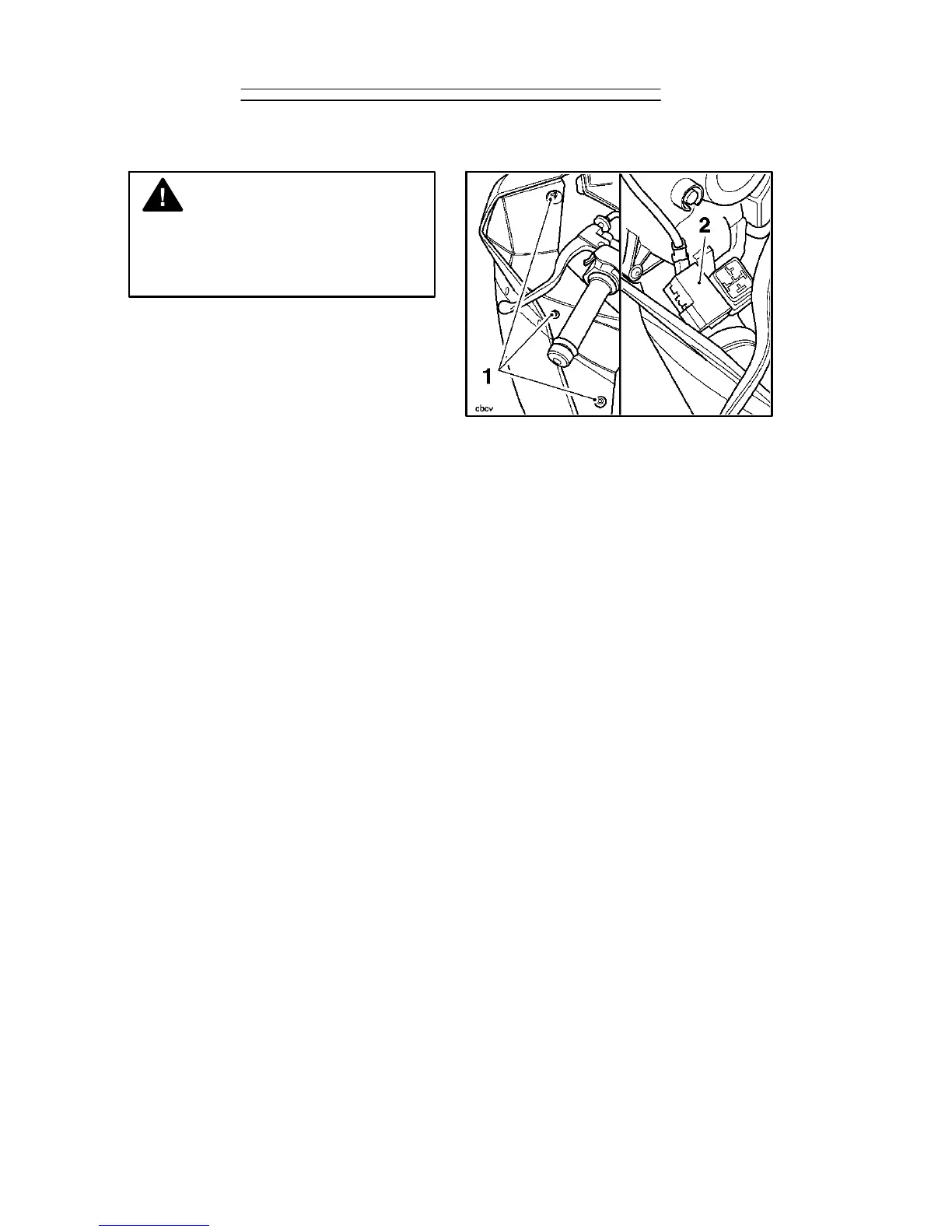

FUSE BOXES
1. Panel Fixings
2. Front Fuse Box
This motorcycleisfitted withtwo fuseboxes.
The front fuse box is located under the left
hand cockpit infill panel. The rear fuse box is
located under the passenger seat.
To allow access to the rear fuse box, the
rider s seat must be removed.
To allow access to the front fuse box, the
cockpit infill panel must be removed as
follows:
Release cockpit infill fixings shown in
diagram above.
Ensuring that the front wheel is
pointing straight ahead (which allows
space for removal), detach the panel.
Refitting is the reverse of removal.
Ensure that the cockpit infill panel is
fitted correctly and does not impede
the movement of any cables or
harnesses. T ighten the in-fill panel
screws to 3 Nm.
