Features and Controls
2

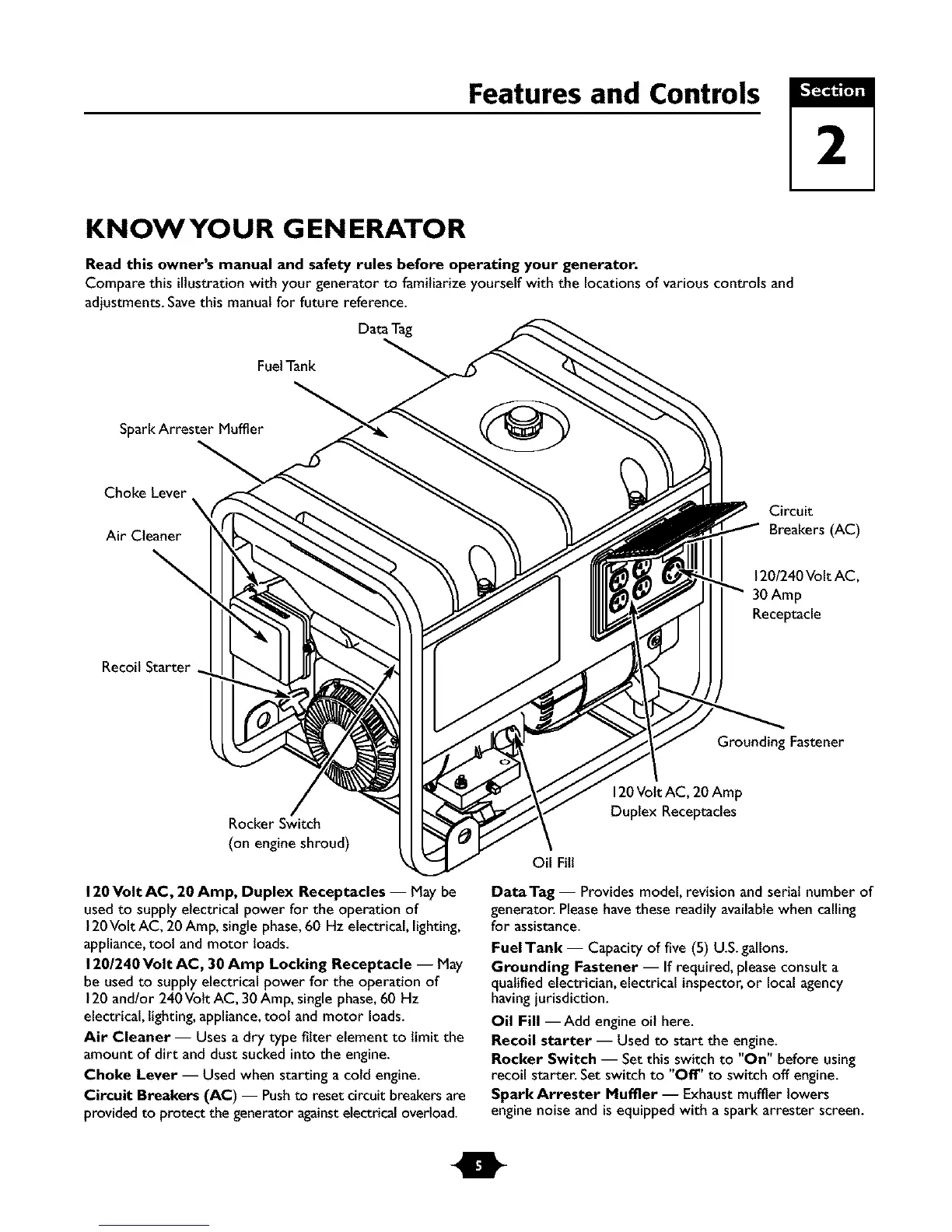

KNOWYOUR GENERATOR
Read this owner's manual and safety rules before operating your generator.
Compare this illustrationwith your generator to familiarize yourself with the locationsof variouscontrols and
adjustments.Savethis manualfor future reference.
DataTag
FuelTank
SparkArrester Muffler
Choke Lever
Air Cleaner
Circuit
Breakers (AC)
120/240Volt AC,
30 Amp
Receptacle
Recoil Starter
Grounding Fastener
Rocker Switch
(on engine shroud)
120Volt AC, 20 Amp, Duplex Receptacles -- May be
usedto supply electrical power for the operation of
120Volt AC, 20 Amp, singlephase,60 Hz electrical, lighting,
appliance,toot and motor loads.
120/240 Volt AC, 30 Amp Locking Receptacle -- May
be usedto supply electrical power for the operation of
120and/or 240Volt AC, 30Amp, single phase,60 Hz
electrical, lighting,appliance,tool and motor loads.
Air Cleaner -- Uses a dry type filter element to limit the
amount of dirt and dust sucked into the engine.
Choke Lever -- Used when starting a cold engine.
Circuit Breakers (AC) -- Pushto reset circuit breakersare
provided to protect the generator againstelectricaloverload.
120Volt AC, 20 Amp
Duplex Receptacles
Oil Fill
DataTag -- Provides model, revision and serial number of
generator. Please have these readily available when calling
for assistance.
Fuel Tank -- Capacity of five (5) U.S.gallons.
Grounding Fastener -- If required, pleaseconsult a
qualified electrician, electrical inspector, or local agency
havingjurisdiction.
Oil Fill --Add engine oil here.
Recoil starter -- Used to start the engine.
Rocker Switch -- Set this switch to "On" before using
recoil starter. Set switch to "Off" to switch off engine.
Spark Arrester Muffler -- Exhaust muffler lowers
engine noise and isequipped with a spark arrester screen.
